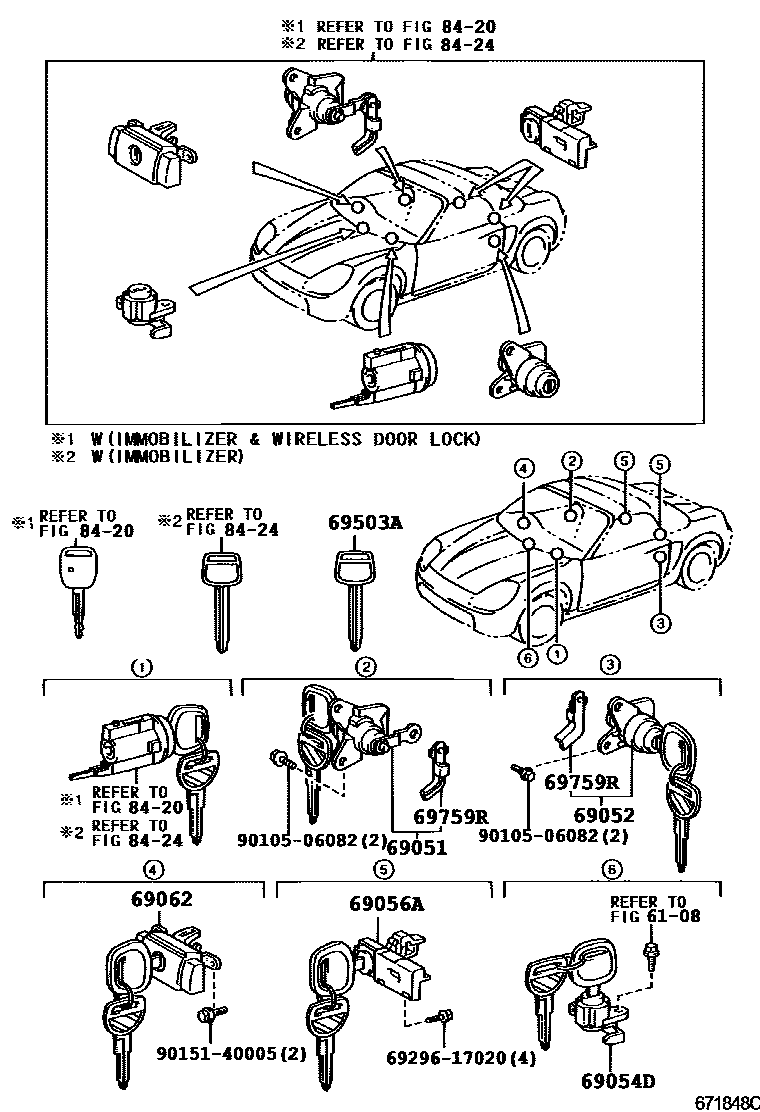

LOCK CYLINDER SET

6108

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-17110iZZW30199912-200509

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-17130iZZW30199912-200509

69054DCYLINDER & KEY SET, LUGGAGE OPENER CANCEL

main69053-17010iZZW30199912-200509

69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-17090iZZW30199912-200509

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-17080iZZW30199912-200509

69503AKEY, BLANK

main90999-00163iZZW30199912-200509

MASTER KEY

sub90999-00174

main90999-00164iZZW30200208-200509

MASTER KEY,W(*68)

sub90999-00175

main90999-00165iZZW30200208-200509

SUB KEY

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-44010iZZW30199912-200509

LH

sub69759-12080

main69759-44020iZZW30199912-200509

RH

sub69759-12090

8420

8424

6929617020SCREW, DOOR INSIDE HANDLE

main69296-17020

9010506082

main90105-06082

9015140005

main90151-40005

13 parts on this diagram · 1 diagram in section
