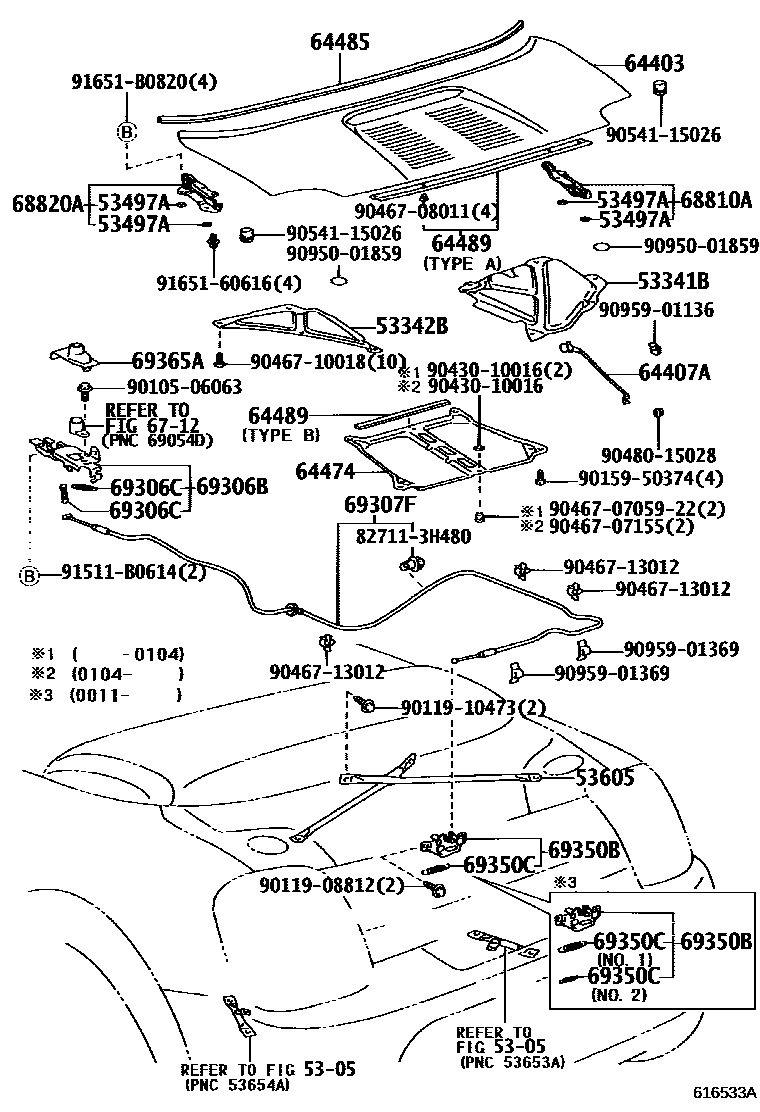

ENGINE HOOD & LOCK

5305

53341BINSULATOR, HOOD

main53341-17020iZZW30¥4,270199912-200509

53342BINSULATOR, HOOD, NO.2

main53342-17010iZZW30¥2,120199912-200509

53497APAD, HOOD HINGE, NO.1

main53497-12070iZZW30¥100199912-200509

53605BRACE SUB-ASSY, REAR SUSPENSIOM, UPPER

main53605-17030iZZW30¥7,400199912-200509

64403HOOD SUB-ASSY, ENGINE

main64403-17060iZZW30¥40,500199912-200509

sub64403-17070¥40,500

64407ASUPPORT SUB-ASSY, ENGINE HOOD

main64407-17050iZZW30¥1,090199912-200509

64474PANEL, ENGINE HOOD, INNER LOWER

main64474-17021iZZW30¥6,300199912-200509

64485SEAL, ENGINE HOOD TO UPPER BACK

main64485-17030iZZW30¥2,380199912-200308

sub64485-17031¥2,390

main64485-17031iZZW30¥2,390200308-200509

64489SEAL, ENGINE HOOD TO INTER COOLER

main64489-17020iZZW30¥1,840199912-200312

TYPE A:REFER TO ILLUSTRATION

sub64489-17021¥1,850

main64489-17021iZZW30¥1,850200312-200509

TYPE A:REFER TO ILLUSTRATION

main64489-17040iZZW30¥610200104-200509

TYPE B:REFER TO ILLUSTRATION

6712

68810AHINGE ASSY, ENGINE HOOD, RH

main68810-17050iZZW30¥3,710199912-200509

68820AHINGE ASSY, ENGINE HOOD, LH

main68820-17070iZZW30¥3,710199912-200509

69306BLEVER SUB-ASSY, ENGINE HOOD LOCK CONTROL

main69306-17040iZZW30..RHD¥5,400199912-200307

main69306-17041iZZW30..RHD¥5,300200307-200509

main69306-17050iZZW30..LHD¥5,400199912-200307

main69306-17051iZZW30..LHD¥5,400200307-200509

69306CSPRING, TORSION(FOR ENGINE HOOD LOCK CONTROL LEVER)

main90506-09004iZZW30¥200199912-200509

69307FCABLE ASSY, ENGINE HOOD LOCK CONTROL

main69307-17080iZZW30..RHD¥1,490199912-200307

main69307-17081iZZW30..RHD¥1,520200307-200509

main69307-17090iZZW30..LHD¥2,290199912-200307

main69307-17091iZZW30..LHD¥1,490200307-200509

69350BLOCK ASSY, ENGINE HOOD

main69350-17050iZZW30¥4,950199912-200011

sub69350-17051¥4,960

main69350-17051iZZW30¥4,960200011-200509

69350CSPRING, TENSION(FOR ENGINE HOOD LOCK)

main90506-09052iZZW30¥90200011-200509

NO.2

main90506-18078iZZW30..LHD199912-200011

main90506-20008iZZW30..RHD¥220199912-200011

main90506-20008iZZW30¥220200011-200509

NO.1

69365ABEZEL, ENGINE HOOD LOCK CONTROL

main69365-17030iZZW30..RHD¥770199912-200509

main69365-17040iZZW30..LHD¥760199912-200509

827113H480WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3H480¥200

9010506063

main90105-06063¥120

9011908812

main90119-08812¥160

9011910473

main90119-10473¥190

9015950374

main90159-50374¥110

9043010016

main90430-10016¥80

904670705922

main90467-0705922

9046707155

main90467-07155¥80

9046708011

main90467-08011¥100

9046710018

main90467-10018¥230

9046713012

main90467-13012¥130

9048015028

main90480-15028¥170

9054115026

main90541-15026¥320

9095001859

main90950-01859¥170

9095901136

main90959-01136¥100

9095901369

main90959-01369¥100

91511B0614

main91511-B0614¥90

9165160616

main91651-60616¥100

91651B0820

main91651-B0820¥160

38 parts on this diagram · 1 diagram in section
