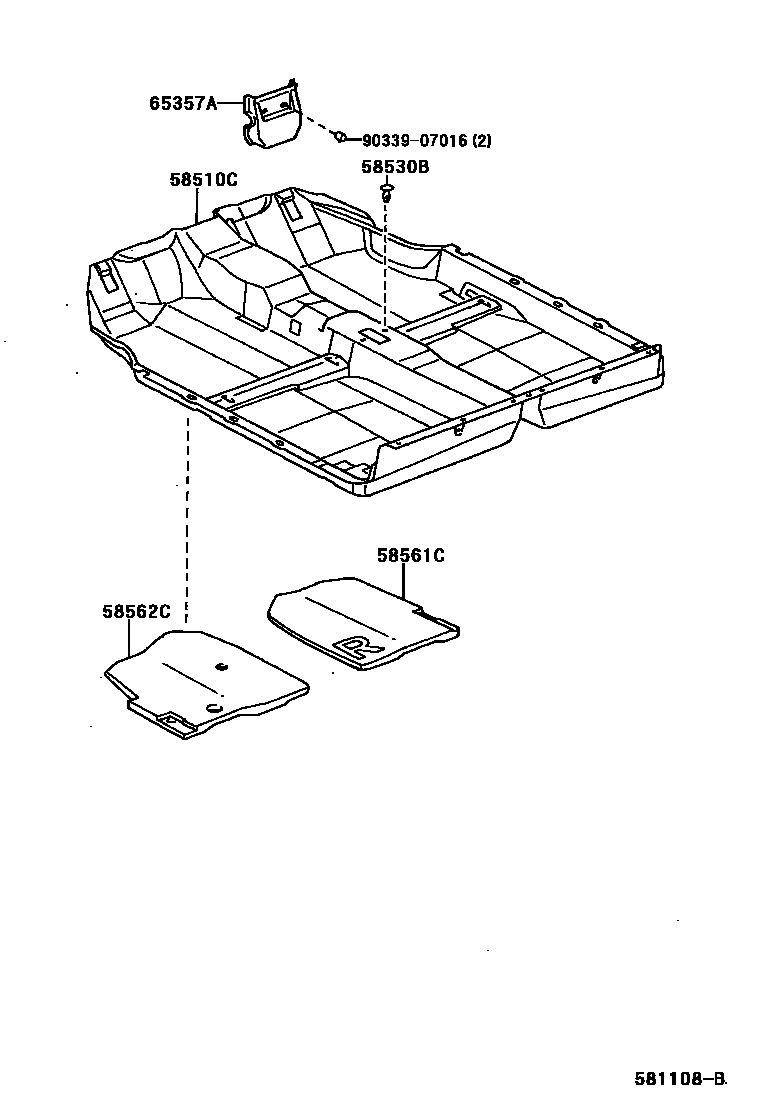

MAT & CARPET

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-17220-C0iZZW30..RHD199912-200008

BLACK,TRIM2#,3#,5#

main58510-17220-C1iZZW30..RHD200008-200208

BLACK,TRIM2#,3#,4#,5#

main58510-17221-C1iZZW30..RHD200311-200509

BLACK,TRIM1#,2#,3#

main58510-17230-C0iZZW30..LHD199912-200008

BLACK,TRIM2#,3#,5#

main58510-17230-C1iZZW30..LHD200008-200208

BLACK,TRIM2#,3#,4#,5#

main58510-17231-C1iZZW30..LHD200311-200509

BLACK,TRIM1#,2#,3#

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-09169-C0×4iZZW30199912-200208

BLACK,TRIM2#,3#,5#

58561CSILENCER, FRONT FLOOR, NO.1

main58561-17010iZZW30199912-200208

sub58561-17011

58562CSILENCER, FRONT FLOOR, NO.2

main58562-17010iZZW30199912-200208

sub58562-17011

65357ACOVER, FLOOR BOARD

main65357-17010iZZW30..EUR199912-200208

9033907016

main90339-07016

6 parts on this diagram · 1 diagram in section
