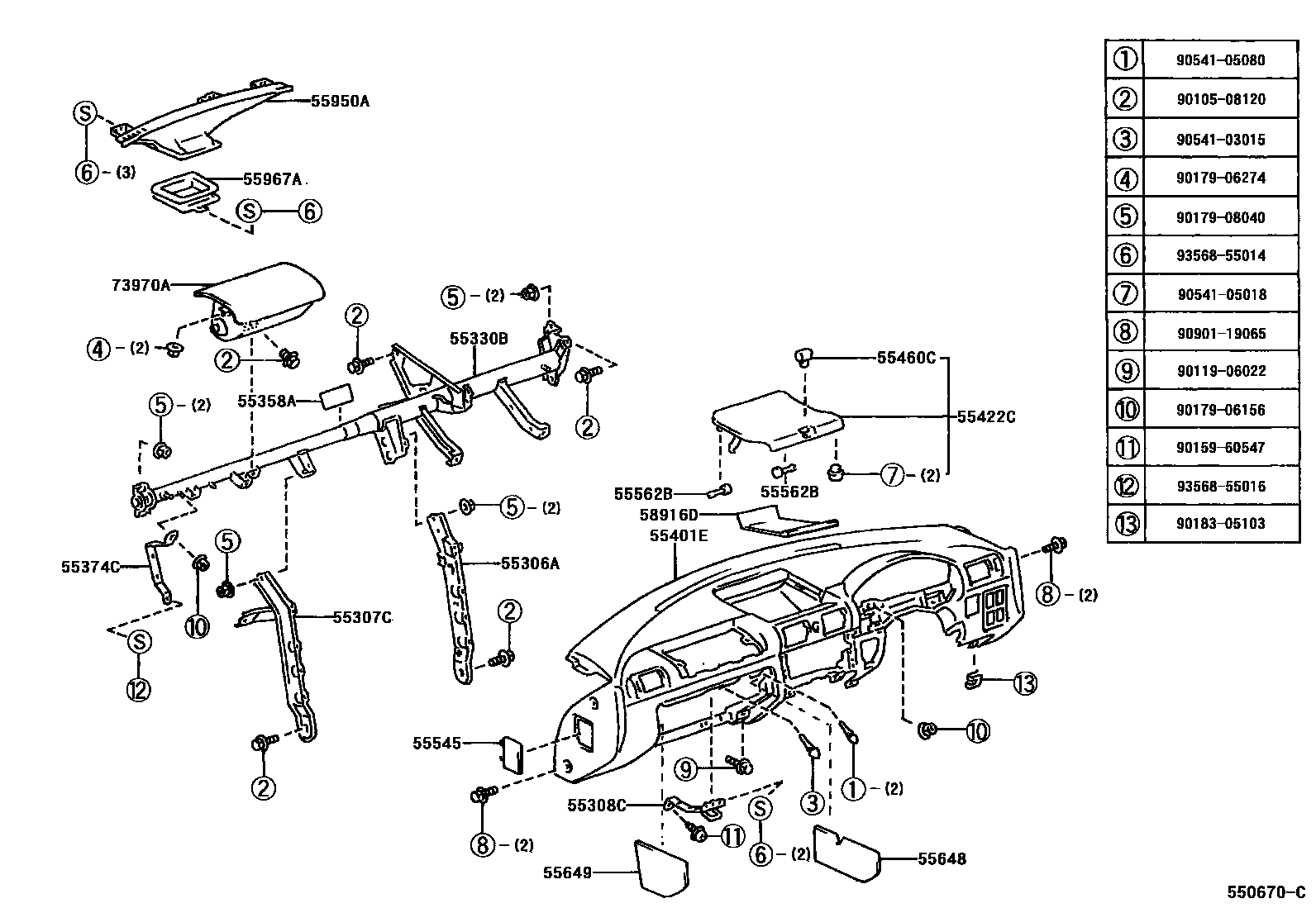

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-17060iZZW30..RHD199912-200208

main55306-17070iZZW30..LHD199912-200208

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-17060iZZW30..RHD200208-200509

main55307-17070iZZW30..LHD199912-200208

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-17010iZZW30199912-200208

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-17100iZZW30..RHD..6F200208-200402

main55330-17110iZZW30..RHD..6FS200311-200402

main55330-17120iZZW30..LHD200208-200311

main55330-17130iZZW30..RHD..6F200402-200405

main55330-17131iZZW30..RHD..6F200406-200509

main55330-17140iZZW30..RHD..6FS200402-200509

main55330-17170iZZW30..LHD200402-200509

55358APROTECTOR, EDGE, NO.2

main55358-17010iZZW30199912-200208

55374CBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1

main55374-17030iZZW30199912-200208

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55311-17060-C0iZZW30..RHD199912-200008

BLACK,TRIM2#,3#,5#

main55311-17061-C0iZZW30..RHD200008-200208

BLACK,TRIM2#,3#,4#,5#

main55311-17070-C0iZZW30..LHD199912-200008

BLACK,TRIM2#,3#,5#

main55311-17071-C0iZZW30..LHD200208-200509

BLACK,TRIM1#,2#,3#,4#

55422CPANEL, INSTRUMENT CLUSTER FINISH, CENTER UPPER

main55422-17030-C0iZZW30199912-200008

BLACK,TRIM2#,3#,5#

main55422-17031-C0iZZW30200008-200208

BLACK,TRIM2#,3#,4#,5#

55460CLOCK ASSY, INSTRUMENT PANEL BOX

main55460-17020-C0iZZW30200008-200208

BLACK,TRIM2#,3#,4#,5#

55545COVER, FUSE BOX OPENING

main55545-17010-C0iZZW30199912-200008

BLACK,TRIM2#,3#,5#

55562BPIN, GLOVE COMPARTMENT DOOR LOCK

main55562-10010×2iZZW30200208-200509

55648SEAL, INSTRUMENT PANEL UNDER COVER, NO.1

main55648-17010iZZW30..RHD199912-200208

main55648-17020iZZW30..LHD199912-200208

55649SEAL, INSTRUMENT PANEL UNDER COVER, NO.2

main55649-17010iZZW30..RHD199912-200208

main55649-17020iZZW30..LHD199912-200208

55950ANOZZLE ASSY, DEFROSTER

main55950-17050iZZW30..RHD199912-200208

main55950-17060iZZW30..LHD199912-200208

55967ANOZZLE, DEFROSTER, LOWER

main55967-17030iZZW30..RHD199912-200208

main55967-17040iZZW30..LHD199912-200208

58916DMAT, BOX BOTTOM

main58916-17010iZZW30199912-200208

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-17030-C0iZZW30..RHD199912-200008

BLACK,TRIM2#,3#,5#

main73970-17031-C0iZZW30..RHD200008-200208

BLACK,TRIM2#,3#,4#,5#

main73970-17040-C0iZZW30..LHD199912-200008

BLACK,TRIM2#,3#,5#

main73970-17041-C0iZZW30..LHD200008-200208

BLACK,TRIM2#,3#,4#,5#

9010508120

main90105-08120

9011906022

main90119-06022

9015960547

main90159-60547

9017906156

main90179-06156

9017906274

main90179-06274

9017908040

main90179-08040

9018305103

main90183-05103

9054103015

main90541-03015

9054105018

main90541-05018

9054105080

main90541-05080

9090119065

main90901-19065

9356855014

main93568-55014

9356855016

main93568-55016

30 parts on this diagram · 4 diagrams in section
