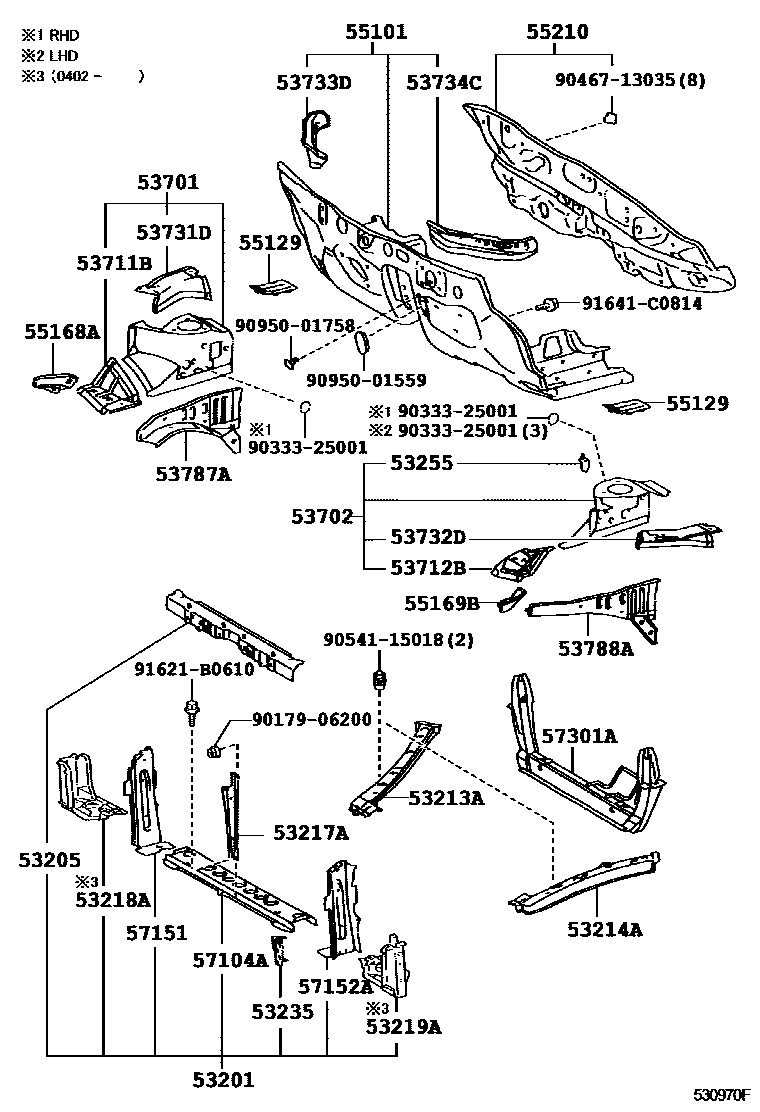

FRONT FENDER APRON & DASH PANEL

53201SUPPORT SUB-ASSY, RADIATOR

main53201-17010iZZW30..RHD199912-200402

main53201-17020iZZW30..LHD199912-200402

main53201-17030iZZW30..RHD200402-200509

main53201-17040iZZW30..LHD200402-200509

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53216-17900iZZW30..RHD199912-200509

main53216-17901iZZW30..LHD199912-200509

53213ASUPPORT, RADIATOR, UPPER RH

main53213-17040iZZW30199912-200509

53214ASUPPORT, RADIATOR, UPPER LH

main53214-17040iZZW30199912-200509

53217ABRACE, HOOD LOCK SUPPORT

main53215-17030iZZW30199912-200509

53218ASUPPORT, RADIATOR, LOWER

main53028-17010iZZW30200402-200509

53219ASUPPORT, RADIATOR, LOWER REAR

main53029-17010iZZW30200402-200509

53235BRACKET, HORN MOUNTING

main53235-17010iZZW30199912-200402

main53235-17021iZZW30200403-200509

53255BRACKET, RELAY BOX MOUNTING

main53255-17010iZZW30199912-200509

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-17900iZZW30..6FS200208-200402

main53701-17901iZZW30199912-200402

sub53701-17900

main53701-17902iZZW30..6FS200402-200509

main53701-17903iZZW30..6F200402-200509

sub53701-17902

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-17900iZZW30199912-200402

main53702-17901iZZW30200402-200509

53711BAPRON, FRONT FENDER, FRONT RH

main53711-17040iZZW30199912-200509

53712BAPRON, FRONT FENDER, FRONT LH

main53712-17040iZZW30199912-200509

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-17030iZZW30199912-200402

sub53731-17040

main53731-17040iZZW30200402-200509

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-17030iZZW30199912-200402

sub53732-17040

main53732-17040iZZW30200402-200509

53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH

main53733-17010iZZW30199912-200509

53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH

main53734-17010iZZW30199912-200509

53787AGUSSET, FRONT FENDER APRON, LOWER RH

main53707-17030iZZW30199912-200312

sub53707-17040

main53707-17040iZZW30200312-200509

53788AGUSSET, FRONT FENDER APRON, LOWER LH

main53708-17030iZZW30199912-200312

sub53708-17040

main53708-17040iZZW30200312-200509

55101PANEL SUB-ASSY, DASH

main55101-17900iZZW30..RHD..5FS200008-200208

sub55101-17904

main55101-17901iZZW30..LHD..5FS200008-200509

sub55101-17903

sub90333-15002

sub90333-40001

main55101-17902iZZW30..RHD..5F199912-200208

sub55101-17905

main55101-17903iZZW30..LHD..5F199912-200509

main55101-17904iZZW30..RHD..6FS200208-200509

sub55101-17905

sub90333-15002

sub90333-40001

main55101-17905iZZW30..RHD..6F200208-200509

55129COVER, DASH PANEL HOLE

main55129-17010iZZW30199912-200509

55168ABRACKET, FRONT FENDER MOUNTING, RH

main55168-17010iZZW30199912-200509

55169BBRACKET, FRONT FENDER MOUNTING, LH

main55169-17010iZZW30199912-200509

55210INSULATOR ASSY, DASH PANEL

main55210-17050iZZW30..RHD199912-200308

sub55210-17051

main55210-17051iZZW30..RHD200308-200509

main55210-17060iZZW30..LHD199912-200308

sub55210-17061

main55210-17061iZZW30..LHD200308-200509

57104AMEMBER SUB-ASSY, FRONT CROSS

main57161-17040iZZW30199912-200509

57151REINFORCEMENT, FRONT SIDE MEMBER, NO.1

main57151-17030iZZW30199912-200402

sub57151-17031

main57151-17040iZZW30200402-200509

57152AREINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH

main57152-17030iZZW30199912-200402

sub57152-17031

main57152-17040iZZW30200402-200509

57301AMEMBER SUB-ASSY, STEERING GEAR BOX SUPPORT

main57301-17080iZZW30..RHD199912-200509

main57301-17090iZZW30..LHD199912-200509

9017906200

main90179-06200

9033325001

main90333-25001

9046713035

main90467-13035

9054115018

main90541-15018

9095001559

main90950-01559

9095001758

main90950-01758

91621B0610

main91621-B0610

91641C0814

main91641-C0814

36 parts on this diagram · 1 diagram in section
