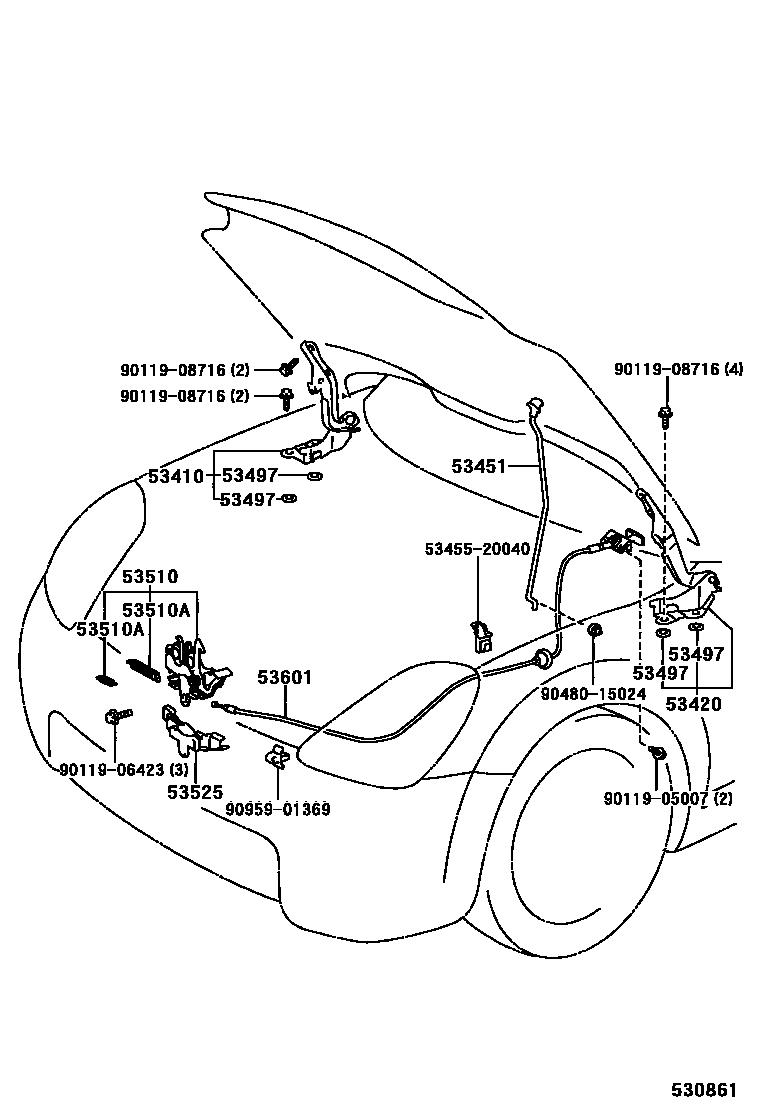

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-17050iZZW30199912-200509

53420HINGE ASSY, HOOD, LH

main53420-17050iZZW30199912-200509

53451ROD, HOOD SUPPORT

main53440-17030iZZW30199912-200509

53497PAD, HOOD HINGE, NO.1

main53497-12050iZZW30199912-200208

T=1.0

sub53497-42010

main53497-12070iZZW30199912-200208

T=0.5

main53497-42010iZZW30200208-200509

T=0.5

53510LOCK ASSY, HOOD

main53510-17100iZZW30..LHD199912-200509

main53510-17110iZZW30..RHD199912-200509

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09050iZZW30199912-200509

WD=0.9,CW=20.5

main90506-18080iZZW30199912-200509

WD=1.8,CW=19

53525PROTECTOR, HOOD LOCK RELEASE LEVER

main53525-32040iZZW30199912-200509

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-17020iZZW30199912-200509

5345520040CLAMP, HOOD SUPPORT ROD

main53455-20040

9011905007

main90119-05007

9011906423

main90119-06423

9011908716

main90119-08716

9048015024

main90480-15024

9095901369

main90959-01369

14 parts on this diagram · 1 diagram in section
