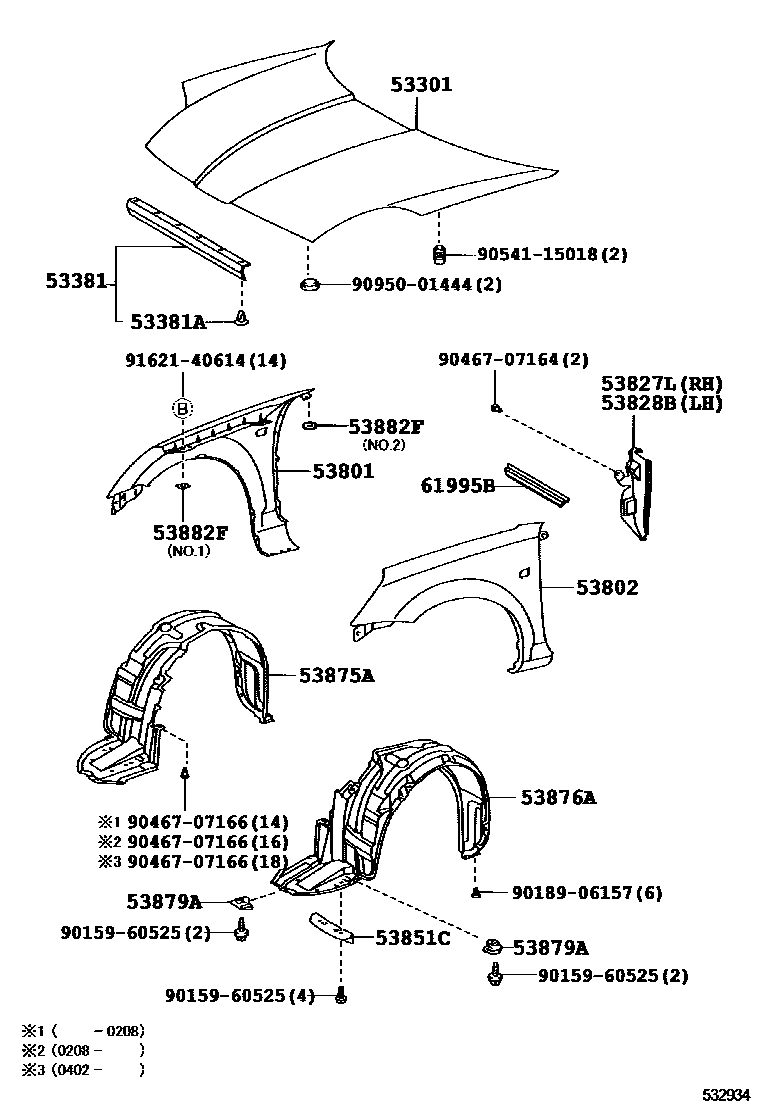

HOOD & FRONT FENDER

53301HOOD SUB-ASSY

main53301-17040iZZW30¥45,800199912-200509

sub53301-17070¥45,800

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-17020iZZW30¥1,010199912-200402

sub53381-17030¥1,020

main53381-17030iZZW30¥1,020200403-200509

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iZZW30¥100199912-200509

53801FENDER SUB-ASSY, FRONT RH

main53811-17090iZZW30¥32,500199912-200509

53802FENDER SUB-ASSY, FRONT LH

main53812-17100iZZW30¥32,500199912-200509

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-17030iZZW30..LHD¥1,600199912-200509

53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-17030iZZW30..LHD¥1,600199912-200509

53851CPAD, FRONT WHEEL OPENING EXTENSION, NO.1

main53851-47010iZZW30¥940199912-200509

53875ALINER, FRONT FENDER, RH

main53805-17020iZZW30¥5,800199912-200208

main53805-17030iZZW30¥5,800200208-200402

main53805-17031iZZW30¥5,900200402-200509

53876ALINER, FRONT FENDER, LH

main53806-17020iZZW30¥5,800199912-200208

main53806-17030iZZW30¥5,800200208-200402

main53806-17031iZZW30¥5,900200402-200509

53879ARETAINER, FRONT FENDER LINER

main53879-16010iZZW30¥220199912-200208

53882FSEAL, FRONT FENDER

main53882-16030iZZW30¥60199912-200509

NO.1

main61667-12100iZZW30¥110199912-200509

NO.2

61995BDAM, FRONT BODY PILLAR, OUTER

main61995-17010iZZW30..LHD¥370199912-200509

9015960525

main90159-60525¥110

9018906157

main90189-06157¥80

9046707164

main90467-07164¥120

9046707166

main90467-07166¥90

9054115018

main90541-15018¥360

9095001444

main90950-01444¥280

9162140614

main91621-40614¥80

20 parts on this diagram · 1 diagram in section
