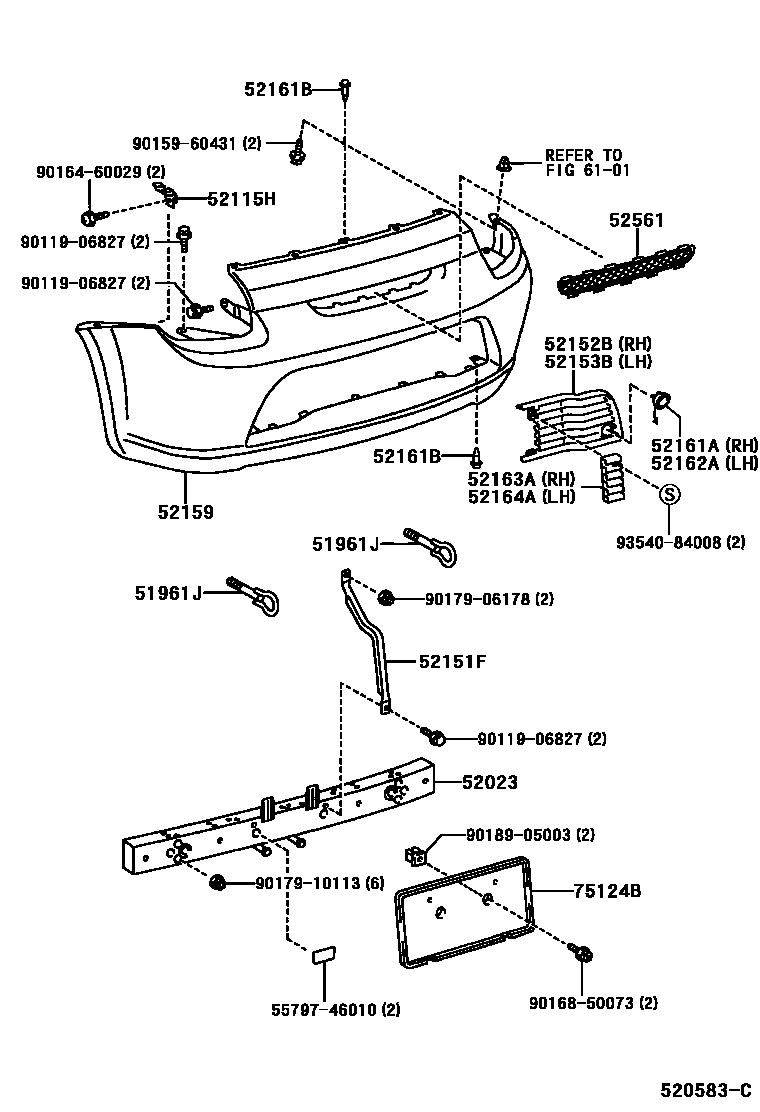

REAR BUMPER & BUMPER STAY

0001 1 0002 1

51961JHOOK, REAR

main51093-17021×2iZZW30199912-200208

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-17060iZZW30199912-200208

main52023-17061iZZW30200402-200509

52115HSUPPORT, REAR BUMPER SIDE

main52115-17020×2iZZW30199912-200208

52151FSTAY, REAR BUMPER

main52151-17010×2iZZW30199912-200208

52152BEXTENSION, REAR BUMPER, RH

main52152-17020iZZW30199912-200208

main52152-17030-A0iZZW30200208-200509

SUPER WHITE 2,040

main52152-17030-B0iZZW30200208-200509

GRAY M.M.,1E3

main52152-17030-B1iZZW30200208-200509

SILVER M.M.,1E7

main52152-17030-C0iZZW30200208-200509

BLACK,202

main52152-17030-D0iZZW30200208-200509

SUPER RED 5,3P0

main52152-17030-F0iZZW30200208-200509

SUPER BRIGHT YELLOW,576

main52152-17030-G0iZZW30200208-200509

DARK GREEN MC.,6R4

main52152-17030-J0iZZW30200208-200509

BLUE MC.,8M6

main52152-17030-J1iZZW30..ARL200208-200509

LT.BLUE M.M.,8R2

main52152-17900iZZW30200208-200509

UNPAINTED

52153BEXTENSION, REAR BUMPER, LH

main52153-17020iZZW30199912-200208

main52153-17030-A0iZZW30200208-200509

SUPER WHITE 2,040

main52153-17030-B0iZZW30200208-200509

GRAY M.M.,1E3

main52153-17030-B1iZZW30200208-200509

SILVER M.M.,1E7

main52153-17030-C0iZZW30200208-200509

BLACK,202

main52153-17030-D0iZZW30200208-200509

SUPER RED 5,3P0

main52153-17030-F0iZZW30200208-200509

SUPER BRIGHT YELLOW,576

main52153-17030-G0iZZW30200208-200509

DARK GREEN MC.,6R4

main52153-17030-J0iZZW30200208-200509

BLUE MC.,8M6

main52153-17030-J1iZZW30..ARL200208-200509

LT.BLUE M.M.,8R2

main52153-17900iZZW30200208-200509

UNPAINTED

52159COVER, REAR BUMPER

main52159-17910iZZW30199912-200208

52161APIECE, REAR BUMPER, RH

main52161-17010iZZW30199912-200208

main52161-17020iZZW30200208-200509

52161BPIECE, REAR BUMPER

main52161-16010×8iZZW30199912-200208

sub52161-0K040

52162APIECE, REAR BUMPER, LH

main52162-17010iZZW30199912-200208

main52162-17020iZZW30200208-200509

52163APLATE, REAR BUMPER, RH

main52163-17010iZZW30..ARL200008-200208

main52163-17020iZZW30..ARL200208-200509

52164APLATE, REAR BUMPER, LH

main52164-17010iZZW30..ARL200008-200208

main52164-17020iZZW30..ARL200208-200509

52561RETAINER, REAR BUMPER, UPPER CENTER

main52561-17030iZZW30199912-200208

6101

75124BBRACKET, REAR LICENSE PLATE SUPPORT

main75124-17010iZZW30..EUR199912-200208

main75124-17020iZZW30..ARL200112-200208

5579746010HOLDER, COWL VENTILATOR LOUVER

main55797-46010

9011906827

main90119-06827

9015960431

main90159-60431

9016460029

main90164-60029

9016850073

main90168-50073

9017906178

main90179-06178

9017910113

main90179-10113

9018905003

main90189-05003

9354084008

main93540-84008

24 parts on this diagram · 2 diagrams in section
