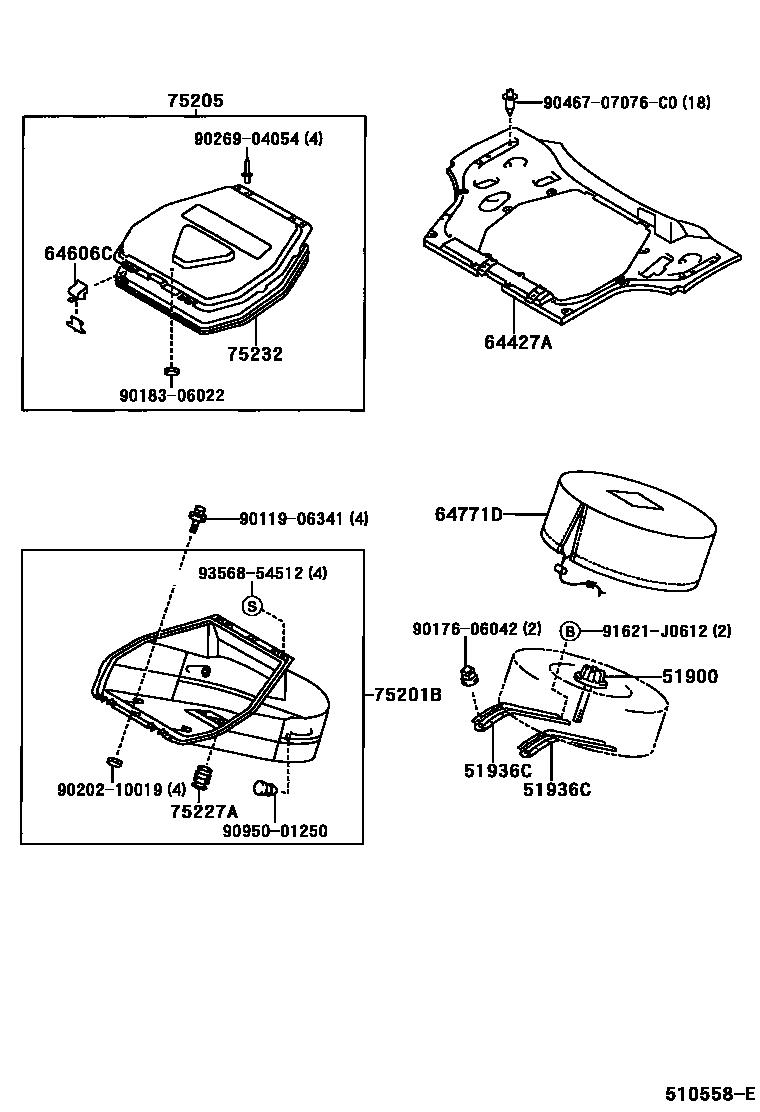

SPARE WHEEL CARRIER

51900CARRIER ASSY, SPARE WHEEL

main51931-17010iZZW30199912-200509

51936CEXTENSION, SPARE WHEEL CARRIER

main51936-17010iZZW30199912-200509

64427ACOVER, LUGGAGE COMPARTMENT TRIM BOX

main64427-17010iZZW30..RHD199912-200001

sub64427-17011

main64427-17011iZZW30..RHD200001-200509

main64427-17021iZZW30..LHD199912-200509

64606CLEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN

main64606-17030iZZW30199912-200001

sub64606-17031

main64606-17031iZZW30200001-200509

64771DCOVER, SPARE WHEEL

main64771-17020iZZW30199912-200509

75201BBOX SUB-ASSY, TOOL, NO.1

main75201-17010iZZW30199912-200001

sub75201-17011

main75201-17011iZZW30200001-200509

75205BOX SUB-ASSY, TOOL, NO.2

main75205-17010iZZW30199912-200001

sub75205-17011

main75205-17011iZZW30200001-200509

75227ACUSHION, TOOL BOX

main75227-17010iZZW30199912-200509

75232SEAL, TOOL BAG BOX

main75232-17010iZZW30199912-200509

9011906341

main90119-06341

9017606042

main90176-06042

9018306022

main90183-06022

9020210019

main90202-10019

9026904054

main90269-04054

9046707076C0

main90467-07076C0

9095001250

main90950-01250

91621J0612

main91621-J0612

9356854512

main93568-54512

18 parts on this diagram · 1 diagram in section
