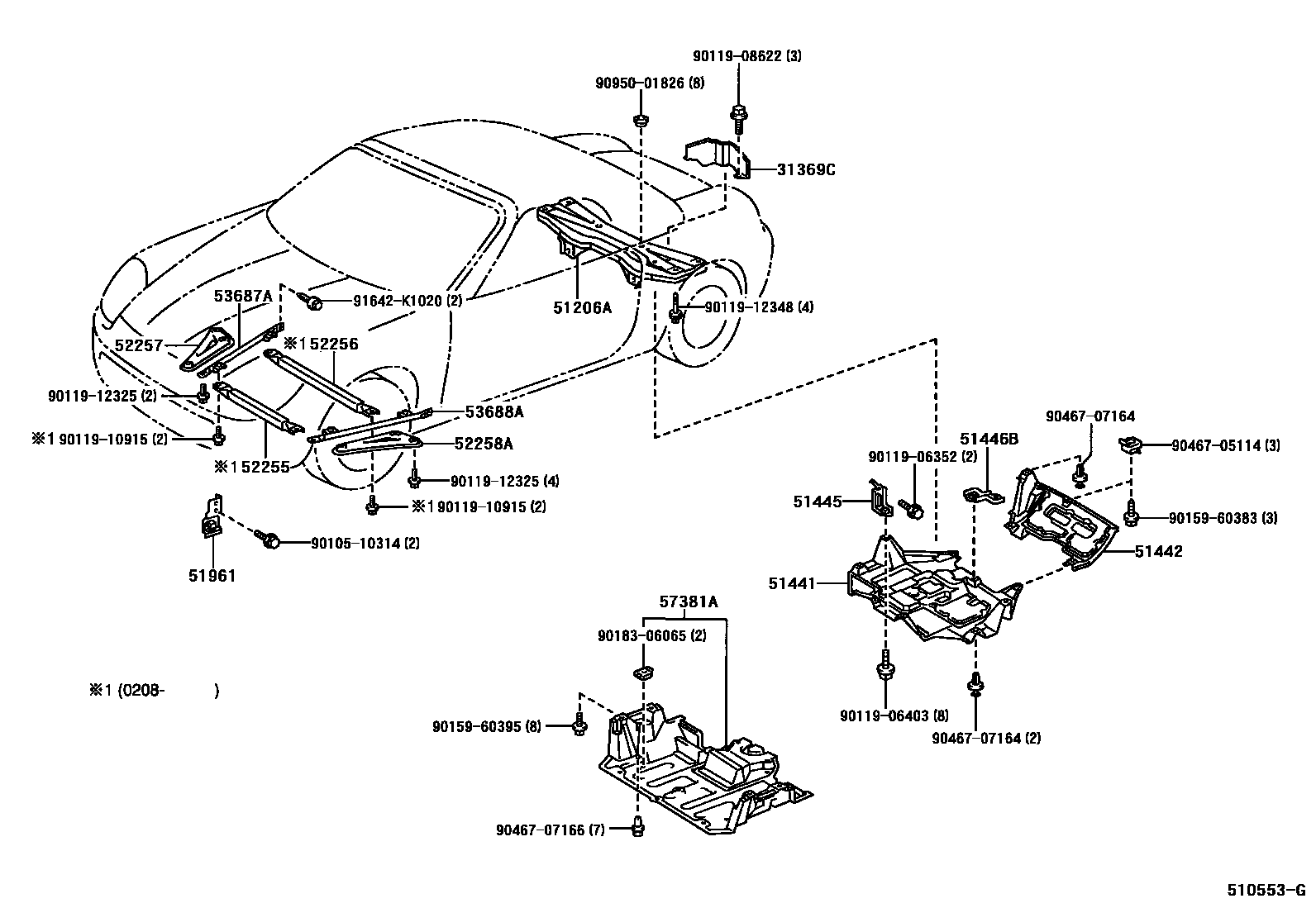

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

31369CINSULATOR, TRANSAXLE HEAT

main31369-17010iZZW30199912-200509

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-17030iZZW30199912-200208

main51206-17040iZZW30200208-200509

51441COVER, ENGINE UNDER, NO.1

main51405-17020iZZW30199912-200208

sub51405-17040

main51405-17030iZZW30200208-200509

51442COVER, ENGINE UNDER, NO.2

main51406-17010iZZW30199912-200208

sub51406-17030

main51406-17020iZZW30200208-200509

51445BRACKET, ENGINE UNDER COVER

main51445-17020iZZW30199912-200509

51446BBRACKET, ENGINE UNDER COVER, NO.2

main51446-17020iZZW30199912-200509

51961HOOK, NO.1

main51962-17031iZZW30199912-200509

52255BRACE, FRONT SUSPENSION MEMBER, FRONT RH

main52255-17010iZZW30200208-200401

52256BRACE, FRONT SUSPENSION MEMBER, FRONT LH

main52256-17010iZZW30200208-200401

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-17010iZZW30199912-200401

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-17010iZZW30199912-200401

53687ABRACE, FRONT SUSPENSION LOWER TO CROSSMEMBER, RH

main51403-17020iZZW30200208-200401

main53687-17020iZZW30199912-200208

53688ABRACE, FRONT SUSPENSION LOWER TO CROSSMEMBER, LH

main51404-17010iZZW30200208-200401

main53688-17020iZZW30199912-200208

57381ACOVER, FRONT LUGGAGE UNDER

main57381-17020iZZW30199912-200401

main57381-17030iZZW30..LHD199912-200401

COLD SPEC

main57381-17040iZZW30200401-200509

main57381-17050iZZW30..LHD200401-200509

COLD SPEC

9010510314

main90105-10314

9011906352

main90119-06352

9011906403

main90119-06403

9011908622

main90119-08622

9011910915

main90119-10915

9011912325

main90119-12325

9011912348

main90119-12348

9015960383

main90159-60383

9015960395

main90159-60395

9018306065

main90183-06065

9046705114

main90467-05114

9046707164

main90467-07164

9046707166

main90467-07166

9095001826

main90950-01826

91642K1020

main91642-K1020

29 parts on this diagram · 2 diagrams in section
