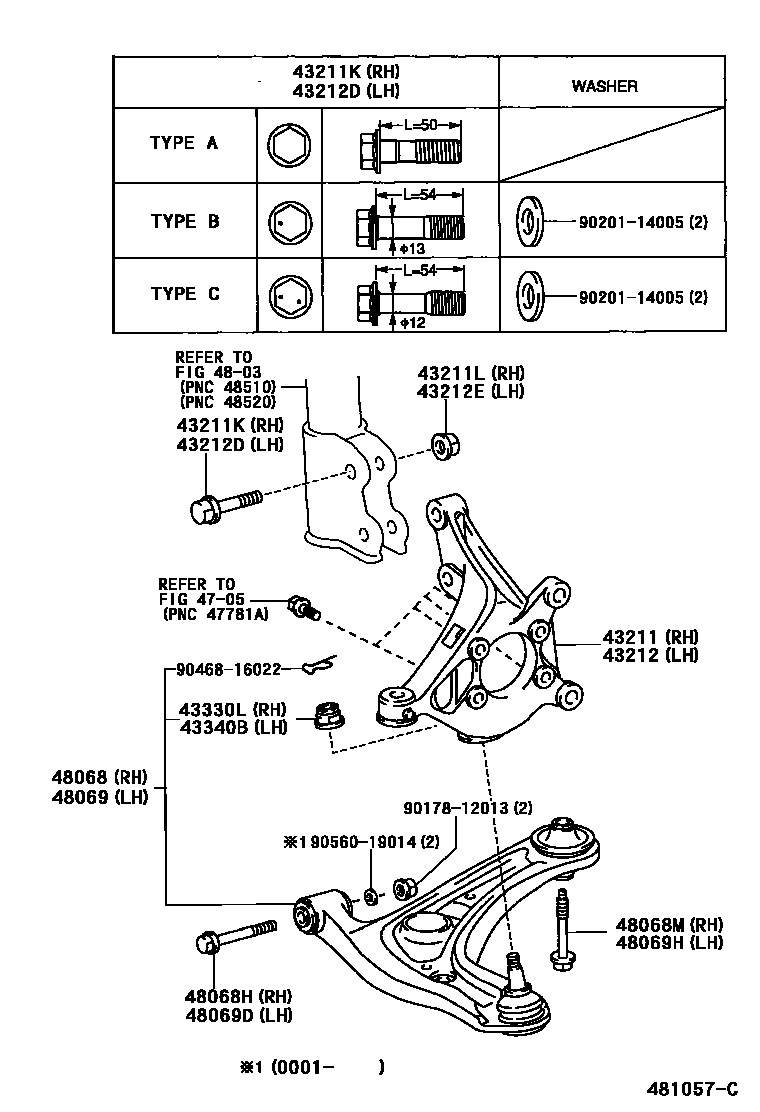

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-17110iZZW30199912-200509

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-14140iZZW30199912-200509

OD=14,TYPE A:REFER TO ILLUSTRATION

main90105-14146iZZW30199912-200509

OD=13,TYPE B:REFER TO ILLUSTRATION

main90105-14147iZZW30199912-200509

OD=12,TYPE C:REFER TO ILLUSTRATION

43211LNUT (FOR STEERING KNUCKLE RH)

main90179-14062iZZW30199912-200509

43212KNUCKLE, STEERING, LH

main43212-17110iZZW30199912-200509

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-14140iZZW30199912-200509

OD=14,TYPE A:REFER TO ILLUSTRATION

main90105-14146iZZW30199912-200509

OD=13,TYPE B:REFER TO ILLUSTRATION

main90105-14147iZZW30199912-200509

OD=12,TYPE C:REFER TO ILLUSTRATION

43212ENUT (FOR STEERING KNUCKLE LH)

main90179-14062iZZW30199912-200509

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-12007iZZW30199912-200509

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-12007iZZW30199912-200509

4705

4803

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-19175iZZW30199912-200001

sub48068-19176

main48068-19176iZZW30200001-200509

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90119-12338iZZW30199912-200509

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90119-12333iZZW30199912-200509

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-19155iZZW30199912-200001

sub48069-19156

main48069-19156iZZW30200001-200509

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90119-12338iZZW30199912-200509

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90119-12333iZZW30199912-200509

9017812013

main90178-12013

9020114005

main90201-14005

9046816022

main90468-16022

9056019014

main90560-19014

20 parts on this diagram · 1 diagram in section
