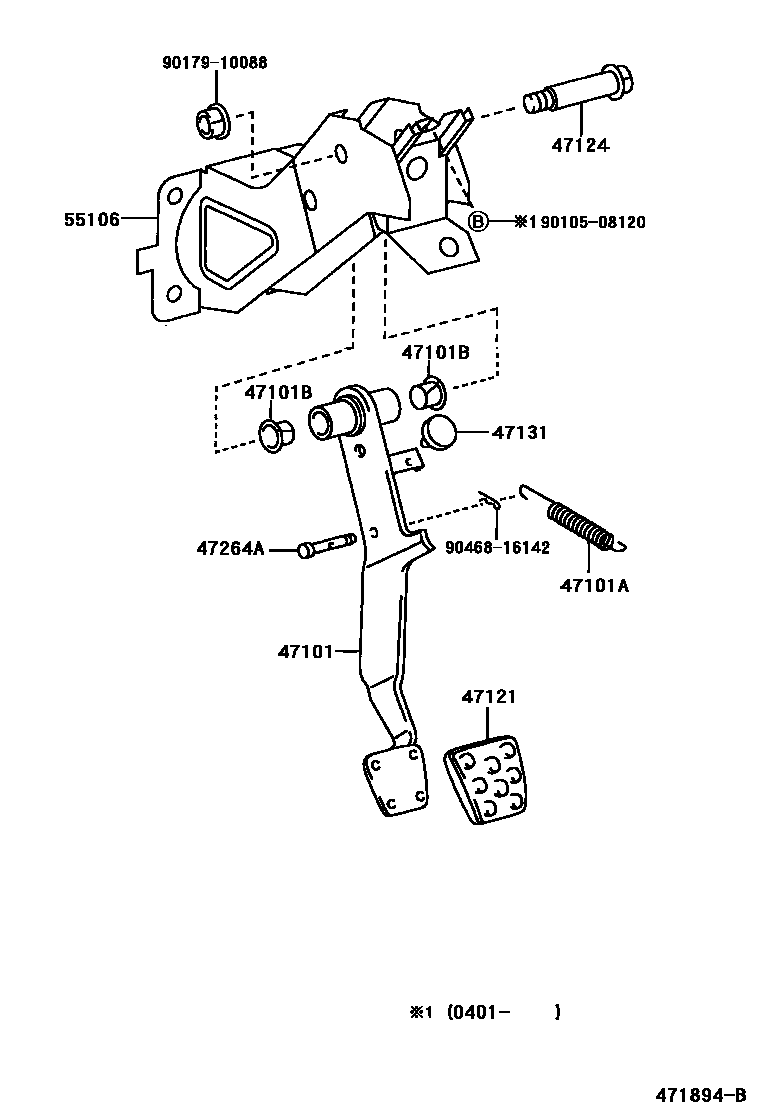

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101PEDAL SUB-ASSY, BRAKE

main47101-17110iZZW30..RHD¥2,380199912-200509

main47101-17120iZZW30..LHD¥2,620199912-200509

main47101-17130iZZW30..RHD..6FS¥2,790200208-200509

main47101-17140iZZW30..LHD..6FS¥2,790200208-200509

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-14041iZZW30¥290199912-200509

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iZZW30¥120199912-200509

47121PAD, BRAKE PEDAL

main31321-53010iZZW30¥2,330199912-200509

main47121-53010iZZW30..6FS¥3,330200208-200509

47124SHAFT, BRAKE PEDAL

main90109-10167iZZW30¥190199912-200509

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iZZW30¥110199912-200509

47264APIN(FOR PUSH ROD)

main90249-08286iZZW30¥220199912-200509

sub47148-20020¥350

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-17050iZZW30..RHD¥2,660199912-200202

sub55106-17051¥2,690

main55106-17051iZZW30..RHD¥2,690200202-200509

main55106-17060iZZW30..LHD¥3,370199912-200202

sub55106-17061¥3,370

main55106-17061iZZW30..LHD¥3,370200202-200401

9010508120

main90105-08120¥90

9017910088

main90179-10088¥100

9046816142

main90468-16142¥70

11 parts on this diagram · 2 diagrams in section
