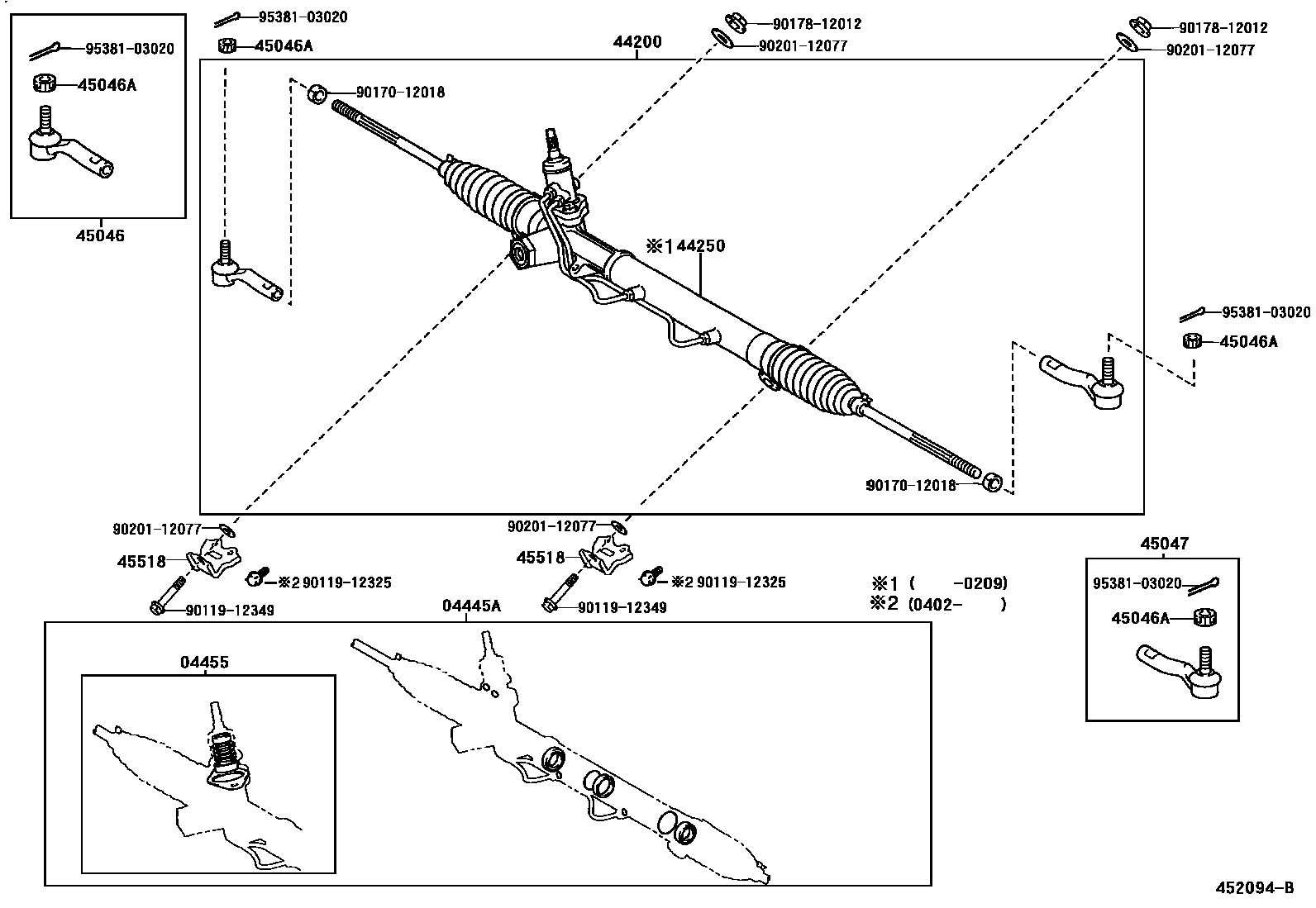

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-17020iZZW30199912-200509

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-17020iZZW30199912-200509

44200LINK ASSY, POWER STEERING

main44200-17071iZZW30..RHD200208-200509

sub44250-17071

sub45046-19206

sub90170-12018

main44200-17081iZZW30..LHD200208-200509

sub44250-17081

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-17070iZZW30..RHD199912-200005

sub44250-17071

main44250-17071iZZW30..RHD200005-200509

main44250-17080iZZW30..LHD199912-200005

sub44250-17081

main44250-17081iZZW30..LHD200005-200209

45046END SUB-ASSY, TIE ROD, RH

main45046-19206iZZW30199912-200509

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iZZW30199912-200509

45047END SUB-ASSY, TIE ROD, LH

main45046-19206iZZW30199912-200509

45518BRACKET, STEERING RACK HOUSING, NO.3

main45518-17010iZZW30199912-200402

main45518-17020iZZW30200402-200509

9011912325

main90119-12325

9011912349

main90119-12349

9017012018

main90170-12018

9017812012

main90178-12012

9020112077

main90201-12077

9538103020

main95381-03020

14 parts on this diagram · 4 diagrams in section
