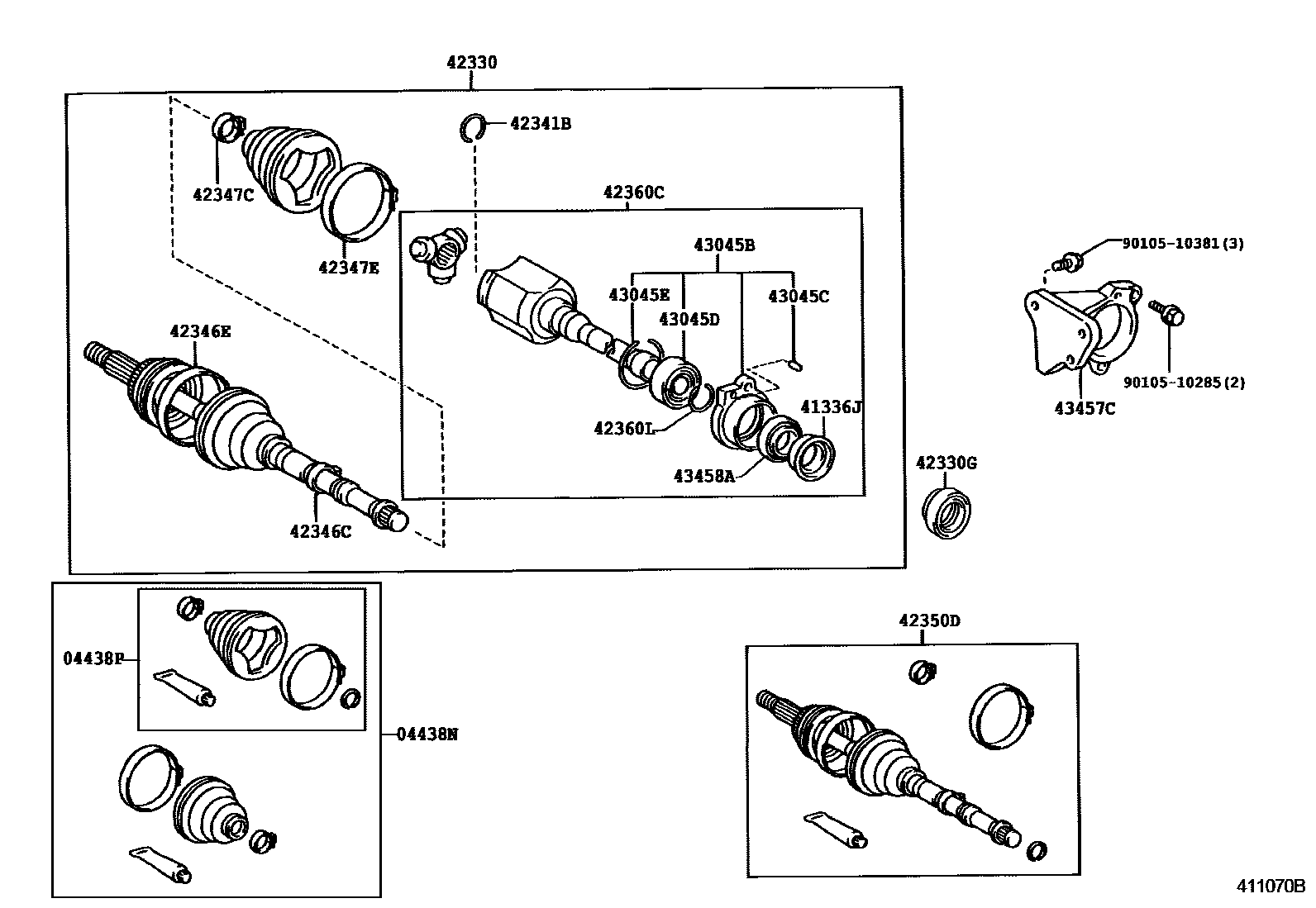

REAR AXLE SHAFT & HUB

0001 1RH 0002 1LH 0003 1RH 0004 1LH 0005 1

04438NBOOT KIT, REAR DRIVE SHAFT, IN & OUTBOARD JOINT, RH

main04429-17010iZZW30200501-200509

sub04429-17011

main04438-17050iZZW30200208-200501

sub04429-17010

main04438-20390iZZW30199912-200104

sub04438-20132

main04438-63010iZZW30200104-200208

sub04428-12250

04438PBOOT KIT, REAR DRIVE SHAFT, INBOARD JOINT, RH

main04438-17040iZZW30200208-200501

sub04439-17020

main04438-20380iZZW30199912-200104

sub04438-12470

main04438-32240iZZW30200104-200208

sub04438-42200

main04439-17020iZZW30200501-200509

sub04439-17021

41336JCOVER, REAR DRIVE SHAFT DUST, RH

main41336-20050iZZW30199912-200509

42330SHAFT ASSY, REAR DRIVE, RH

main42330-17190iZZW30199912-200104

sub42330-17191

main42330-17191iZZW30200104-200208

main43410-17010iZZW30200208-200509

42330GOIL SEAL, REAR DRIVE SHAFT, RH

main90311-35043iZZW30199912-200003

main90311-35051iZZW30200003-200509

sub90311-35057

42341BRING, SNAP (FOR REAR DRIVE SHAFT RH)

main90520-20065iZZW30200208-200509

main90520-22005iZZW30199912-200208

42346CCLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)

main42345-12150iZZW30200104-200208

ID=27.3

sub42345-12190

main42345-20100iZZW30199912-200104

ID=31.1

main42345-22030iZZW30200208-200509

ID=32.1

42346ECLAMP, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)

main42345-12010iZZW30200208-200509

main42345-12140iZZW30200104-200208

sub42345-12180

main42345-20120iZZW30199912-200104

42347CCLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)

main90949-01078iZZW30199912-200208

ID=32.7

main90949-01078iZZW30200202-200208

ID=32.5

main90949-01804iZZW30200208-200509

ID=31.9

42347ECLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)

main42345-12160iZZW30200202-200203

ID=91.9

main42345-12160iZZW30200203-200208

main90949-01076iZZW30200202-200203

ID=92.1

sub42345-12160

main90949-01076iZZW30199912-200202

sub42345-12160

main90949-01803iZZW30200208-200509

42350DJOINT ASSY, REAR DRIVE SHAFT OUTBOARD, RH

main43460-19765iZZW30199912-200104

sub43460-19766

main43460-19766iZZW30200104-200208

main43460-80012iZZW30200208-200501

sub43460-80068

main43460-80068iZZW30200501-200509

sub43460-80180

42360CJOINT ASSY, REAR DRIVE SHAFT INBOARD, RH

main43030-17030iZZW30200208-200509

main43030-32060iZZW30199912-200208

42360LRING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT RH)

main90520-33008iZZW30199912-200509

43045BCASE SUB-ASSY, REAR DRIVE SHAFT BEARING

main43045-20010iZZW30199912-200509

43045CPIN, STRAIGHT(FOR REAR DRIVE SHAFT BEARING CASE)

main90250-06003iZZW30199912-200509

43045DBEARING(FOR REAR DRIVE SHAFT)

main90363-36004iZZW30199912-200509

43045ERING, SNAP(FOR CASE SUB-ASSY, REAR DRIVE SHAFT BEARING)

main96153-00680iZZW30199912-200509

43457CBRACKET, DRIVE SHAFT BEARING

main43457-20080iZZW30199912-200509

43458ACOVER, REAR DRIVE SHAFT DUST

main43458-20011iZZW30199912-200509

9010510285

main90105-10285

9010510381

main90105-10381

21 parts on this diagram · 5 diagrams in section
