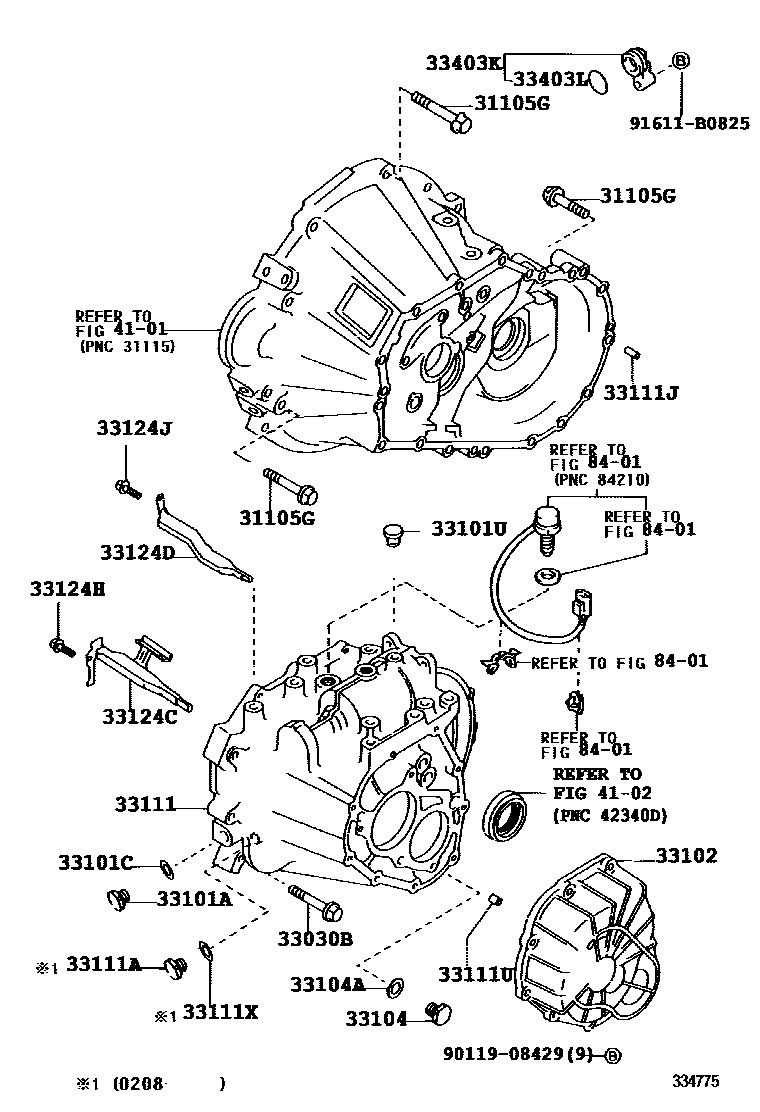

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1C52,C66 0002 1C52M,C56M,C65M,C66M

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main91619-61255iZZW30199912-200509

*12-1.25PX55-30

main91642-81055iZZW30199912-200509

*10-1.25PX55-30

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08064iZZW30199912-200208

*8-1.25PX51-28

sub90105-08353

main90105-08086iZZW30199912-200509

*8-1.25PX45-27.5

main90105-08353iZZW30200208-200509

*8-1.25PX50-30

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iZZW30199912-200208

main90341-18023iZZW30200208-200509

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iZZW30199912-200509

33101UPLUG, BREATHER(FOR MANUAL TRANSMISSION)

main90930-03133iZZW30199912-200509

33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-12021iZZW30199912-200208

main33102-20050iZZW30200208-200509

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iZZW30199912-200505

main90341-18033iZZW30200505-200509

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iZZW30199912-200509

33111CASE, MANUAL TRANSMISSION

main33111-12230iZZW30..6F200208-200301

sub33111-12231

sub90389-15009

main33111-12231iZZW30..6F200301-200408

sub33111-12250

sub90101-08166

sub90201-08049

main33111-12232iZZW30..6F200408-200509

sub33111-12250

sub90101-08166

sub90201-08049

main33111-17100iZZW30..5F199912-200208

sub33111-17101

sub90389-15009

main33111-17111iZZW30..5FS200008-200208

sub33111-17112

main33111-17120iZZW30..6FS200208-200408

sub33111-17121

main33111-17121iZZW30..6FS200408-200509

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18038iZZW30200208-200509

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-05121iZZW30..5FS200008-200208

L=15,OD=5,NO.2

main90250-05121iZZW30..6FS200208-200509

L=15,OD=5

main90250-08054iZZW30..5FS200008-200208

L=23,OD=8,NO.1

main90250-08054iZZW30199912-200509

L=23,OD=8

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11001iZZW30199912-200509

L=11,OD=11

33111XGASKET, TRANSMISSION CASE PLUG

main90430-18008iZZW30200208-200509

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-20050iZZW30199912-200509

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-12021iZZW30199912-200208

main33124-20060iZZW30200208-200509

33124HBOLT(FOR OIL RECEIVER PIPE)

main91611-G0820iZZW30199912-200509

33124JBOLT, W/WASHER

main91611-G0820iZZW30199912-200509

33403KCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE

main33403-35230iZZW30199912-200509

33403LRING, O

main96711-24030iZZW30199912-200509

4101

4102

8401

9011908429

main90119-08429

91611B0825

main91611-B0825

24 parts on this diagram · 2 diagrams in section
