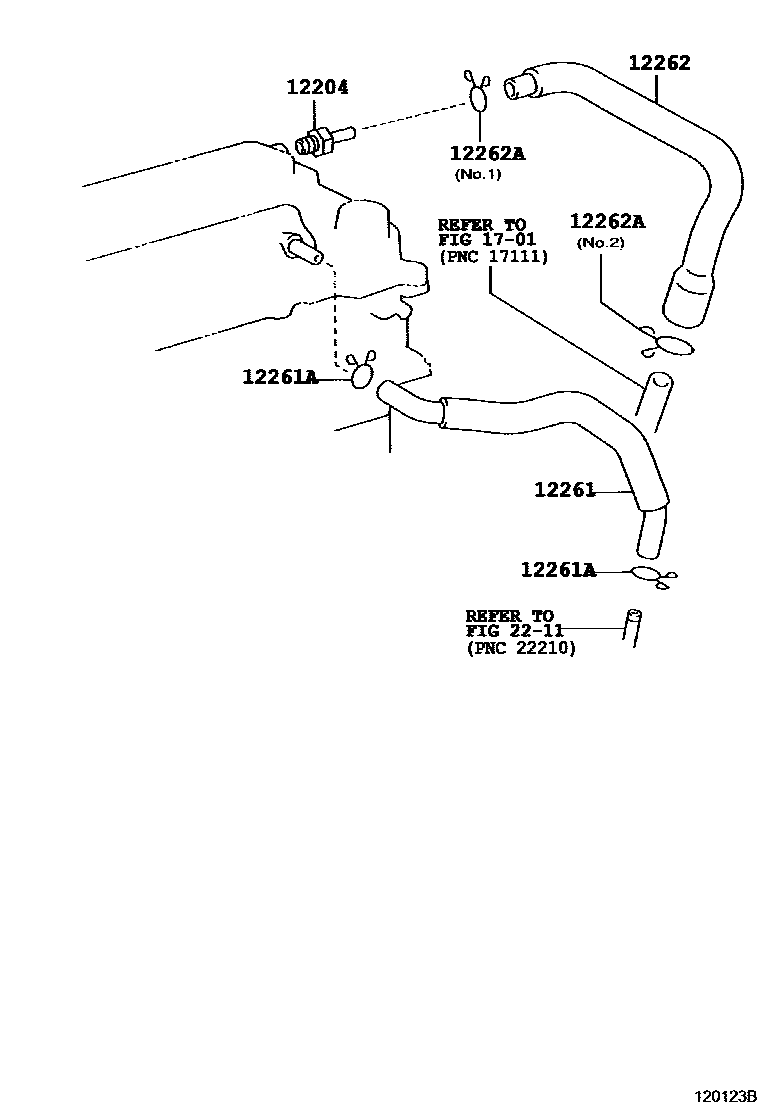

VENTILATION HOSE

12204VALVE SUB-ASSY, VENTILATION

main12204-22050i1ZZFE..ZZW30199912-200405

sub12204-22051

main12204-22051i1ZZFE..ZZW30200405-200509

12261HOSE, VENTILATION

main12261-22040i1ZZFE..ZZW30199912-200509

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90467-21152i1ZZFE..ZZW30199912-200509

12262HOSE, VENTILATION, NO.2

main12262-0D050i1ZZFE..ZZW30200406-200509

(L)

main12262-22040i1ZZFE..ZZW30199912-200406

main12262-22040i1ZZFE..ZZW30200406-200509

(J)

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90466-18002i1ZZFE..ZZW30200403-200509

NO.2

main90467-13103i1ZZFE..ZZW30199912-200509

NO.1

main90467-19003i1ZZFE..ZZW30199912-200403

NO.2

1701

2211

7 parts on this diagram · 1 diagram in section
