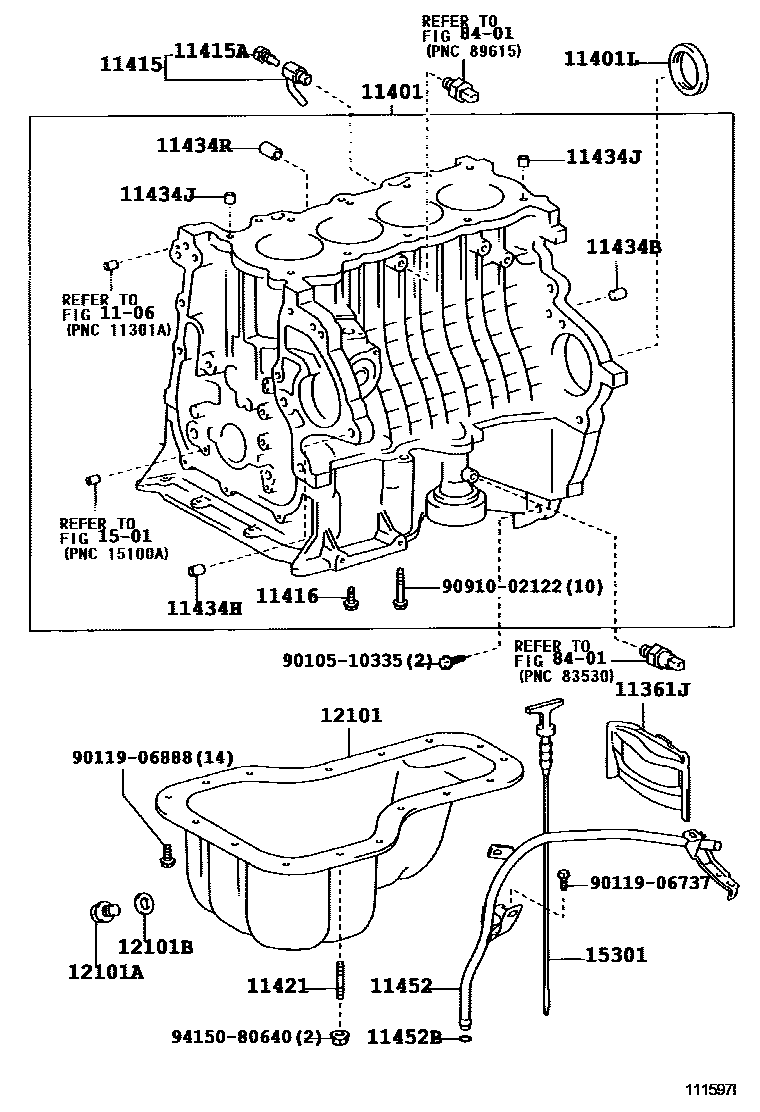

CYLINDER BLOCK

1106

11361JCOVER, FLYWHEEL HOUSING UNDER

main11361-22021i1ZZFE..ZZW30200208-200509

11401BLOCK SUB-ASSY, CYLINDER

main11410-29065i1ZZFE..ZZW30199912-200004

main11410-29066i1ZZFE..ZZW30200004-200101

main11410-29086i1ZZFE..ZZW30200101-200208

main11410-29135i1ZZFE..ZZW30200212-200509

sub11410-29136

sub16258-28030

sub16268-22021

sub16268-22042

sub16268-22061

sub16268-22071

sub16268-22101

sub16268-22111

sub16268-22161

11401LSEAL, ENGINE REAR OIL

main90311-76001i1ZZFE..ZZW30199912-200208

sub90311-76003

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09107i1ZZFE..ZZW30199912-200208

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90910-09087i1ZZFE..ZZW30199912-200208

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90105-08363×10i1ZZFE..ZZW30199912-200208

main91511-K0840×10i1ZZFE..ZZW30200208-200509

11421BOLT, STUD(FOR OIL PAN)

main90126-06010×2i1ZZFE..ZZW30199912-200208

11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)

main90250-10113×2i1ZZFE..ZZW30200208-200509

L=22,OD=10

11434HPIN, RING (FOR TIMING BELT COVER SET)

main90253-14003i1ZZFE..ZZW30200208-200509

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90253-13017×2i1ZZFE..ZZW30199912-200208

11434RPIN, STRAIGHT(FOR DRIVE SHAFT BEARING BRACKET)

main90250-06003×2i1ZZFE..ZZW30199912-200208

11452GUIDE, OIL LEVEL GAGE

main11452-22040i1ZZFE..ZZW30199912-200208

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main96721-19010i1ZZFE..ZZW30200208-200509

12101PAN SUB-ASSY, OIL

main12101-22024i1ZZFE..ZZW30199912-200208

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i1ZZFE..ZZW30200208-200509

main90341-12026i1ZZFE..ZZW30199912-200208

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i1ZZFE..ZZW30199912-200208

1501

15301GAGE SUB-ASSY, OIL LEVEL

main15301-22040i1ZZFE..ZZW30199912-200208

8401

9010510335

main90105-10335

9011906737

main90119-06737

9011906888

main90119-06888

9091002122

main90910-02122

9415080640

main94150-80640

25 parts on this diagram · 1 diagram in section
