STANDARD TOOL

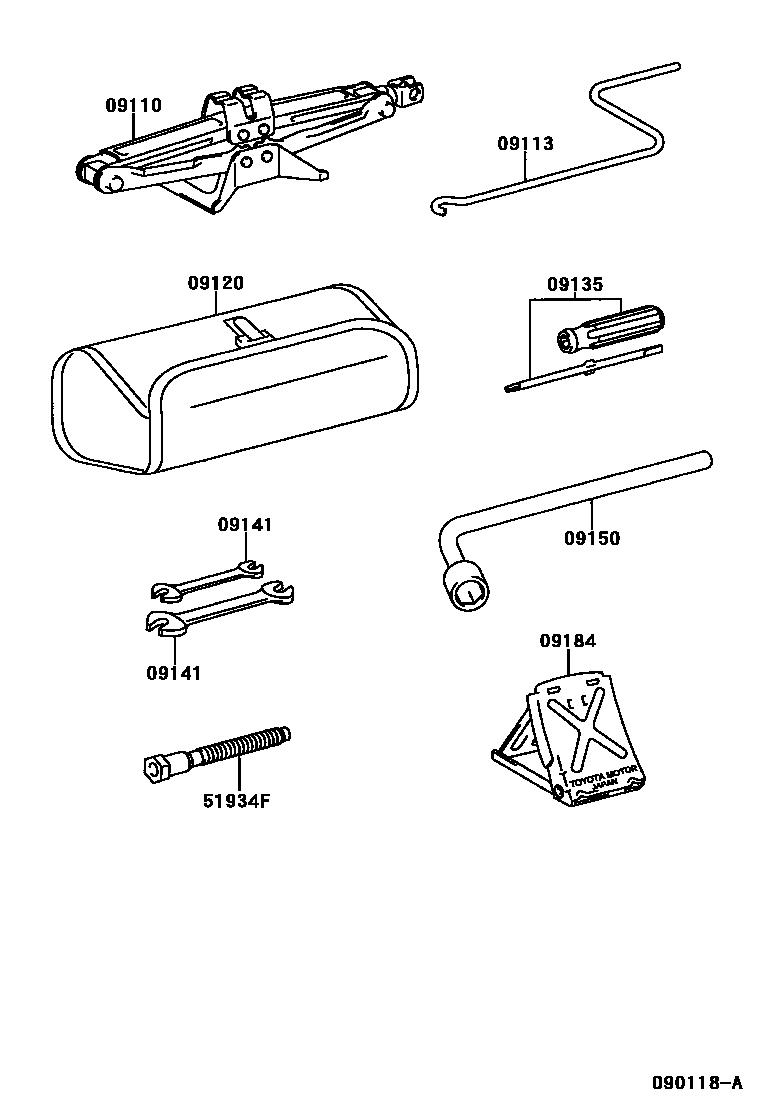

Parts diagram

09110JACK ASSY

main09111-17050i199912-200509

main09111-17060i200008-200509

09113HANDLE, JACK

main09113-52010i199912-200509

09120BAG, TOOL

main09120-17030i199912-200509

09135DRIVER, SCREW

main99915-10700i199912-200509

09141SPANNER

main99914-10810i199912-200509

8 X 10

09150WRENCH, HUB NUT BOX

main09150-26010i199912-200509

09184STOPPER, WHEEL

main09184-00010i199912-200208

51934FBOLT, SPARE WHEEL CARRIER

main51934-17010i199912-200509

8 parts on this diagram · 1 diagram in section
