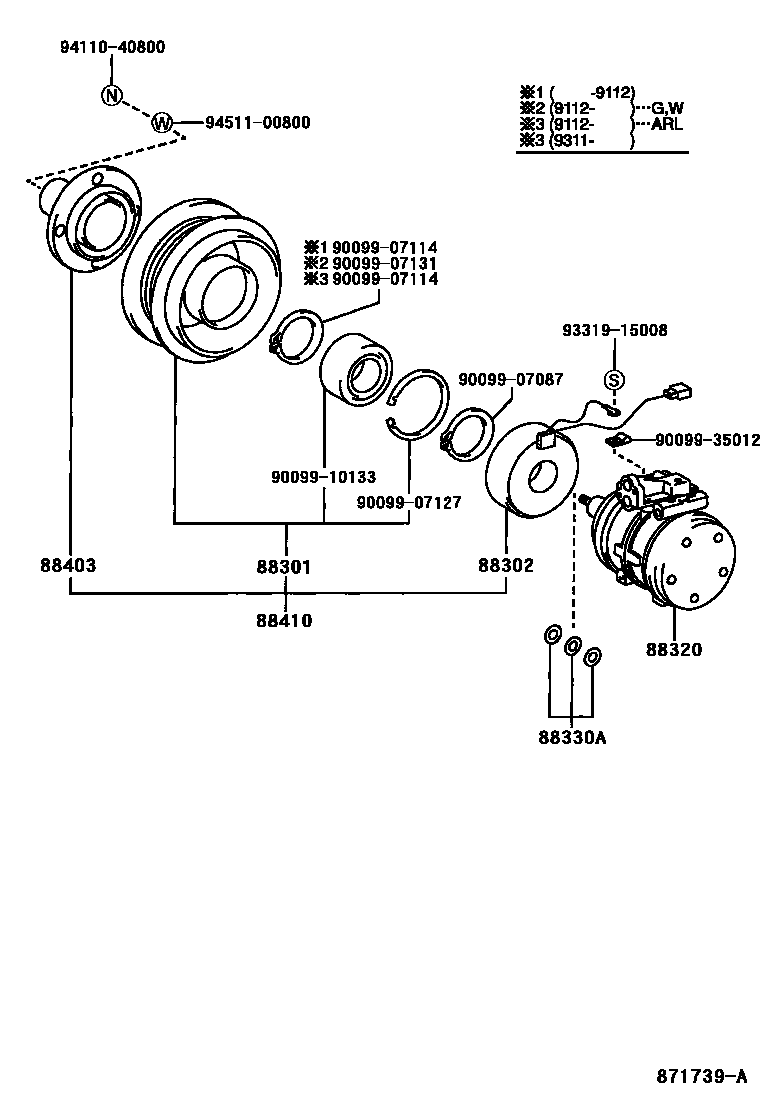

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-17010iSW20198912-199311

main88412-17020iSW20199311

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-17060iSW20198912-199311

main88411-17070iSW20..G,W199112-199311

sub88411-17080

main88411-17080iSW20199311

88320COMPRESSOR ASSY, COOLER

main88320-17090iSW20198912-199006

sub88320-17091

main88320-17091iSW20199006-199311

main88320-17100iSW20199311

88330AWASHER (FOR MAGNET CLUTCH)

main88335-12050iSW20198912

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-12030iSW20198912

88410CLUTCH ASSY, MAGNET

main88410-17060iSW20198912-199112

main88410-17070iSW20199112-199311

sub88410-17080

main88410-17080iSW20199311

9009907087

main90099-07087

9009907114

main90099-07114

9009907127

main90099-07127

9009907131

main90099-07131

9009910133

main90099-10133

9009935012

main90099-35012

9331915008

main93319-15008

9411040800

main94110-40800

9451100800

main94511-00800

15 parts on this diagram · 3 diagrams in section
