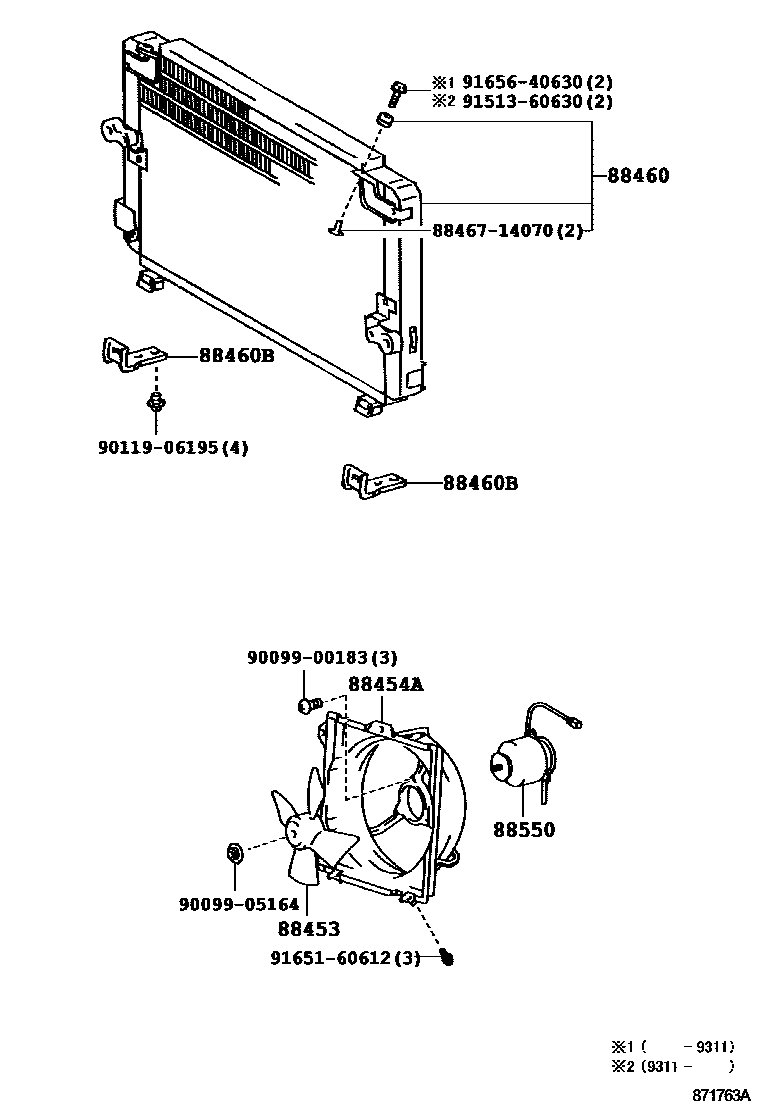

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1DEALER OPTION 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1DEALER OPTION 0013 1DEALER OPTION 0014 1 0015 1 0016 1

88453FAN, COOLING (FOR CONDENSER)

main16361-63020iSW20..4FC;SW20..TWC198912

sub16361-74070

main16361-64010iSW20..5F..HTWC198912-199208

88454ASHROUD, FAN

main16711-74290iSW20..4FC;SW20..TWC198912

main16711-74300iSW20..5F..HTWC198912-199208

88460CONDENSER ASSY, COOLER

main88460-17050iSW20..ARL198912-199311

sub88460-17060

main88460-17060iSW20..G,W198912-199311

main88460-17080iSW20..G199311

main88460-17090iSW20199712

DEALER OPTION

sub88460-17080

main88460-17090iSW20..ARL199311-199712

sub88460-17080

88460BBRACKET, COOLER CONDENSER, NO.1

main88688-17270iSW20198912

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main16363-74020iSW20..5F..HTWC198912-199208

main16363-74030iSW20..4FC;SW20..TWC198912

8846714070CUSHION, COOLER CONDENSER, NO.1

main88467-14070

9009900183

main90099-00183

9009905164

main90099-05164

9011906195

main90119-06195

9151360630

main91513-60630

9165160612

main91651-60612

9165640630

main91656-40630

12 parts on this diagram · 14 diagrams in section
