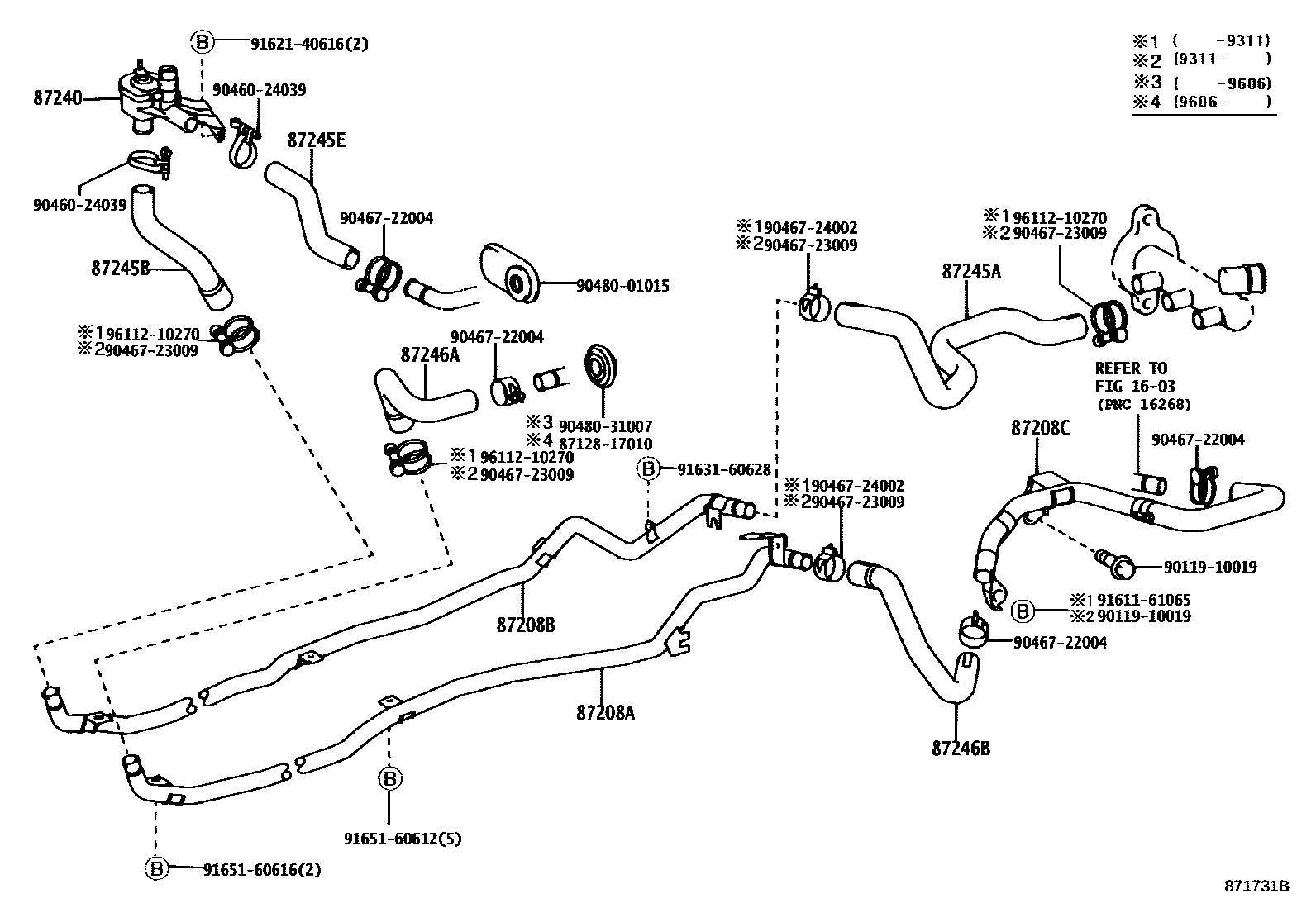

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1

1603

87208APIPE SUB-ASSY, HEATER WATER, A

main87208-17050iSW20..TWC198912

main87208-17070iSW20..HTWC198912-199208

87208BPIPE SUB-ASSY, HEATER WATER, B

main87208-17040iSW20..TWC198912-199602

sub87208-17041

sub91631-60628

main87208-17041iSW20199602

main87208-17060iSW20..HTWC198912-199208

sub87208-17041

sub90467-23009

sub91631-60628

87208CPIPE SUB-ASSY, HEATER WATER, C

main87208-17080iSW20..TWC198912-199311

main87208-17090iSW20..4FC198912-199112

main87208-17100iSW20..W199112-199208

main87208-17120iSW20199311

87240VALVE ASSY, HEATER WATER

main87240-17070iSW20..RHD198912

main87240-17080iSW20..LHD198912

87245AHOSE, HEATER WATER, INLET A

main87245-17190iSW20..RHD..TWC198912

main87245-17210iSW20..HTWC198912-199208

main87245-17230iSW20..LHD198912

87245BHOSE, HEATER WATER, INLET B

main87245-17280iSW20..RHD198912

main87245-17300iSW20..LHD198912

87245EHOSE, HEATER WATER, INLET E

main87245-17270iSW20..RHD198912-199606

main87245-17271iSW20..RHD199606

main87245-17290iSW20..LHD198912

87246AHOSE, HEATER WATER, OUTLET A

main87245-17170iSW20..RHD198912-199606

main87245-17171iSW20..RHD199606

main87245-17180iSW20..LHD198912

87246BHOSE, HEATER WATER, OUTLET B

main87245-17200iSW20..RHD..TWC198912-199311

sub87245-17201

main87245-17201iSW20..RHD199311

main87245-17220iSW20..HTWC198912-199208

main87245-17240iSW20..LHD198912

8712817010GROMMET, HEATER

main87128-17010

9011910019

main90119-10019

9046024039

main90460-24039

9046722004

main90467-22004

9046723009

main90467-23009

9046724002

main90467-24002

9048001015

main90480-01015

9048031007

main90480-31007

9161161065

main91611-61065

9162140616

main91621-40616

9163160628

main91631-60628

9165160612

main91651-60612

9165160616

main91651-60616

9611210270

main96112-10270

24 parts on this diagram · 2 diagrams in section
