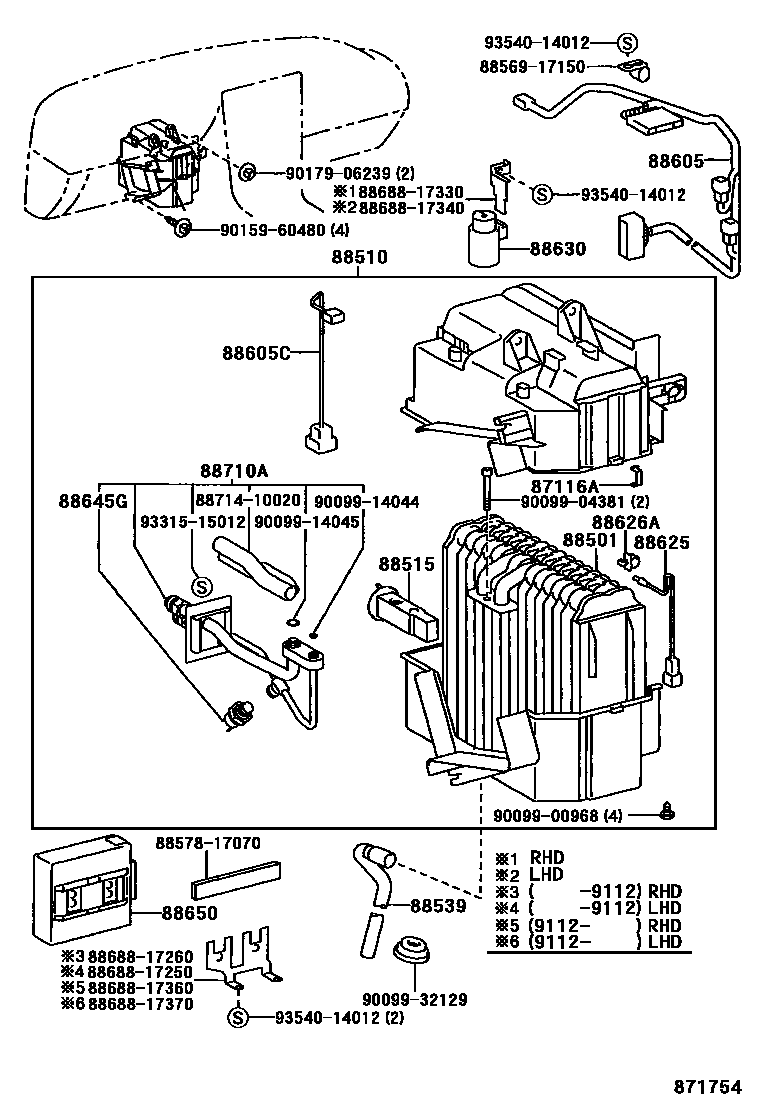

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1

87116ASPRING, HOLDING (FOR COOLER UNIT CASE)

main87116-14010iSW20198912

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-17030iSW20..LHD198912-199311

main88501-17040iSW20..RHD198912-199311

main88501-17050iSW20..RHD199311-199501

sub88501-17051

main88501-17051iSW20..RHD..G199501

main88501-17060iSW20..LHD199311-199501

sub88501-17061

main88501-17061iSW20..LHD199501

88510UNIT ASSY, COOLER

main88510-17140iSW20..LHD198912-199112

main88510-17141iSW20..LHD199112-199311

main88510-17160iSW20..RHD198912-199311

main88510-17191iSW20..RHD..G199310-199311

main88510-17200iSW20..RHD..G199208-199310

main88510-17230iSW20..RHD199311

main88510-17250iSW20..LHD199311

88515VALVE, COOLER EXPANSION

main88515-14060iSW20¥10,600198912-199008

sub88515-14061¥10,600

main88515-14061iSW20¥10,600199008-199112

sub88515-14062¥10,500

main88515-14062iSW20..G,W¥10,500199008-199112

sub88515-33010¥10,300

main88515-20100iSW20¥10,300199311

sub88515-22240¥10,200

main88515-33010iSW20¥10,300199112-199311

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-17030iSW20..RHD198912

main88539-17040iSW20..LHD198912

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-17270iSW20..LHD198912-199112

main88605-17271iSW20..LHD199112-199311

main88605-17280iSW20..RHD198912-199112

main88605-17281iSW20..RHD199112-199311

88605CHARNESS SUB-ASSY, COOLER WIRING, NO.2

main88605-17320iSW20..RHD199311

main88605-17330iSW20..LHD199311

main88648-17030iSW20198912-199311

88625THERMISTOR, COOLER, NO.1

main88625-20350iSW20..LHD199112

main88625-24050iSW20198912-199112

88626AHOLDER, THERMISTOR

main88626-28010iSW20198912

88630RELAY ASSY, COOLER

main88630-95702iSW20198912

88645GSWITCH, PRESSURE

main88645-10020iSW20..ARL198912-199009

main88645-30281iSW20..G,W198912-199311

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-17100iSW20..RHD198912-199112

main88650-17120iSW20..LHD198912-199112

main88650-17130iSW20199112

88710ATUBE ASSY, AIR CONDITIONER

main88710-17070iSW20..LHD¥10,900198912-199311

main88710-17080iSW20..RHD¥21,400198912-199311

main88710-17090iSW20..RHD..G¥19,600199208-199311

main88710-17100iSW20..RHD¥10,900199311

main88710-17110iSW20..LHD¥10,900199311

8856917150CLAMP (FOR COOLER RELAY)

main88569-17150

8857817070PAKING, COOLER AIR DUCT

main88578-17070

8868817250BRACKET, COOLER DIAPHRAGM

main88688-17250

8868817260BRACKET, COOLER DIAPHRAGM

main88688-17260

8868817330BRACKET, COOLER DIAPHRAGM

main88688-17330

8868817340BRACKET, COOLER DIAPHRAGM

main88688-17340

8868817360BRACKET, COOLER DIAPHRAGM

main88688-17360

8868817370BRACKET, COOLER DIAPHRAGM

main88688-17370

8871410020HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-10020

9009900968

main90099-00968

9009904381

main90099-04381

9009914044

main90099-14044

9009914045

main90099-14045

9009932129

main90099-32129

9015960480

main90159-60480¥120

9017906239

main90179-06239¥140

9331515012

main93315-15012¥80

9354014012

main93540-14012¥120

31 parts on this diagram · 2 diagrams in section
