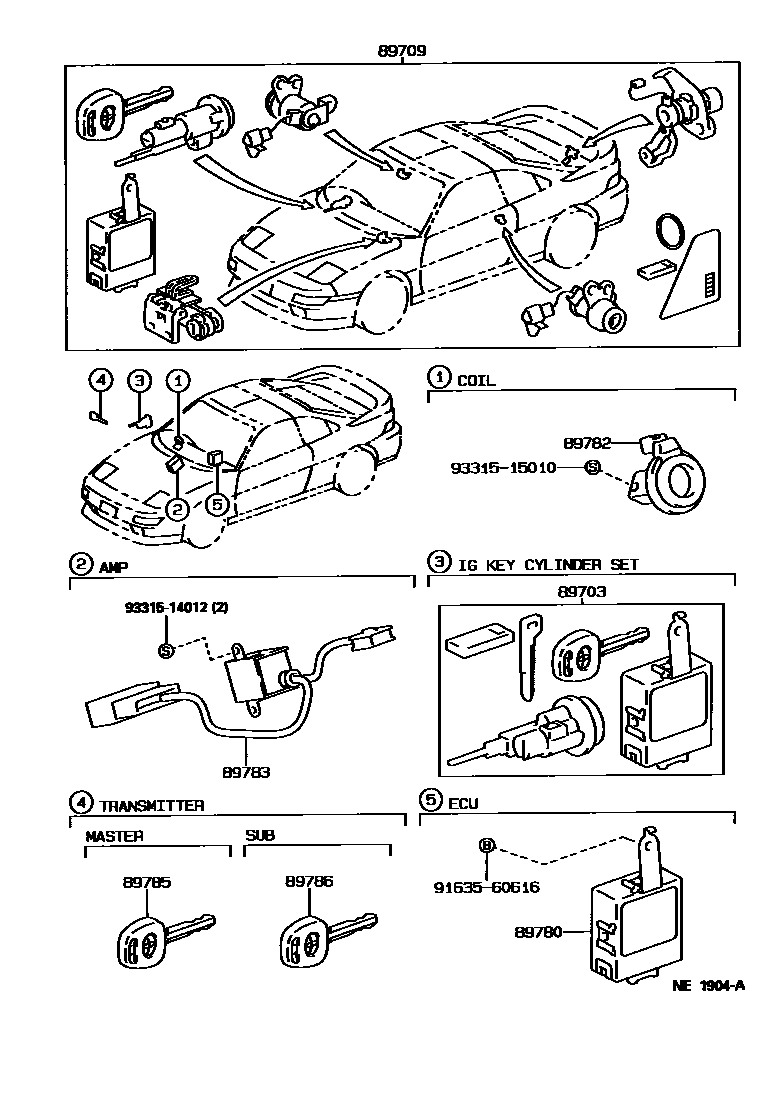

ANTI-THEFT DEVICE

89703CYLINDER & KEY SET, IGNITION W/TRANSPONDER

main89703-17010iSW20..RHD..G199512-199712

main89703-17020iSW20..LHD199512-199712

main89703-17030iSW20..RHD199712

main89703-17040iSW20..LHD199712

89709COMPUTER SET, TRANSPONDER KEY

main89709-17010iSW20..RHD..G199512-199606

main89709-17011iSW20..RHD199606-199712

main89709-17020iSW20..LHD199512-199712

main89709-17030iSW20..RHD199712

main89709-17040iSW20..LHD199712

89780COMPUTER ASSY, TRANSPONDER KEY

main89780-17010iSW20..G199512-199712

main89780-17020iSW20199712

89782COIL, TRANSPONDER KEY

main89782-17010iSW20..G199512-199606

89783AMPLIFIER, TRANSPONDER KEY

main89783-17010iSW20..G199512-199606

89785TRANSMITTER, TRANSPONDER KEY MASTER

main89785-17020iSW20..G199512-199606

sub89785-35020

89786TRANSMITTER, TRANSPONDER KEY SUB

main89786-17020iSW20..G199512-199606

sub89786-35040

9163560616

main91635-60616

9331514012

main93315-14012

9331515010

main93315-15010

10 parts on this diagram · 1 diagram in section
