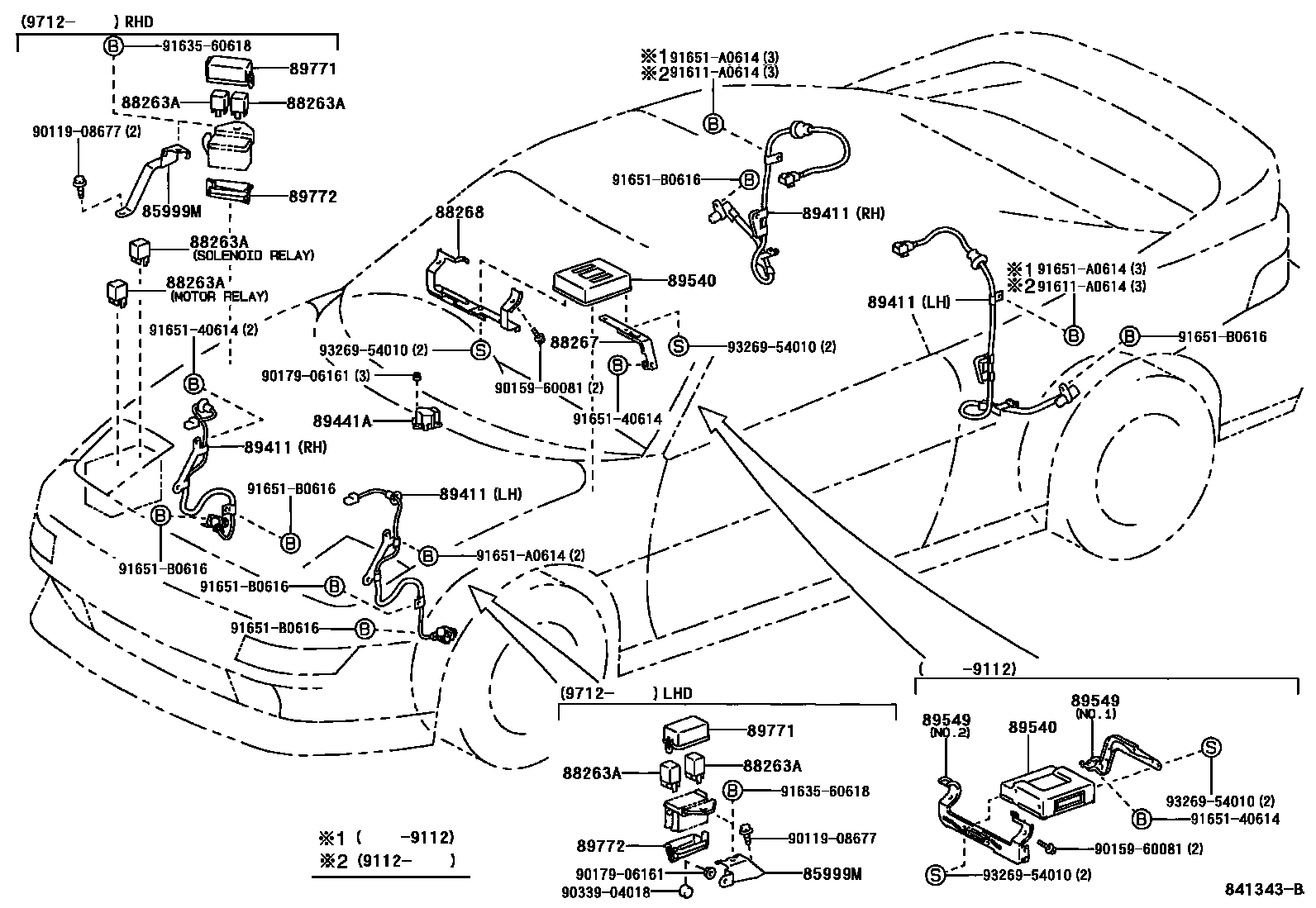

ABS & VSC
88263ARELAY, SKID CONTROL
MOTOR
SOLENOID
SOLENOID
88267BRACKET, SKID CONTROL COMPUTER, NO.1
88268BRACKET, SKID CONTROL COMPUTER, NO.2
89411SENSOR, SPEED
FRONT RH
FRONT LH
REAR RH
REAR LH
89441ASENSOR, DECELERATION
89540COMPUTER ASSY, SKID CONTROL
89549BRACKET, SKID CONTROL COMPUTER
NO.1
NO.1
NO.2
NO.2
89771COVER, ABS RELAY BLOCK, UPPER
89772COVER, ABS RELAY BLOCK, LOWER
9011908677
main90119-08677
9015960081
main90159-60081
9017906161
main90179-06161
9033904018
main90339-04018
91611A0614
main91611-A0614
9163560618
main91635-60618
9165140614
main91651-40614
91651A0614
main91651-A0614
91651B0616
main91651-B0616
9326954010
main93269-54010
20 parts on this diagram · 1 diagram in section
