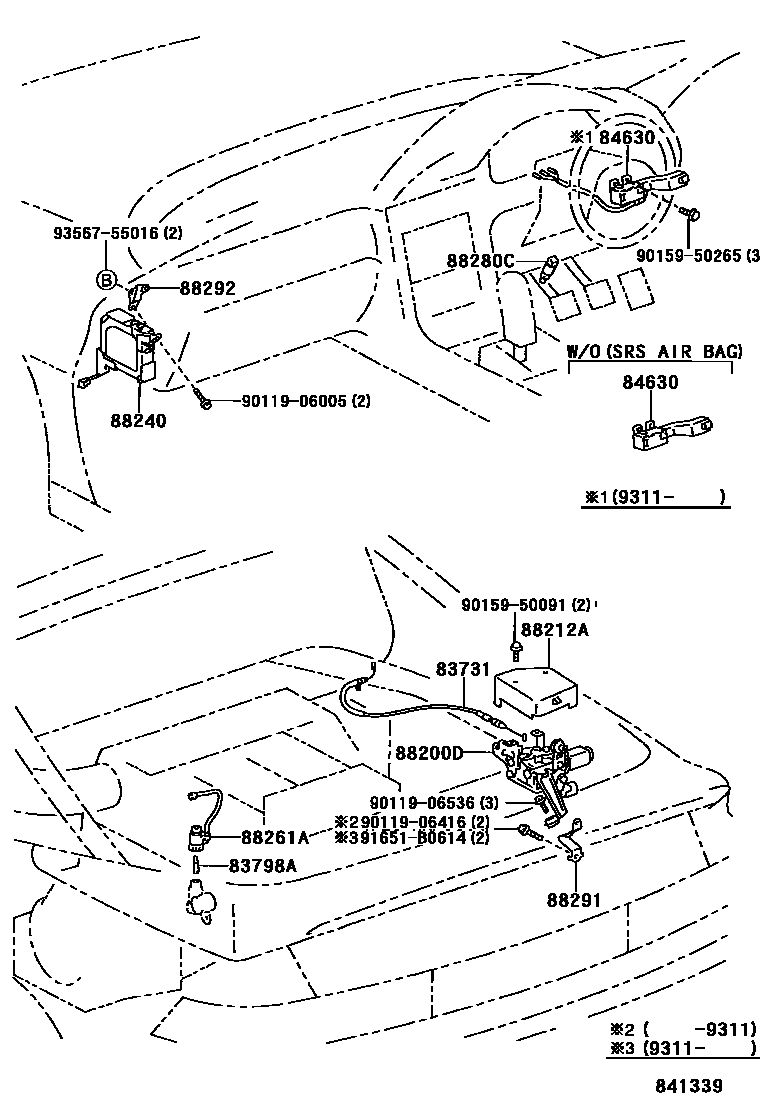

CRUISE CONTROL (AUTO DRIVE)

83731CABLE, CRUISE CONTROL

main83731-17010iSW20..ARL198912

83798AKEY, SPEEDOMETER CABLE ADAPTER

main83798-20020iSW20..ARL198912-199112

84630SWITCH ASSY, CRUISE CONTROL MAIN

main84630-17040iSW20..ARL198912-199112

main84630-17050iSW20..ARL199112-199311

main84630-17070iSW20..ARL199311-199606

main84630-17070iSW20..ARL199606

W(POWER STEERING)

88200DACTUATOR ASSY, CRUISE CONTROL

main88200-17060iSW20..ARL198912-199112

sub88200-17070

main88200-17070iSW20..ARL199112

88212ACOVER, CRUISE CONTROL ACTUATOR

main88212-17030iSW20..ARL198912

88240COMPUTER ASSY, CRUISE CONTROL

main88240-17110iSW20..ARL198912-199112

main88240-17170iSW20..ARL199112

88261ASENSOR, SPEED CRUISE CONTROL

main88261-20070iSW20..ARL198912-199112

88280CSWITCH ASSY, CLUTCH

main88280-20010iSW20..ARL198912

88291BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.1

main88291-17030iSW20..ARL198912

88292BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.2

main88292-17020iSW20..ARL198912

9011906005

main90119-06005

9011906416

main90119-06416

9011906536

main90119-06536

9015950091

main90159-50091

9015950265

main90159-50265

91651B0614

main91651-B0614

9356755016

main93567-55016

17 parts on this diagram · 1 diagram in section
