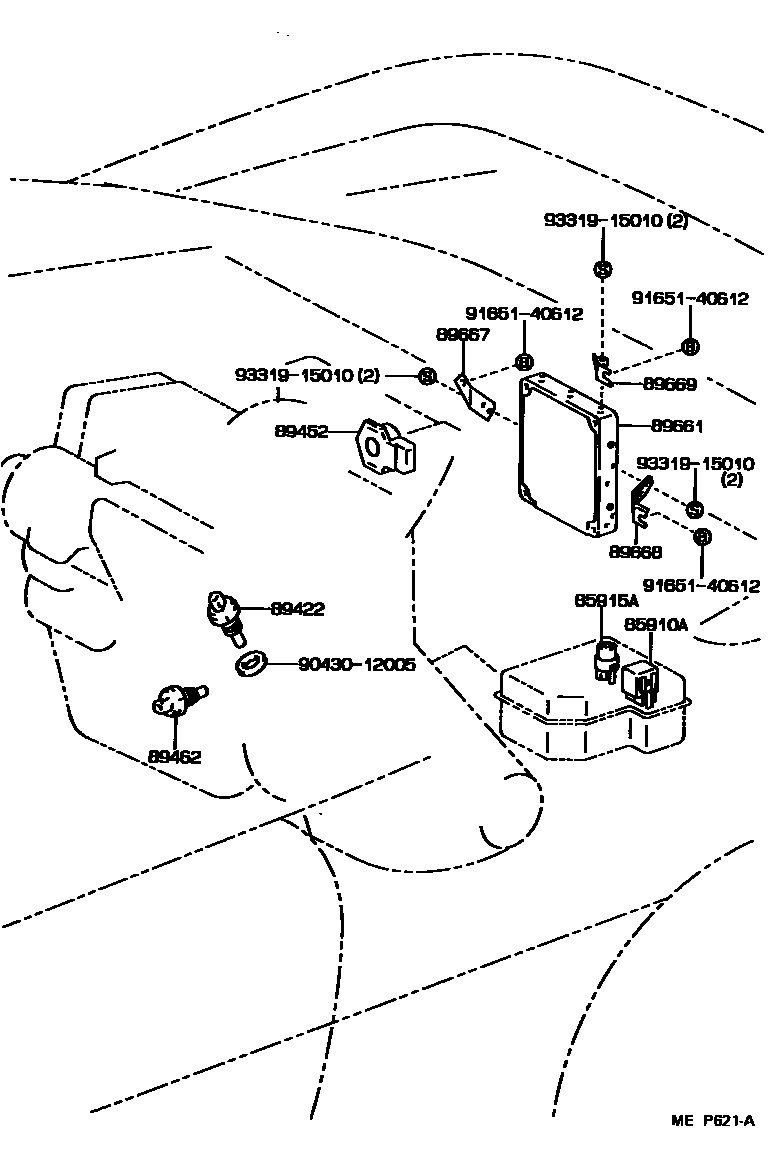

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-30050iSW20198912

85915ARELAY, MAIN

main90987-02004iSW20198912

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-20010iSW20198912-199311

main89422-35010iSW20199311

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-12040iSW20..TWC198912-199311

main89452-22090iSW20199311

main89452-32020iSW20..HTWC198912-199208

89462SWITCH, START INJECTOR TIME

main89462-20020iSW20..W198912-199208

main89462-20040iSW20..ARL,G198912-199311

89661COMPUTER, ENGINE CONTROL

main89661-17300iSW20..ARL,G198912-199112

main89661-17310iSW20..TWC..W198912-199112

main89661-17340iSW20..HTWC198912-199004

main89661-17341iSW20..HTWC199004-199208

main89661-17370iSW20..TWC199112-199311

main89661-17500iSW20199311-199506

main89661-17530iSW20..G199506-199606

main89661-17540iSW20..ARL199506-199606

main89661-17550iSW20199606-199712

main89661-17580iSW20199712

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-17030iSW20198912

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-17050iSW20198912-199112

main89668-17060iSW20199112

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-17060iSW20198912

9043012005

main90430-12005

9165140612

main91651-40612

9331915010

main93319-15010

12 parts on this diagram · 2 diagrams in section
