WIRING & CLAMP

0001 1ENGINE ROOM MAIN & ROOF WIRE 0002 1ENGINE WIRE 0003 1ENGINE WIRE 0004 1ENGINE WIRE (CLAMPS) 0005 1ENGINE WIRE 0006 1COWL WIRE 0007 1COWL WIRE 0008 1DOOR & LUGGAGE ROOM WIRE 0009 1DOOR & LUGGAGE ROOM WIRE 0010 1DOOR & LUGGAGE ROOM WIRE(CLAM0011 1FLOOR & REAR WINDOW WIRE 0012 1CABLE, BOND 0013 1RERAIR WIRE

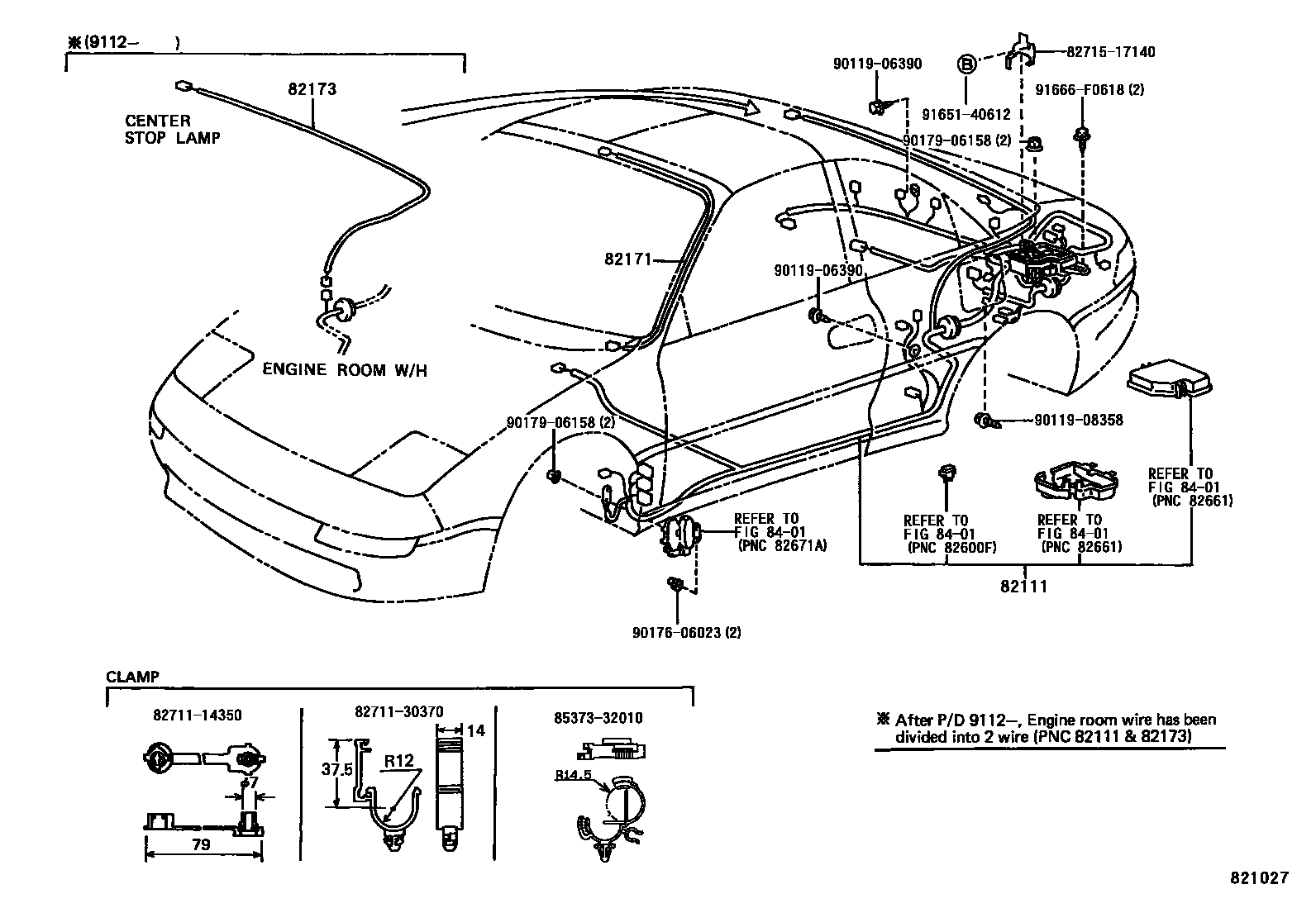

82111WIRE, ENGINE ROOM MAIN

main82111-17590iSW20..G198912-199112

main82111-17591iSW20..LHD199112-199311

main82111-17592iSW20..LHD199311-199405

main82111-17593iSW20..LHD199405-199508

main82111-17594iSW20..LHD199508-199512

main82111-17595iSW20..LHD199512-199712

main82111-17596iSW20..LHD199712

main82111-17600iSW20..LHD..W198912-199112

main82111-17610iSW20..RHD..TWC..W198912-199112

main82111-17611iSW20..RHD..G199112-199311

main82111-17612iSW20..RHD..G199311-199405

main82111-17613iSW20..RHD..G199405-199508

main82111-17614iSW20..RHD..G199508-199512

main82111-17615iSW20..RHD..G199512-199712

main82111-17616iSW20..RHD..G199712

main82111-17620iSW20..5F..HTWC198912-199112

main82111-17621iSW20..W199112-199208

main82111-17630iSW20..4FC198912-199112

main82111-17640iSW20..ARL198912-199112

main82111-17641iSW20..ARL199112-199311

main82111-17642iSW20..ARL199311-199401

sub82111-17643

main82111-17643iSW20..ARL199401-199405

main82111-17644iSW20..ARL199405-199606

main82111-17645iSW20..ARL199606-199712

main82111-17646iSW20..ARL199712

82171WIRE, ROOF, NO.1

main82171-17030iSW20..RHD..CP198912-199112

main82171-17031iSW20..RHD..CP199112

main82171-17040iSW20..RHD..TBR198912-199112

main82171-17041iSW20..RHD..TBR199112

main82171-17050iSW20..LHD..CP198912-199112

main82171-17051iSW20..LHD..CP199112-199501

main82171-17060iSW20..LHD..TBR198912-199112

main82171-17061iSW20..LHD..TBR199112

82173WIRE, ROOF, NO.3

main82173-17010iSW20199112-199311

8401

8271114350WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14350

8271130370WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-30370

8271517140BRACKET,WIRING HARNESS CLAMP

main82715-17140

8537332010HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85373-32010

9011906390

main90119-06390

9011908358

main90119-08358

9017606023

main90176-06023

9017906158

main90179-06158

9165140612

main91651-40612

91666F0618

main91666-F0618

14 parts on this diagram · 13 diagrams in section
