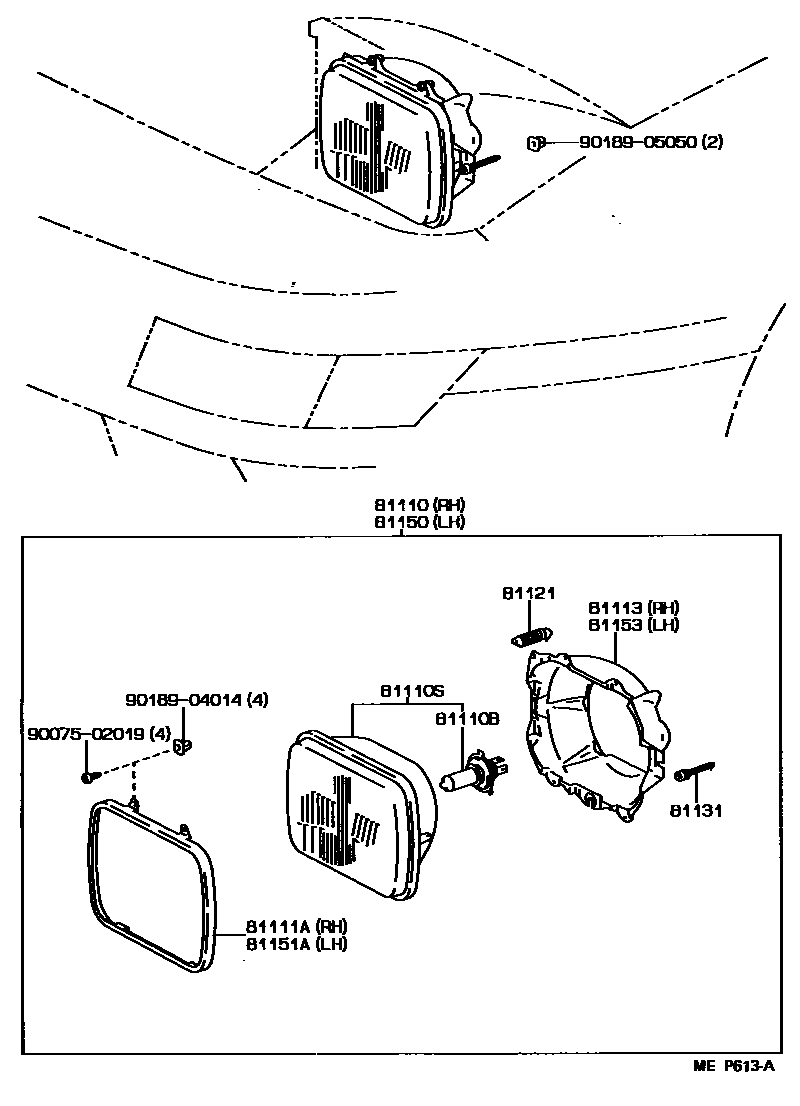

HEADLAMP

0001 1 0003 1 0004 1W/LEVELING

81110HEADLAMP ASSY, RH

main81110-17060iSW20..RHD..(G,W)198912-199508

RH TRAFFIC SPEC

sub81110-17061

main81110-17061iSW20..LHD199508

RH TRAFFIC SPEC

main81110-17070iSW20..LHD..W198912-199211

FRANCE SPEC

main81110-17080iSW20..RHD..(G,W)198912-199508

sub81110-17081

main81110-17081iSW20..RHD..G199508

main81110-17090iSW20..LHD..G198912-199508

*FRG

sub81110-17091

main81110-17090iSW20..LHD..G198912-199508

UNITED KINGDOM SPEC & RH TRAFFIC SPEC

sub81110-17091

main81110-17091iSW20..LHD199508

W(WVTA PLATE)

main81110-17091iSW20..RHD..G199508

W(WVTA PLATE) & RH TRAFFIC SPEC

main81110-17100iSW20..RHD..(G,W)198912-199508

UNITED KINGDOM SPEC

sub81110-17101

main81110-17101iSW20..RHD..G199508

W(WVTA PLATE)

main81110-17110iSW20..ARL199009

main81110-17140iSW20..ARL198912-199009

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13015iSW20..G,W198912-199009

12V 60/55W,*HAL *WH

sub90981-13058

main90981-13016iSW20..LHD198912-199211

12V 60/55W,*HAL *YE

sub90981-13H01

81110SSEALED BEAM UNIT, NO.1

main90981-04024iSW20..RHD..(G,W)198912

12V 60/55W,*HWS

main90981-04025iSW20..RHD..(G,W)198912

12V 60/55W,*HWS,RH TRAFFIC SPEC

main90981-04025iSW20..LHD198912

12V 60/55W,*HWS

main90981-04026iSW20..LHD198912-199211

12V 60/55W,*HYS,FRANCE SPEC

main90981-04030iSW20..ARL199009

12V 60/55W,*HWS

main90981-04041iSW20..ARL198912-199009

12V 70/55W,*HAL,*WB

sub90981-04044

81111ARING, SEALED BEAM RETAINING, NO.1 RH

main81111-2B360iSW20198912

81113RING, SEALED BEAM MOUNTING, NO.1 RH

main81113-17090iSW20..RHD..(G,W)198912-199508

*FRG

main81113-17090iSW20..RHD..(G,W)198912-199508

UNITED KINGDOM SPEC

main81113-17090iSW20..G199508

W(WVTA PLATE)

main81113-2B360iSW20198912

81121SPRING, HEADLAMP TENSION

main90075-25501iSW20198912

main90075-25504iSW20..LHD..G198912-199508

UNITED KINGDOM SPEC

main90075-25504iSW20..LHD..G198912-199508

*FRG

main90075-25504iSW20..G199508

W(WVTA PLATE)

81131SCREW, HEADLAMP ADJUSTING

main81131-17010iSW20198912

main90075-00003iSW20..LHD..G198912-199508

UNITED KINGDOM SPEC

main90075-00003iSW20..RHD..(G,W)198912-199508

*FRG

main90075-00003iSW20..G199508

W(WVTA PLATE)

81150HEADLAMP ASSY, LH

main81150-17060iSW20..LHD198912-199508

RH TRAFFIC SPEC

sub81150-17061

main81150-17061iSW20..RHD..G199508

RH TRAFFIC SPEC

main81150-17070iSW20..LHD198912-199211

FRANCE SPEC

main81150-17080iSW20..RHD..(G,W)198912-199508

sub81150-17081

main81150-17081iSW20..RHD..G199508

main81150-17090iSW20..LHD..G198912-199508

*FRG

sub81150-17091

main81150-17090iSW20..LHD..G198912-199508

UNITED KINGDOM SPEC & RH TRAFFIC SPEC

sub81150-17091

main81150-17091iSW20..LHD199508

W(WVTA PLATE)

main81150-17091iSW20..RHD..G199508

W(WVTA PLATE) & RH TRAFFIC SPEC

main81150-17100iSW20..RHD..(G,W)198912-199508

UNITED KINGDOM SPEC

sub81150-17101

main81150-17101iSW20..RHD..G199508

W(WVTA PLATE)

main81150-17110iSW20..ARL199009

main81150-17140iSW20..ARL198912-199009

81151ARING, SEALED BEAM RETAINING, NO.1 LH

main81111-2B360iSW20198912

81153RING, SEALED BEAM MOUNTING, NO.1 LH

main81153-17090iSW20..LHD..G198912-199508

*FRG

main81153-17090iSW20..LHD..G198912-199508

UNITED KINGDOM SPEC

main81153-17090iSW20..G199508

W(WVTA PLATE)

main81153-2B360iSW20198912

9007502019

main90075-02019

9018904014

main90189-04014

9018905050

main90189-05050

13 parts on this diagram · 3 diagrams in section
