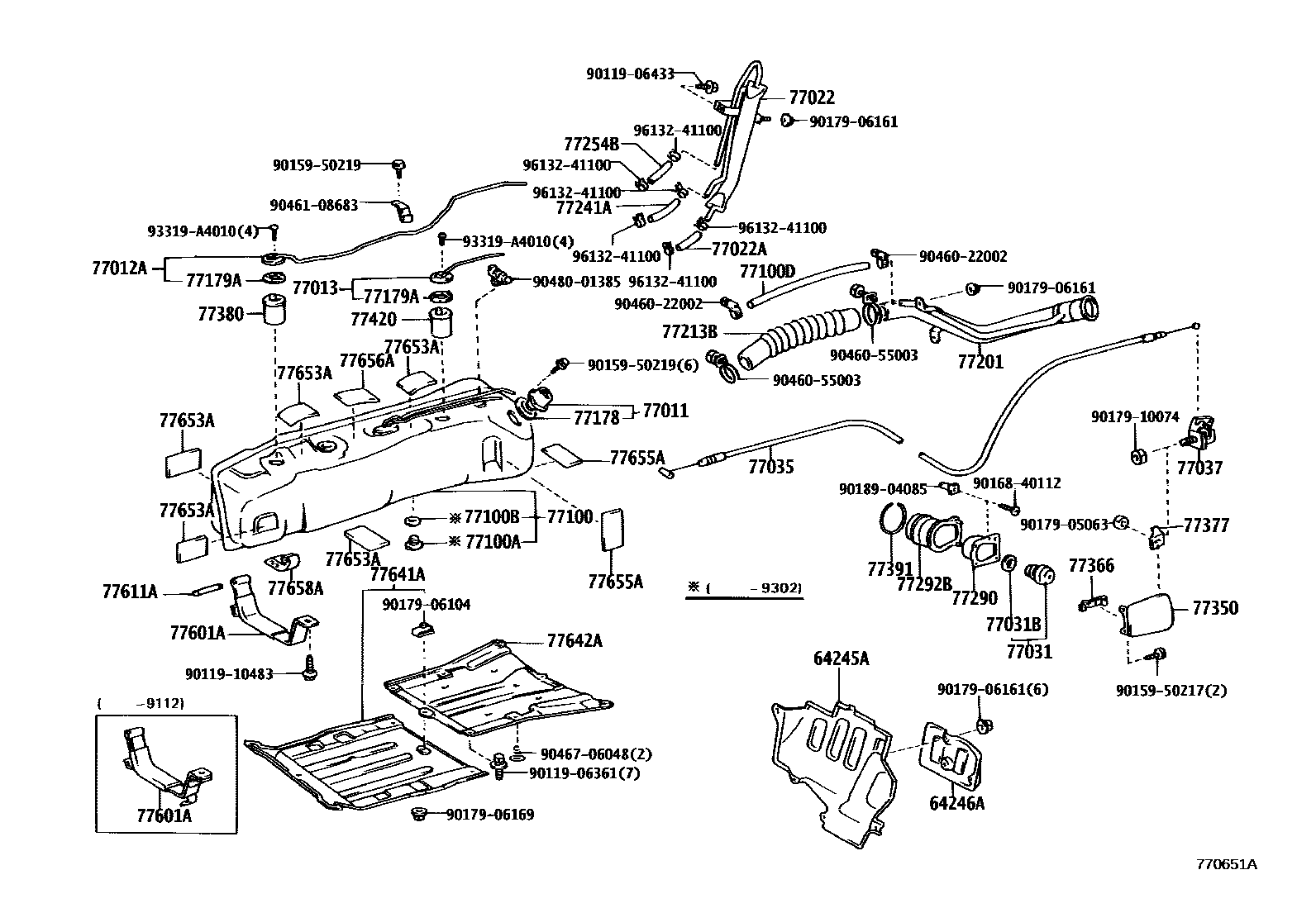

FUEL TANK & TUBE

0001 1 0002 1

64245AINSULATOR, ROOM PARTITION HEAT, NO.1

main64245-17010iSW20198912

64246AINSULATOR, ROOM PARTITION HEAT, NO.2

main64246-17010iSW20198912

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-17030iSW20..TWC..W198912-199002

*82

sub77011-17040

main77011-17040iSW20198912

77012ATUBE SUB-ASSY, FUEL TANK BREATHER, NO.1

main77012-17010iSW20..RHD..G199112-199908

HONGKONG SPEC

sub77012-17020

main77012-17010iSW20..TWC..W198912-199112

*82

sub77012-17020

main77012-17010iSW20..ARL198912-199908

sub77012-17020

main77012-17020iSW20..G,W198912-199908

77013TUBE SUB-ASSY, FUEL TANK BREATHER, NO.2

main77013-17010iSW20..TWC..W198912-199112

*82

sub77013-17020

main77013-17010iSW20..ARL198912-199908

sub77013-17020

main77013-17010iSW20..RHD..G199112-199908

HONGKONG SPEC

sub77013-17020

main77013-17020iSW20..G,W198912-199908

77022SEPARATOR SUB-ASSY, FUEL EVAPORATIVE

main77022-17040iSW20198912

77022AHOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

main95333-06010iSW20198912-199302

L=100

main95334-06010iSW20199302

L=100

77031CAP ASSY, FUEL TANK

main77310-16011iSW20198912-199803

sub77310-12140

main77310-48010iSW20199803

77031BGASKET (FOR FUEL TANK CAP)

main77316-16010iSW20198912

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-17050iSW20..RHD198912

main77035-17060iSW20..LHD198912

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-17020iSW20198912

77100TANK ASSY, FUEL

main77001-17905iSW20198912

77100APLUG(FOR FUEL TANK)

main90341-20004iSW20198912-199302

77100BGASKET(FOR FUEL TANK)

main90430-20007iSW20198912-199302

77100DHOSE, FUEL, NO.1(FOR FUEL TANK)

main90447-22003iSW20198912

L=340

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-20010iSW20198912

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-26010iSW20198912

sub77179-26011

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-17050iSW20..HTWC;SW20..ARL,G198912-199712

main77201-17060iSW20..TWC..W198912-199112

main77201-17080iSW20199712

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-32010iSW20198912

L=248

77241AHOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)

main95333-06020iSW20198912-199302

L=200(*H,L=120)

sub95337-06020

main95334-06012iSW20199302

L=200(*H,L=120)

77254BHOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1)

main95333-06020iSW20198912

*H,L=130

sub95337-06020

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77291-17020iSW20198912

77292BSHIELD, FUEL TANK DRAIN PLUG

main77292-17010iSW20198912

77350LID ASSY, FUEL FILLER OPENING

main77350-17020iSW20198912

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-17010iSW20198912

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-20040iSW20198912

77380VALVE ASSY, FUEL CUT OFF

main77380-26010iSW20198912

77391RING, FUEL INLET BOX

main77391-17010iSW20198912

77420VALVE ASSY, FUEL CUT OFF, NO.2

main77420-26010iSW20198912

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-17020iSW20198912-199112

main77601-17030iSW20199112

sub77601-17020

77611APIN (FOR FUEL TANK BAND)

main90250-08019iSW20198912

77641APROTECTOR, FUEL TANK, NO.1

main77641-17020iSW20198912

77642APROTECTOR, FUEL TANK, NO.2

main77642-17020iSW20198912

77653ACUSHION, FUEL TANK, NO.3

main77653-17010iSW20198912

77655ACUSHION, FUEL TANK, NO.5

main77655-17010iSW20198912

77656ACUSHION, FUEL TANK, NO.4

main77654-17010iSW20198912

77658APROTECTOR, FUEL TANK EDGE, NO.1

main77658-17010iSW20198912

9011906361

main90119-06361

9011906433

main90119-06433

9011910483

main90119-10483

9015950217

main90159-50217

9015950219

main90159-50219

9016840112

main90168-40112

9017905063

main90179-05063

9017906104

main90179-06104

9017906161

main90179-06161

9017906169

main90179-06169

9017910074

main90179-10074

9018904085

main90189-04085

9046022002

main90460-22002

9046055003

main90460-55003

9046108683

main90461-08683

9046706048

main90467-06048

9048001385

main90480-01385

93319A4010

main93319-A4010

9613241100

main96132-41100

56 parts on this diagram · 2 diagrams in section
