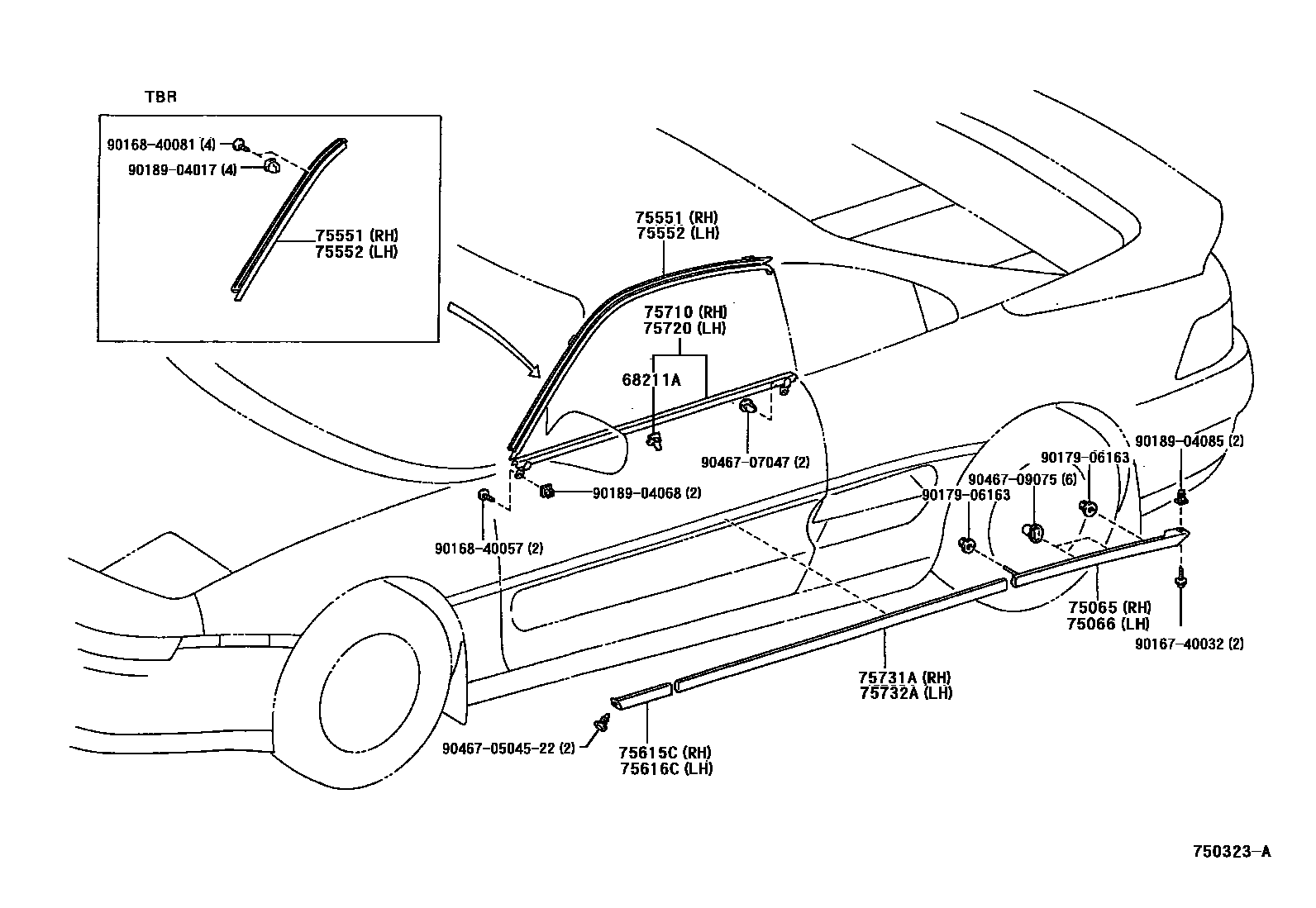

SIDE MOULDING

68211ACLIP, DOOR BELT MOULDING

main68211-17020iSW20199311

75065MOULDING SUB-ASSY, QUARTER, LOWER RH

main75065-17020iSW20..ARL;SW20..HTWC198912-199311

main75065-17030-02iSW20..TWC..(G,W)198912-199112

DARK RED M,3J6

sub75065-17011

sub75065-17030

main75065-17030-03iSW20..G199112-199311

L.SILVER M,040

sub75065-17011

sub75065-17030

main75065-17030-03iSW20..TWC..(G,W)198912-199112

L.SILVER M,043

sub75065-17011

sub75065-17030

main75065-17030-04iSW20..TWC..(G,W)198912-199112

BLUE,M,8H3

sub75065-17011

sub75065-17030

main75065-17030-07iSW20..TWC..(G,W)198912-199112

DARK GREEN, M,742

sub75065-17011

sub75065-17030

main75065-17030-13iSW20..TWC..(G,W)198912-199311

DARK GRAY M,187 ,202

sub75065-17011

sub75065-17030

main75065-17030-A0iSW20..G199311

SUPER WHITE 2,040

sub75065-17011

sub75065-17030

main75065-17030-B2iSW20..G199311-199606

BL.GRAY AMC,187

sub75065-17011

sub75065-17030

main75065-17030-B3iSW20..G199606-199712

SILVER ME.,199

sub75065-17011

sub75065-17030

main75065-17030-B3iSW20199512-199602

'96 SPRING CAMPAIGN,SILVER ME,199

sub75065-17011

sub75065-17030

main75065-17030-C0iSW20..G199606

BLACK,2CE ,202

sub75065-17011

sub75065-17030

main75065-17030-C0iSW20..G199311-199606

BLACK,202

sub75065-17011

sub75065-17030

main75065-17030-D0iSW20..G199112-199311

MAROON M.,3E5

sub75065-17011

sub75065-17030

main75065-17030-D1iSW20..G199311

SUPER RED 2,3E5

sub75065-17011

sub75065-17030

main75065-17030-D2iSW20..G199712

ORANGE M.M.,3L1

sub75065-17011

sub75065-17030

main75065-17030-E0iSW20..G199208-199311

GOLD MICA M.,TRIM2#&567

sub75065-17011

sub75065-17030

main75065-17030-E1iSW20..G199712

BEIGE M.M.,4N3

sub75065-17011

sub75065-17030

main75065-17030-F0iSW20..G199311-199712

SUPER BRIGHT YELLOW,576

sub75065-17011

sub75065-17030

main75065-17030-G0iSW20..G199311-199712

DK.GREEN MICA,6M1

sub75065-17011

sub75065-17030

main75065-17030-H0iSW20..G199112-199311

TURQUOISE MICA M.,746

sub75065-17011

sub75065-17030

main75065-17030-J0iSW20..G199112-199311

BLUE M.,8J2

sub75065-17011

sub75065-17030

main75065-17030-J1iSW20..G199311-199606

STRONG BLUE M,8B6

sub75065-17011

sub75065-17030

main75065-17030-J2iSW20..G199606-199712

PURPLISH BLUE M.M.,8K9

sub75065-17011

sub75065-17030

main75065-17030-K0iSW20..G199712

DK.PURPLE MC.,943

sub75065-17011

sub75065-17030

75066MOULDING SUB-ASSY, QUARTER, LOWER LH

main75066-17020iSW20198912-199311

sub75066-17010

main75066-17030-02iSW20..TWC..(G,W)198912-199112

DARK RED, M,3J6

sub75066-17011

sub75066-17030

main75066-17030-03iSW20..G199112-199311

L. SILVER M,040

sub75066-17011

sub75066-17030

main75066-17030-03iSW20..TWC..(G,W)198912-199112

L. SILVER M,043

sub75066-17011

sub75066-17030

main75066-17030-04iSW20..TWC..(G,W)198912-199112

BLUE,M,8H3

sub75066-17011

sub75066-17030

main75066-17030-07iSW20..TWC..(G,W)198912-199112

DARK GREEN, M,742

sub75066-17011

sub75066-17030

main75066-17030-13iSW20..TWC..(G,W)198912-199311

DARK GRAY M,187 ,202

sub75066-17011

sub75066-17030

main75066-17030-A0iSW20..G199311

SUPER WHITE 2,040

sub75066-17011

sub75066-17030

main75066-17030-B2iSW20..G199311-199606

BL.GRAY AMC,187

sub75066-17011

sub75066-17030

main75066-17030-B3iSW20199512-199602

'96 SPRING CAMPAIGN,SILVER ME,199

sub75066-17011

sub75066-17030

main75066-17030-B3iSW20..G199606-199712

SILVER ME.,199

sub75066-17011

sub75066-17030

main75066-17030-C0iSW20..G199311-199606

BLACK,202

sub75066-17011

sub75066-17030

main75066-17030-C0iSW20..G199606

BLACK,2CE ,202

sub75066-17011

sub75066-17030

main75066-17030-D0iSW20..G199112-199311

MAROON M.,3E5

sub75066-17011

sub75066-17030

main75066-17030-D1iSW20..G199311

SUPER RED 2,3E5

sub75066-17011

sub75066-17030

main75066-17030-D2iSW20..G199712

ORANGE M.M.,3L1

sub75066-17011

sub75066-17030

main75066-17030-E0iSW20..G199208-199311

GOLD MICA M.,TRIM2#&567

sub75066-17011

sub75066-17030

main75066-17030-E1iSW20..G199712

BEIGE M.M.,4N3

sub75066-17011

sub75066-17030

main75066-17030-F0iSW20..G199311-199712

SUPER BRIGHT YELLOW,576

sub75066-17011

sub75066-17030

main75066-17030-G0iSW20..G199311-199712

DK.GREEN MICA,6M1

sub75066-17011

sub75066-17030

main75066-17030-H0iSW20..G199112-199311

TURQUOISE MICA M.,746

sub75066-17011

sub75066-17030

main75066-17030-J0iSW20..G199112-199311

BLUE M.,8J2

sub75066-17011

sub75066-17030

main75066-17030-J1iSW20..G199311-199606

STRONG BLUE M,8B6

sub75066-17011

sub75066-17030

main75066-17030-J2iSW20..G199606-199712

PURPLISH BLUE M.M.,8K9

sub75066-17011

sub75066-17030

main75066-17030-K0iSW20..G199712

DK.PURPLE MC.,943

sub75066-17011

sub75066-17030

75551MOULDING, ROOF DRIP SIDE FINISH, RH

main75505-17010iSW20..CP198912

main75505-17020iSW20..TBR198912

75552MOULDING, ROOF DRIP SIDE FINISH, LH

main75506-17010iSW20..CP198912

main75506-17020iSW20..TBR198912

75615CMOULDING, FRONT FENDER, REAR RH

main75615-17040iSW20..ARL198912-199311

sub75615-17030

main75615-17050-02iSW20..TWC..(G,W)198912-199112

DARK RED, M,3J6

sub75615-17031

sub75615-17050

main75615-17050-03iSW20..TWC..(G,W)198912-199112

L. SILVER M,043

sub75615-17031

sub75615-17050

main75615-17050-03iSW20..G199112-199311

L. SILVER M,040

sub75615-17031

sub75615-17050

main75615-17050-04iSW20..TWC..(G,W)198912-199112

BLUE,M,8H3

sub75615-17031

sub75615-17050

main75615-17050-07iSW20..TWC..(G,W)198912-199112

DARK GREEN M,742

sub75615-17031

sub75615-17050

main75615-17050-13iSW20..TWC..(G,W)198912-199311

DARK GRAY M,187 ,202

sub75615-17031

sub75615-17050

main75615-17050-A0iSW20..G199311

SUPER WHITE 2,040

sub75615-17031

sub75615-17050

main75615-17050-B2iSW20..G199311-199606

BL.GRAY AMC,187

sub75615-17031

sub75615-17050

main75615-17050-B3iSW20..G199606-199712

SILVER ME.,199

sub75615-17031

sub75615-17050

main75615-17050-B3iSW20199512-199602

'96 SPRING CAMPAIGN,SILVER ME,199

sub75615-17031

sub75615-17050

main75615-17050-C0iSW20..G199311-199606

BLACK,202

sub75615-17031

sub75615-17050

main75615-17050-C0iSW20..G199606

BLACK,2CE ,202

sub75615-17031

sub75615-17050

main75615-17050-D0iSW20..G199112-199311

MAROON M.,3E5

sub75615-17031

sub75615-17050

main75615-17050-D1iSW20..G199311

SUPER RED 2,3E5

sub75615-17031

sub75615-17050

main75615-17050-D2iSW20..G199712

ORANGE M.M.,3L1

sub75615-17031

sub75615-17050

main75615-17050-E0iSW20..G199208-199311

GOLD MICA M.,TRIM2#&567

sub75615-17031

sub75615-17050

main75615-17050-E1iSW20..G199712

BEIGE M.M.,4N3

sub75615-17031

sub75615-17050

main75615-17050-F0iSW20..G199311-199712

SUPER BRIGHT YELLOW,576

sub75615-17031

sub75615-17050

main75615-17050-G0iSW20..G199311-199712

DK.GREEN MICA,6M1

sub75615-17031

sub75615-17050

main75615-17050-H0iSW20..G199112-199311

TURQUOISE MICA M.,746

sub75615-17031

sub75615-17050

main75615-17050-J0iSW20..G199112-199311

BLUE M.,8J2

sub75615-17031

sub75615-17050

main75615-17050-J1iSW20..G199311-199606

STRONG BLUE M,8B6

sub75615-17031

sub75615-17050

main75615-17050-J2iSW20..G199606-199712

PURPLISH BLUE M.M.,8K9

sub75615-17031

sub75615-17050

main75615-17050-K0iSW20..G199712

DK.PURPLE MC.,943

sub75615-17031

sub75615-17050

75616CMOULDING, FRONT FENDER, REAR LH

main75616-17040iSW20198912-199311

sub75616-17030

main75616-17050-02iSW20..TWC..(G,W)198912-199112

DARK RED, M,3J6

sub75616-17031

sub75616-17050

main75616-17050-03iSW20..G199112-199311

L. SILVER M,040

sub75616-17031

sub75616-17050

main75616-17050-03iSW20..TWC..(G,W)198912-199112

L. SILVER M,043

sub75616-17031

sub75616-17050

main75616-17050-04iSW20..TWC..(G,W)198912-199112

BLUE,M,8H3

sub75616-17031

sub75616-17050

main75616-17050-07iSW20..TWC..(G,W)198912-199112

DARK GREEN, M,742

sub75616-17031

sub75616-17050

main75616-17050-13iSW20..TWC..(G,W)198912-199311

DARK GRAY M,187 ,202

sub75616-17031

sub75616-17050

main75616-17050-A0iSW20..G199311

SUPER WHITE 2,040

sub75616-17031

sub75616-17050

main75616-17050-B2iSW20..G199311-199606

BL.GRAY AMC,187

sub75616-17031

sub75616-17050

main75616-17050-B3iSW20..G199606-199712

SILVER ME.,199

sub75616-17031

sub75616-17050

main75616-17050-B3iSW20199512-199602

'96 SPRING CAMPAIGN,SILVER ME,199

sub75616-17031

sub75616-17050

main75616-17050-C0iSW20..G199311-199606

BLACK,202

sub75616-17031

sub75616-17050

main75616-17050-C0iSW20..G199606

BLACK,2CE ,202

sub75616-17031

sub75616-17050

main75616-17050-D0iSW20..G199112-199311

MAROON M.,3E5

sub75616-17031

sub75616-17050

main75616-17050-D1iSW20..G199311

SUPER RED 2,3E5

sub75616-17031

sub75616-17050

main75616-17050-D2iSW20..G199712

ORANGE M.M.,3L1

sub75616-17031

sub75616-17050

main75616-17050-E0iSW20..G199208-199311

GOLD MICA M.,TRIM2#&567

sub75616-17031

sub75616-17050

main75616-17050-E1iSW20..G199712

BEIGE M.M.,4N3

sub75616-17031

sub75616-17050

main75616-17050-F0iSW20..G199311-199712

SUPER BRIGHT YELLOW,576

sub75616-17031

sub75616-17050

main75616-17050-G0iSW20..G199311-199712

DK.GREEN MICA,6M1

sub75616-17031

sub75616-17050

main75616-17050-H0iSW20..G199112-199311

TURQUOISE MICA M.,746

sub75616-17031

sub75616-17050

main75616-17050-J0iSW20..G199112-199311

BLUE M.,8J2

sub75616-17031

sub75616-17050

main75616-17050-J1iSW20..G199311-199606

STRONG BLUE M,8B6

sub75616-17031

sub75616-17050

main75616-17050-J2iSW20..G199606-199712

PURPLISH BLUE M.M.,8K9

sub75616-17031

sub75616-17050

main75616-17050-K0iSW20..G199712

DK.PURPLE MC.,943

sub75616-17031

sub75616-17050

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-17020iSW20198912

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-17020iSW20198912

75731AMOULDING, FRONT DOOR, OUTSIDE RH

main75731-17070iSW20..ARL198912-199311

sub75731-17060

main75731-17080-02iSW20..TWC..(G,W)198912-199112

SUPER RED 3,3J6

sub75731-17061

sub75731-17080

main75731-17080-03iSW20..G199112-199311

L. SILVER M,040

sub75731-17061

sub75731-17080

main75731-17080-03iSW20..TWC..(G,W)198912-199112

L. SILVER M,043

sub75731-17061

sub75731-17080

main75731-17080-04iSW20..TWC..(G,W)198912-199112

BLUE M,8H3

sub75731-17061

sub75731-17080

main75731-17080-07iSW20..TWC..(G,W)198912-199112

DARK TURQUOISE,742

sub75731-17061

sub75731-17080

main75731-17080-13iSW20..TWC..(G,W)198912-199311

DARK GRAY M,187 ,202

sub75731-17061

sub75731-17080

main75731-17080-A0iSW20..G199311

SUPER WHITE 2,040

sub75731-17061

sub75731-17080

main75731-17080-B2iSW20..G199311-199606

BL.GRAY AMC,187

sub75731-17061

sub75731-17080

main75731-17080-B3iSW20..G199606-199712

SILVER ME.,199

sub75731-17061

sub75731-17080

main75731-17080-B3iSW20199512-199602

'96 SPRING CAMPAIGN,SILVER ME,199

sub75731-17061

sub75731-17080

main75731-17080-C0iSW20..G199606

BLACK,2CE ,202

sub75731-17061

sub75731-17080

main75731-17080-C0iSW20..G199311-199606

BLACK,202

sub75731-17061

sub75731-17080

main75731-17080-D0iSW20..G199112-199311

MAROON M.,3E5

sub75731-17061

sub75731-17080

main75731-17080-D1iSW20..G199311

SUPER RED 2,3E5

sub75731-17061

sub75731-17080

main75731-17080-D2iSW20..G199712

ORANGE M.M.,3L1

sub75731-17061

sub75731-17080

main75731-17080-E0iSW20..G199208-199311

GOLD MICA M.,TRIM2#&567

sub75731-17061

sub75731-17080

main75731-17080-E1iSW20..G199712

BEIGE M.M.,4N3

sub75731-17061

sub75731-17080

main75731-17080-F0iSW20..G199311-199712

SUPER BRIGHT YELLOW,576

sub75731-17061

sub75731-17080

main75731-17080-G0iSW20..G199311-199712

DK.GREEN MICA,6M1

sub75731-17061

sub75731-17080

main75731-17080-H0iSW20..G199112-199311

TURQUOISE MICA M.,746

sub75731-17061

sub75731-17080

main75731-17080-J0iSW20..G199112-199311

BLUE M.,8J2

sub75731-17061

sub75731-17080

main75731-17080-J1iSW20..G199311-199606

STRONG BLUE M,8B6

sub75731-17061

sub75731-17080

main75731-17080-J2iSW20..G199606-199712

PURPLISH BLUE M.M.,8K9

sub75731-17061

sub75731-17080

main75731-17080-K0iSW20..G199712

DK.PURPLE MC.,943

sub75731-17061

sub75731-17080

75732AMOULDING, FRONT DOOR, OUTSIDE LH

main75732-17070iSW20..ARL198912-199311

sub75732-17060

main75732-17080-02iSW20..TWC..(G,W)198912-199112

SUPER RED 3,3J6

sub75732-17061

sub75732-17080

main75732-17080-03iSW20..TWC..(G,W)198912-199112

L. SILVER M,043

sub75732-17061

sub75732-17080

main75732-17080-03iSW20..G199112-199311

L. SILVER M,040

sub75732-17061

sub75732-17080

main75732-17080-04iSW20..TWC..(G,W)198912-199112

BLUE,M,8H3

sub75732-17061

sub75732-17080

main75732-17080-07iSW20..TWC..(G,W)198912-199112

DARK TURQUOISE MICA,742

sub75732-17061

sub75732-17080

main75732-17080-13iSW20..TWC..(G,W)198912-199311

DARK GRAY M,187 ,202

sub75732-17061

sub75732-17080

main75732-17080-A0iSW20..G199311

SUPER WHITE 2,040

sub75732-17061

sub75732-17080

main75732-17080-B2iSW20..G199311-199606

BL.GRAY AMC,187

sub75732-17061

sub75732-17080

main75732-17080-B3iSW20..G199606-199712

SILVER ME.,199

sub75732-17061

sub75732-17080

main75732-17080-B3iSW20199512-199602

'96 SPRING CAMPAIGN,SILVER ME,199

sub75732-17061

sub75732-17080

main75732-17080-C0iSW20..G199311-199606

BLACK,202

sub75732-17061

sub75732-17080

main75732-17080-C0iSW20..G199606

BLACK,2CE ,202

sub75732-17061

sub75732-17080

main75732-17080-D0iSW20..G199112-199311

MAROON M.,3E5

sub75732-17061

sub75732-17080

main75732-17080-D1iSW20..G199311

SUPER RED 2,3E5

sub75732-17061

sub75732-17080

main75732-17080-D2iSW20..G199712

ORANGE M.M.,3L1

sub75732-17061

sub75732-17080

main75732-17080-E0iSW20..G199208-199311

GOLD MICA M.,TRIM2#&567

sub75732-17061

sub75732-17080

main75732-17080-E1iSW20..G199712

BEIGE M.M.,4N3

sub75732-17061

sub75732-17080

main75732-17080-F0iSW20..G199311-199712

SUPER BRIGHT YELLOW,576

sub75732-17061

sub75732-17080

main75732-17080-G0iSW20..G199311-199712

DK.GREEN MICA,6M1

sub75732-17061

sub75732-17080

main75732-17080-H0iSW20..G199112-199311

TURQUOISE MICA M.,746

sub75732-17061

sub75732-17080

main75732-17080-J0iSW20..G199112-199311

BLUE M.,8J2

sub75732-17061

sub75732-17080

main75732-17080-J1iSW20..G199311-199606

STRONG BLUE M,8B6

sub75732-17061

sub75732-17080

main75732-17080-J2iSW20..G199606-199712

PURPLISH BLUE M.M.,8K9

sub75732-17061

sub75732-17080

main75732-17080-K0iSW20..G199712

DK.PURPLE MC.,943

sub75732-17061

sub75732-17080

9016740032

main90167-40032

9016840057

main90168-40057

9016840081

main90168-40081

9017906163

main90179-06163

9018904017

main90189-04017

9018904068

main90189-04068

9018904085

main90189-04085

904670504522

main90467-0504522

9046707047

main90467-07047

9046709075

main90467-09075

21 parts on this diagram · 1 diagram in section
