SEAT BELT & CHILD RESTRAINT SEAT

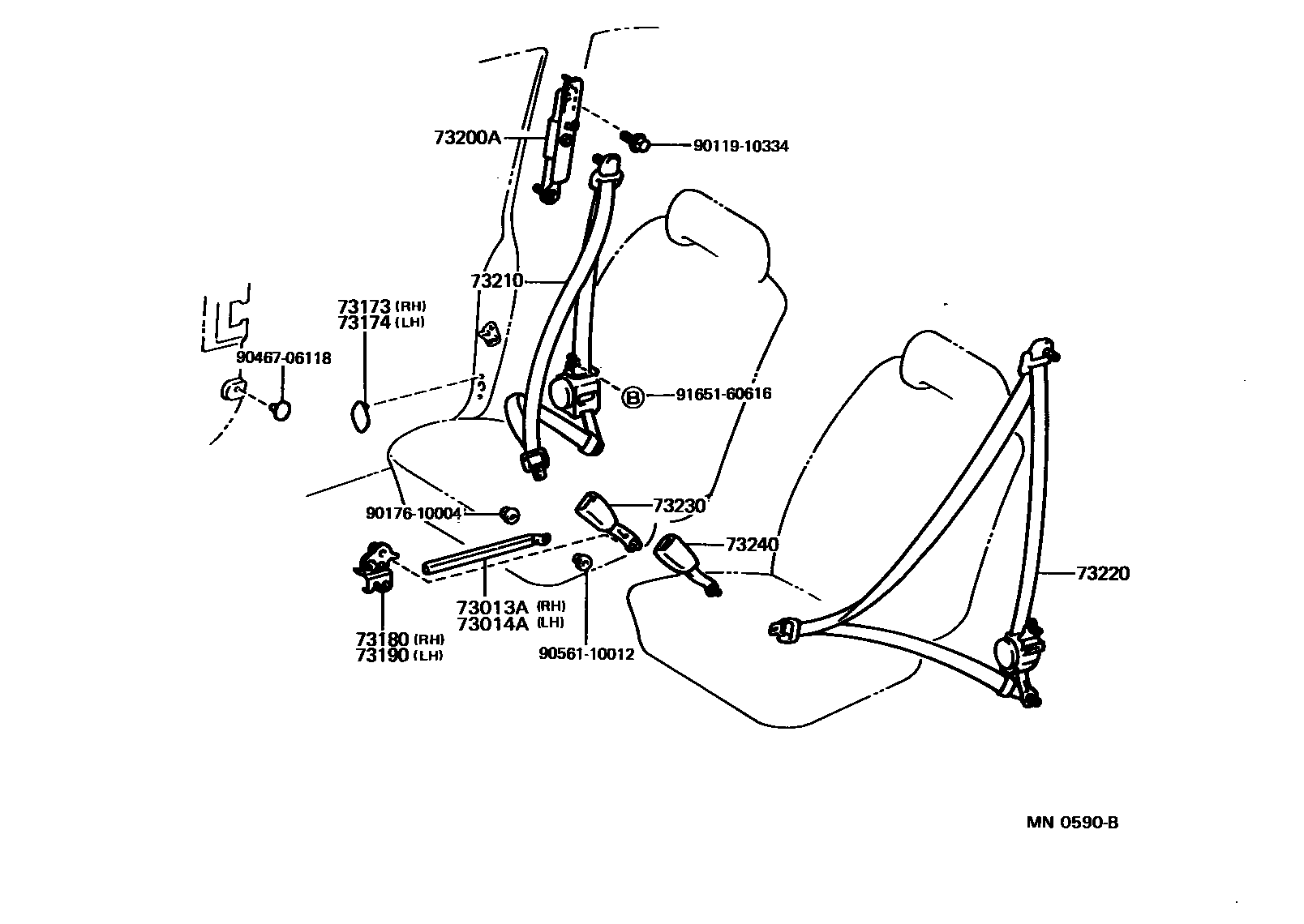

Parts diagram
73013APLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, RH
main73013-17010-01i198912-199311
BLACK,TRIM2#
sub73013-17010
main73013-17010-04i198912-199311
DARK BLUE,TRIM8#
sub73013-17010
main73013-17010-22i199311
BLACK,TRIM2#
sub73013-17010
73014APLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, LH
main73014-17010-01i198912-199311
BLACK,TRIM2#
sub73014-17010
main73014-17010-04i198912-199311
DARK BLUE,TRIM8#
sub73014-17010
main73014-17010-22i199311
BLACK,TRIM2#
sub73014-17010
73173COVER, FRONT SEAT BELT HOLE, RH
main73173-14010i198912
73174COVER, FRONT SEAT BELT HOLE, LH
main73173-14010i198912
73180BRACKET ASSY, SEAT BELT INNER ANCHOR, RH
main73011-17020i198912
73190BRACKET ASSY, SEAT BELT INNER ANCHOR, LH
main73012-17020i198912
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
main73200-17020-01i198912-199112
BLACK,TRIM2#
main73200-17020-04i198912-199112
DARK BLUE,TRIM8#
main73200-20030-C0i199112-199303
BLACK,TRIM2#
main73200-20030-J0i199112-199303
DARK BLUE,TRIM8#
main73200-20031-C0i199303
BLACK,TRIM2#
sub73200-20031
main73200-20031-J0i199303-199311
DARK BLUE,TRIM8#
sub73200-20031
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-17100-01i198912-199112
BLACK,TRIM2#
sub73210-17101
main73210-17100-04i198912-199112
DARK BLUE,TRIM8#
sub73210-17101
main73210-17101-C0i199112-199204
BLACK,TRIM2#
sub73210-17102
main73210-17101-J0i199112-199204
DARK BLUE,TRIM8#
sub73210-17102
main73210-17102-C0i199204-199311
BLACK,TRIM2#
main73210-17102-J0i199204-199311
DARK BLUE,TRIM8#
main73210-17103-C0i199311-199405
BLACK,TRIM2#
main73210-17104-C0i199405-199712
BLACK,TRIM2#
main73210-17105-C0i199712
BLACK,TRIM2#
main73210-17160-C0i199512
BLACK,TRIM2#
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-17100-01i198912-199112
BLACK,TRIM2#
sub73220-17101
main73220-17100-04i198912-199112
DARK BLUE,TRIM8#
sub73220-17101
main73220-17101-C0i199112-199204
BLACK,TRIM2#
sub73220-17102
main73220-17101-J0i199112-199204
DARK BLUE,TRIM8#
sub73220-17102
main73220-17102-C0i199204-199311
BLACK,TRIM2#
main73220-17102-J0i199204-199311
DARK BLUE,TRIM8#
main73220-17103-C0i199311-199405
BLACK,TRIM2#
main73220-17104-C0i199405-199712
BLACK,TRIM2#
main73220-17105-C0i199712
BLACK,TRIM2#
main73220-17140-C0i199512
BLACK,TRIM2#
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-17062-C0i199512
BLACK,TRIM2#
main73230-17070-01i198912-199011
BLACK,TRIM2#
sub73230-17071
main73230-17070-04i198912-199011
DARK BLUE,TRIM8#
sub73230-17071
main73230-17071-01i199011-199204
BLACK,TRIM2#
sub73230-17072
main73230-17071-04i199011-199204
DARK BLUE,TRIM8#
sub73230-17072
main73230-17072-22i199204-199405
BLACK,TRIM2#
main73230-17072-R8i199204-199311
DARK BLUE,TRIM8#
main73230-17073-22i199405-199902
BLACK,TRIM2#
sub73230-17120
main73230-17120-C0i199902
BLACK,TRIM2#
73240BELT ASSY, FRONT SEAT INNER, LH
main73230-17070-01i198912-199011
BLACK,TRIM2#
sub73230-17071
main73230-17070-04i198912-199011
DARK BLUE,TRIM8#
sub73230-17071
main73230-17071-01i199011-199204
BLACK,TRIM2#
sub73230-17072
main73230-17071-04i199011-199204
DARK BLUE,TRIM8#
sub73230-17072
main73230-17072-22i199204-199405
BLACK,TRIM2#
main73230-17072-R8i199204-199311
DARK BLUE,TRIM8#
main73230-17073-22i199405-199902
BLACK,TRIM2#
sub73230-17120
main73230-17120-C0i199512-199902
BLACK,TRIM2#
9011910334
main90119-10334
9017610004
main90176-10004
9046706118
main90467-06118
9056110012
main90561-10012
9165160616
main91651-60616

16 parts on this diagram · 1 diagram in section
