EPC Data

FRONT SEAT & SEAT TRACK

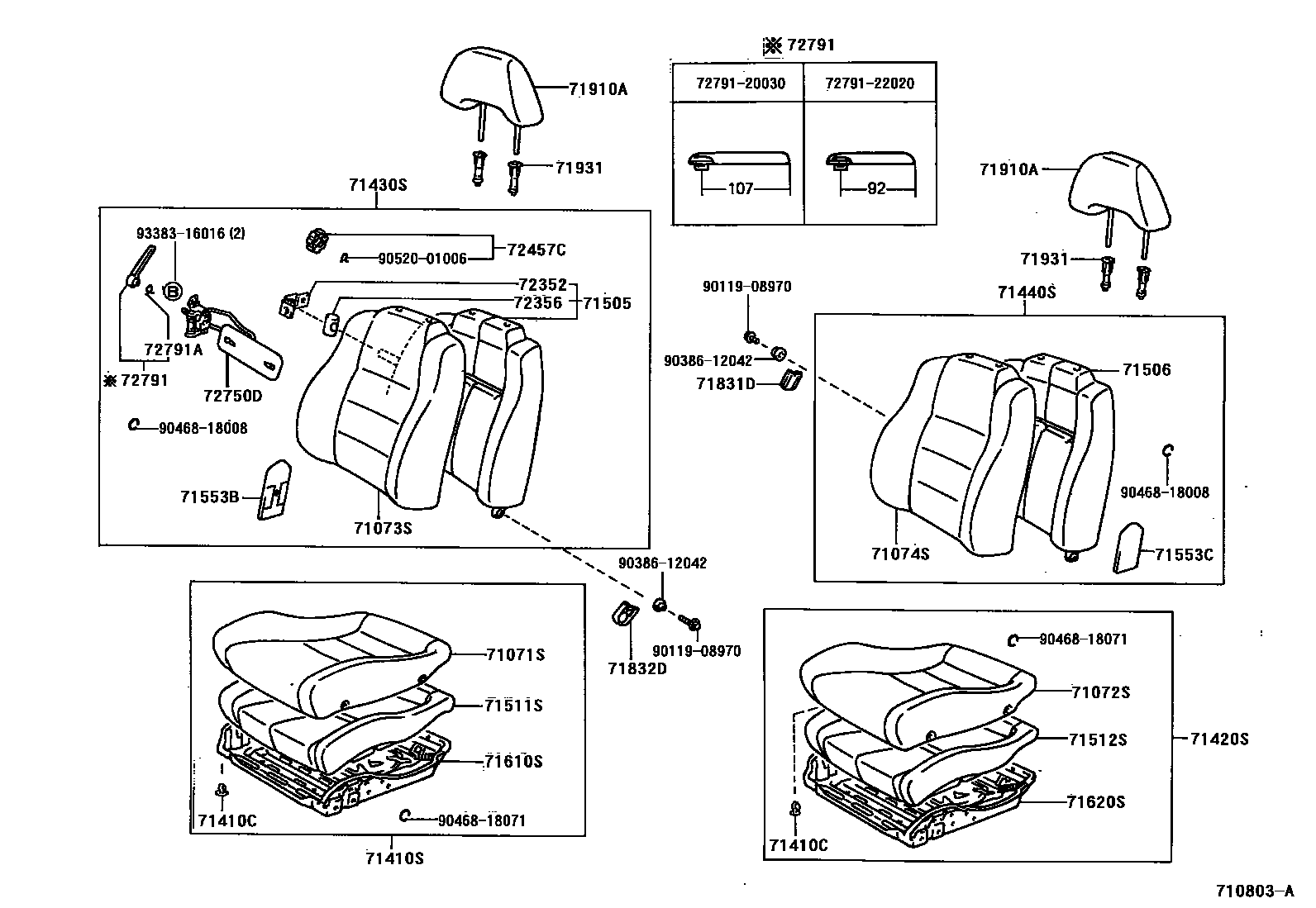

Parts diagram
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-17172-C1i199311-199503
BLACK,TRIM2#
main71071-17172-C2i199503-199712
BLACK,TRIM2#
main71071-17173-C3i199712
BLACK,TRIM2#
main71071-17190-01i198912-199112
BLACK,TRIM2#
main71071-17190-04i198912-199112
DARK BLUE,TRIM8#
main71071-17191-C0i199112-199311
BLACK,TRIM2#
main71071-17191-J0i199112-199311
DARK BLUE,TRIM8#
main71071-17192-C1i199311-199503
BLACK,TRIM2#
main71071-17192-C3i199503-199712
BLACK,TRIM2#
main71071-17193-C4i199712
BLACK,TRIM2#
main71071-17200-01i198912-199112
BLACK,TRIM2#
main71071-17200-04i198912-199112
DARK BLUE,TRIM8#
main71071-17201-C0i199112-199311
BLACK,TRIM2#
main71071-17201-J0i199112-199311
DARK BLUE,TRIM8#
main71071-17202-C1i199311-199503
BLACK,TRIM2#
main71071-17202-C2i199503-199712
BLACK,TRIM2#
main71071-17203-C3i199712
BLACK,TRIM2#
main71071-17220-01i198912-199112
LEATHER PACKAGE-*104,BLACK,TRIM2#
main71071-17221-C0i199112-199311
LEATHER PACKAGE-*104,BLACK,TRIM2#
sub71071-17221
main71071-17221-C2i199311
LEATHER PACKAGE-*104,BLACK,TRIM2#
sub71071-17221
main71071-17230-01i198912-199112
LEATHER PACKAGE-*104,BLACK,TRIM2#
main71071-17231-C0i199112-199311
LEATHER PACKAGE-*104,BLACK,TRIM2#
sub71071-17231
main71071-17231-C2i199311
LEATHER PACKAGE-*104,BLACK,TRIM2#
sub71071-17231
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-17172-C1i199311-199503
BLACK,TRIM2#
main71072-17172-C2i199503-199712
BLACK,TRIM2#
main71072-17173-C3i199712
BLACK,TRIM2#
main71072-17190-01i198912-199112
BLACK,TRIM2#
main71072-17190-04i198912-199112
DARK BLUE,TRIM8#
main71072-17191-C0i199112-199311
BLACK,TRIM2#
main71072-17191-J0i199112-199311
DARK BLUE,TRIM8#
main71072-17192-C1i199311-199503
BLACK,TRIM2#
main71072-17192-C3i199503-199712
BLACK,TRIM2#
main71072-17193-C4i199712
BLACK,TRIM2#
main71072-17200-01i198912-199112
BLACK,TRIM2#
main71072-17200-04i198912-199112
DARK BLUE,TRIM8#
main71072-17201-C0i199112-199311
BLACK,TRIM2#
main71072-17201-J0i199112-199311
DARK BLUE,TRIM8#
main71072-17202-C1i199311-199503
BLACK,TRIM2#
main71072-17202-C2i199503-199712
BLACK,TRIM2#
main71072-17203-C3i199712
BLACK,TRIM2#
main71072-17220-01i198912-199112
LEATHER PACKAGE-*104,BLACK,TRIM2#
main71072-17221-C0i199112-199311
LEATHER PACKAGE-*104,BLACK,TRIM2#
sub71072-17221
main71072-17221-C2i199311
LEATHER PACKAGE-*104,BLACK,TRIM2#
sub71072-17221
main71072-17230-01i198912-199112
LEATHER PACKAGE-*104,BLACK,TRIM2#
main71072-17231-C0i199112-199311
LEATHER PACKAGE-*104,BLACK,TRIM2#
sub71072-17231
main71072-17231-C2i199311
LEATHER PACKAGE-*104,BLACK,TRIM2#
sub71072-17231
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-17242-C1i199311-199503
BLACK,TRIM2#
main71073-17242-C2i199503-199712
BLACK,TRIM2#
main71073-17243-C3i199712
BLACK,TRIM2#
main71073-17250-01i198912-199112
BLACK,TRIM2#
main71073-17250-04i198912-199112
DARK BLUE,TRIM8#
main71073-17251-C0i199112-199311
BLACK,TRIM2#
main71073-17251-J0i199112-199311
DARK BLUE,TRIM8#
main71073-17252-C1i199311-199503
BLACK,TRIM2#
main71073-17252-C3i199503-199712
BLACK,TRIM2#
main71073-17253-C4i199712
BLACK,TRIM2#
main71073-17260-01i198912-199112
BLACK,TRIM2#
main71073-17260-04i198912-199112
DARK BLUE,TRIM8#
main71073-17261-C0i199112-199311
BLACK,TRIM2#
main71073-17261-J0i199112-199311
DARK BLUE,TRIM8#
main71073-17262-C1i199311-199503
BLACK,TRIM2#
main71073-17262-C2i199503-199712
BLACK,TRIM2#
main71073-17263-C3i199712
BLACK,TRIM2#
main71073-17280-01i198912-199112
LEATHER PACKAGE-*104,BLACK,TRIM2#
sub71073-17282
main71073-17281-C0i199112-199311
LEATHER PACKAGE-*104,BLACK,TRIM2#
sub71073-17281
main71073-17281-C3i199311
LEATHER PACKAGE-*104,BLACK,TRIM2#
sub71073-17281
main71073-17290-01i198912-199112
LEATHER PACKAGE-*104,BLACK,TRIM2#
sub71073-17292
main71073-17291-C0i199112-199311
LEATHER PACKAGE-*104,BLACK,TRIM2#
main71073-17293-C3i199311
LEATHER PACKAGE-*104,BLACK,TRIM2#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-17242-C1i199311-199503
BLACK,TRIM2#
main71074-17242-C2i199503-199712
BLACK,TRIM2#
main71074-17243-C3i199712
BLACK,TRIM2#
main71074-17250-01i198912-199112
BLACK,TRIM2#
main71074-17250-04i198912-199112
DARK BLUE,TRIM8#
main71074-17251-C0i199112-199311
BLACK,TRIM2#
main71074-17251-J0i199112-199311
DARK BLUE,TRIM8#
main71074-17252-C1i199311-199503
BLACK,TRIM2#
main71074-17252-C3i199503-199712
BLACK,TRIM2#
main71074-17253-C4i199712
BLACK,TRIM2#
main71074-17260-01i198912-199112
BLACK,TRIM2#
main71074-17260-04i198912-199112
DARK BLUE,TRIM8#
main71074-17261-C0i199112-199311
BLACK,TRIM2#
main71074-17261-J0i199112-199311
DARK BLUE,TRIM8#
main71074-17262-C1i199311-199503
BLACK,TRIM2#
main71074-17262-C2i199503-199712
BLACK,TRIM2#
main71074-17263-C3i199712
BLACK,TRIM2#
main71074-17280-01i198912-199112
LEATHER PACKAGE-*104,BLACK,TRIM2#
sub71074-17282
main71074-17281-C0i199112-199311
LEATHER PACKAGE-*104,BLACK,TRIM2#
main71074-17283-C3i199311
LEATHER PACKAGE-*104,BLACK,TRIM2#
main71074-17290-01i198912-199112
LEATHER PACKAGE-*104,BLACK,TRIM2#
sub71074-17292
main71074-17291-C0i199112-199311
LEATHER PACKAGE-*104,BLACK,TRIM2#
sub71074-17291
main71074-17291-C3i199311
LEATHER PACKAGE-*104,BLACK,TRIM2#
sub71074-17291
71410CCLIP(FOR FRONT SEAT CUSHION)
main90467-10016-01i198912-199308
BLACK,TRIM2#,8#
sub90467-10016¥120
71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71410-17212-C1i199311-199712
BLACK,TRIM2#
main71410-17213-C1i199712
BLACK,TRIM2#
main71410-17230-01i198912-199112
BLACK,TRIM2#
main71410-17230-04i198912-199112
DARK BLUE,TRIM8#
main71410-17231-C0i199112-199311
BLACK,TRIM2#
main71410-17231-J0i199112-199311
DARK BLUE,TRIM8#
main71410-17232-C1i199311-199712
BLACK,TRIM2#
main71410-17233-C1i199712
BLACK,TRIM2#
main71410-17240-01i198912-199112
BLACK,TRIM2#
main71410-17240-04i198912-199112
DARK BLUE,TRIM8#
main71410-17241-C0i199112-199311
BLACK,TRIM2#
main71410-17241-J0i199112-199311
DARK BLUE,TRIM8#
main71410-17242-C1i199311-199712
BLACK,TRIM2#
main71410-17243-C1i199712
BLACK,TRIM2#
main71410-17260-01i198912-199112
LEATHER PACKAGE-*104,BLACK,TRIM2#
main71410-17261-C0i199112-199311
LEATHER PACKAGE-*104,BLACK,TRIM2#
sub71410-17261
main71410-17261-C1i199311
LEATHER PACKAGE-*104,BLACK,TRIM2#
sub71410-17261
main71410-17261-C1i199311-199501
LEATHER PACKAGE-*104,BLACK,TRIM23
sub71410-17261
main71410-17270-01i198912-199112
LEATHER PACKAGE-*104,BLACK,TRIM2#
main71410-17271-C0i199112-199311
LEATHER PACKAGE-*104,BLACK,TRIM2#
sub71410-17271¥134,000
main71410-17271-C1i199311
LEATHER PACKAGE-*104,BLACK,TRIM2#
sub71410-17271¥134,000
71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
main71420-17212-C1i199311-199712
BLACK,TRIM2#
main71420-17213-C1i199712
BLACK,TRIM2#
main71420-17230-01i198912-199112
BLACK,TRIM2#
main71420-17230-04i198912-199112
DARK BLUE,TRIM8#
main71420-17231-C0i199112-199311
BLACK,TRIM2#
main71420-17231-J0i199112-199311
DARK BLUE,TRIM8#
main71420-17232-C1i199311-199712
BLACK,TRIM2#
main71420-17233-C1i199712
BLACK,TRIM2#
main71420-17240-01i198912-199112
BLACK,TRIM2#
main71420-17240-04i198912-199112
DARK BLUE,TRIM8#
main71420-17241-C0i199112-199311
BLACK,TRIM2#
main71420-17241-J0i199112-199311
DARK BLUE,TRIM8#
main71420-17242-C1i199311-199712
BLACK,TRIM2#
main71420-17243-C1i199712
BLACK,TRIM2#
main71420-17260-01i198912-199112
LEATHER PACKAGE-*104,BLACK,TRIM2#
main71420-17261-C0i199112-199311
LEATHER PACKAGE-*104,BLACK,TRIM2#
sub71420-17261
main71420-17261-C1i199311-199501
LEATHER PACKAGE-*104,BLACK,TRIM23
sub71420-17261
main71420-17261-C1i199311
LEATHER PACKAGE-*104,BLACK,TRIM2#
sub71420-17261
main71420-17270-01i198912-199112
LEATHER PACKAGE-*104,BLACK,TRIM2#
main71420-17271-C0i199112-199311
LEATHER PACKAGE-*104,BLACK,TRIM2#
sub71420-17271
main71420-17271-C1i199311
LEATHER PACKAGE-*104,BLACK,TRIM2#
sub71420-17271
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71430-17312-C2i199311-199712
BLACK,TRIM2#
main71430-17313-C2i199712
BLACK,TRIM2#
main71430-17320-01i198912-199112
BLACK,TRIM2#
main71430-17320-04i198912-199112
DARK BLUE,TRIM8#
main71430-17321-C0i199112-199311
BLACK,TRIM2#
main71430-17321-J0i199112-199311
DARK BLUE,TRIM8#
main71430-17322-C2i199311-199712
BLACK,TRIM2#
main71430-17323-C2i199712
BLACK,TRIM2#
main71430-17330-01i198912-199112
BLACK,TRIM2#
main71430-17330-04i198912-199112
DARK BLUE,TRIM8#
main71430-17331-C0i199112-199311
BLACK,TRIM2#
main71430-17331-J0i199112-199311
DARK BLUE,TRIM8#
main71430-17332-C1i199311-199712
BLACK,TRIM2#
main71430-17333-C1i199712
BLACK,TRIM2#
main71430-17350-01i198912-199112
LEATHER PACKAGE-*104,BLACK,TRIM2#
main71430-17351-C0i199112-199311
LEATHER PACKAGE-*104,BLACK,TRIM2#
sub71430-17351
main71430-17351-C1i199311-199501
LEATHER PACKAGE-*104,BLACK,TRIM23
sub71430-17351
main71430-17351-C1i199311
LEATHER PACKAGE-*104,BLACK,TRIM2#
sub71430-17351
main71430-17360-01i198912-199112
LEATHER PACKAGE-*104,BLACK,TRIM2#
main71430-17361-C0i199112-199311
LEATHER PACKAGE-*104,BLACK,TRIM2#
main71430-17362-C3i199311
LEATHER PACKAGE-*104,BLACK,TRIM2#
sub71430-17362
main71430-17370-01i198912-199112
BLACK,TRIM2#
main71430-17370-04i198912-199112
DARK BLUE,TRIM8#
main71430-17371-C0i199112-199208
BLACK,TRIM2#
main71430-17371-J0i199112-199208
DARK BLUE,TRIM8#
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
main71440-17312-C2i199311-199712
BLACK,TRIM2#
main71440-17313-C2i199712
BLACK,TRIM2#
main71440-17320-01i198912-199112
BLACK,TRIM2#
main71440-17320-04i198912-199112
DARK BLUE,TRIM8#
main71440-17321-C0i199112-199311
BLACK,TRIM2#
main71440-17321-J0i199112-199311
DARK BLUE,TRIM8#
main71440-17322-C1i199311-199712
BLACK,TRIM2#
main71440-17323-C1i199712
BLACK,TRIM2#
main71440-17330-01i198912-199112
BLACK,TRIM2#
main71440-17330-04i198912-199112
DARK BLUE,TRIM8#
main71440-17331-C0i199112-199311
BLACK,TRIM2#
main71440-17331-J0i199112-199311
DARK BLUE,TRIM8#
main71440-17332-C2i199311-199712
BLACK,TRIM2#
main71440-17333-C2i199712
BLACK,TRIM2#
main71440-17350-01i198912-199112
LEATHER PACKAGE-*104,BLACK,TRIM2#
main71440-17351-C0i199112-199311
LEATHER PACKAGE-*104,BLACK,TRIM2#
main71440-17352-C2i199311
LEATHER PACKAGE-*104,BLACK,TRIM2#
main71440-17360-01i198912-199112
LEATHER PACKAGE-*104,BLACK,TRIM2#
main71440-17361-C0i199112-199311
LEATHER PACKAGE-*104,BLACK,TRIM2#
sub71440-17361
main71440-17361-C1i199311
LEATHER PACKAGE-*104,BLACK,TRIM2#
sub71440-17361
71505PAD SUB-ASSY, FRONT SEATBACK W/FRAME, RH
main71505-17060i¥25,200198912-199101
sub71505-17070¥24,900
main71505-17070i¥24,900198912-199112
main71505-17071i¥24,900199112-199311
main71505-17080i¥26,000198912-199112
main71505-17081i¥26,000199112-199311
main71505-17082i¥26,200199311
LEATHER PACKAGE-*104
71506PAD SUB-ASSY, FRONT SEATBACK W/FRAME, LH
main71506-17060i¥25,200198912-199101
sub71506-17070¥24,900
main71506-17070i¥24,900199101-199112
main71506-17071i¥24,900199112
main71506-17080i¥26,000198912-199112
main71506-17081i¥26,000199112-199311
main71506-17082i¥26,200199311
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71511-17080i¥18,100198912-199112
main71511-17081i¥15,300199112
main71511-17090i¥18,100198912-199112
main71511-17091i¥15,300199112
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71512-17090i¥18,100198912-199112
main71512-17091i¥15,300199112
main71512-17100i¥18,100198912-199112
main71512-17101i¥15,300199112
71553BPAD, FRONT SEATBACK, B
main71553-17010i¥1,550199311
LEATHER PACKAGE-*104
main71553-17010i¥1,550199112-199311
main71553-17010i¥1,550198912-199112
RH
main71553-17020i¥1,550199112-199311
main71553-17020i¥1,550198912-199112
RH
71553CPAD, FRONT SEATBACK, C
main71553-17010i¥1,550198912
main71553-17020i¥1,550198912
71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71610-17030i¥21,900199112
main71610-20470i¥13,800198912-199112
71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71610-17030i¥21,900199112
main71610-20470i¥13,800198912-199112
71831DCOVER, FRONT SEAT HINGE, RH
main71831-16010i¥210199212
main71831-17010i¥760198912-199212
sub71831-16010¥210
71832DCOVER, FRONT SEAT HINGE, LH
main71831-16010i¥210199212
main71831-17010i¥760198912-199212
sub71831-16010¥210
71910AHEADREST ASSY, FRONT SEAT
main71910-17110-01i198912-199311
BLACK,TRIM2#
main71910-17110-04i198912-199311
DARK BLUE,TRIM8#
main71910-17111-C0i199311
BLACK,TRIM2#
main71910-17130-01i198912-199311
LEATHER PACKAGE-*104,BLACK,TRIM2#
sub71910-17130¥47,500
main71910-17130-C1i199311
LEATHER PACKAGE-*104,BLACK,TRIM2#
sub71910-17130¥47,500
main71910-17140-01i198912-199208
BLACK,TRIM2#
main71910-17140-04i198912-199208
DARK BLUE,TRIM8#
main71910-17141-C0i199311
BLACK,TRIM2#
71931SUPPORT, FRONT SEAT HEADREST
main71930-17020-01i198912-199311
W(LOCK),BLACK,TRIM2#
sub71930-17020¥1,340
main71930-17020-04i198912-199311
W(LOCK),DARK BLUE,TRIM8#
sub71930-17020¥1,340
main71930-17020-C0i199311-199712
W(LOCK),BLACK,TRIM2#
sub71930-17020¥1,340
main71930-17021-C0i199712
W(LOCK),BLACK,TRIM2#
main71931-17010-01i198912-199311
W/O(LOCK),BLACK,TRIM2#
sub71931-17010¥1,020
main71931-17010-04i198912-199311
W/O(LOCK),DARK BLUE,TRIM8#
sub71931-17010¥1,020
main71931-17010-C0i199311
W/O(LOCK),BLACK,TRIM2#
sub71931-17010¥1,020
72352PLATE, SIDE SUPPORT HANDLE SHAFT SET
main72352-20010i¥310199311
LEATHER PACKAGE-*104
main72352-20010i¥310199112-199311
72356NUT, SIDE SUPPORT, RH
main72356-20010i¥370199112-199311
main72356-20010i¥370199311
LEATHER PACKAGE-*104
72457KNOB, VERTICAL SEAT ADJUSTER
main72457-22020-01i198912-199311
BLACK,TRIM2#
sub72457-22020¥1,140
main72457-22020-14i198912-199311
DARK BLUE,TRIM8#
sub72457-22020¥1,140
main72457-22020-C0i199311
BLACK,TRIM2#
sub72457-22020¥1,140
72457CKNOB, SIDE SUPPORT ADJUSTER
main72457-22020-01i198912-199311
BLACK,TRIM2#
sub72457-22020¥1,140
main72457-22020-14i198912-199311
DARK BLUE,TRIM8#
sub72457-22020¥1,140
main72457-22020-C0i199311
BLACK,TRIM2#
sub72457-22020¥1,140
72750DADJUSTER ASSY, LUMBAR SUPPORT, RH
main72750-17020i¥9,200198912-199311
main72750-17020i¥9,200199311
LEATHER PACKAGE-*104
72791LEVER, LUMBAR SUPPORT
main72791-20030-01i198912-199103
BLACK,TRIM2#
sub72791-20030¥1,160
main72791-20030-14i198912-199103
DARK BLUE,TRIM8#
sub72791-20030¥1,160
main72791-22020-11i199103-199311
BLACK,TRIM2#
sub72791-22020¥1,140
main72791-22020-C0i199311
LEATHER PACKAGE-*104,BLACK,TRIM2#
sub72791-22020¥1,140
main72791-22020-C0i199311
BLACK,TRIM2#
sub72791-22020¥1,140
main72791-22020-J0i199103-199311
DARK BLUE,TRIM8#
sub72791-22020¥1,140
72791ARING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER)
main90520-01002i¥180199103-199311
sub90520-01274¥160
main90520-01274i¥160199311
LEATHER PACKAGE-*104
main90520-01274i¥160198912-199112
7279120030LEVER, LUMBAR SUPPORT
main72791-20030¥1,160
7279122020LEVER, LUMBAR SUPPORT
main72791-22020¥1,140
9011908970
main90119-08970¥90
9038612042
main90386-12042¥200
9046818008
main90468-18008¥80
9046818071
main90468-18071¥160
9052001006
main90520-01006¥80
9338316016
main93383-16016¥120

36 parts on this diagram · 4 diagrams in section

FRONT SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
