FRONT DOOR PANEL & GLASS

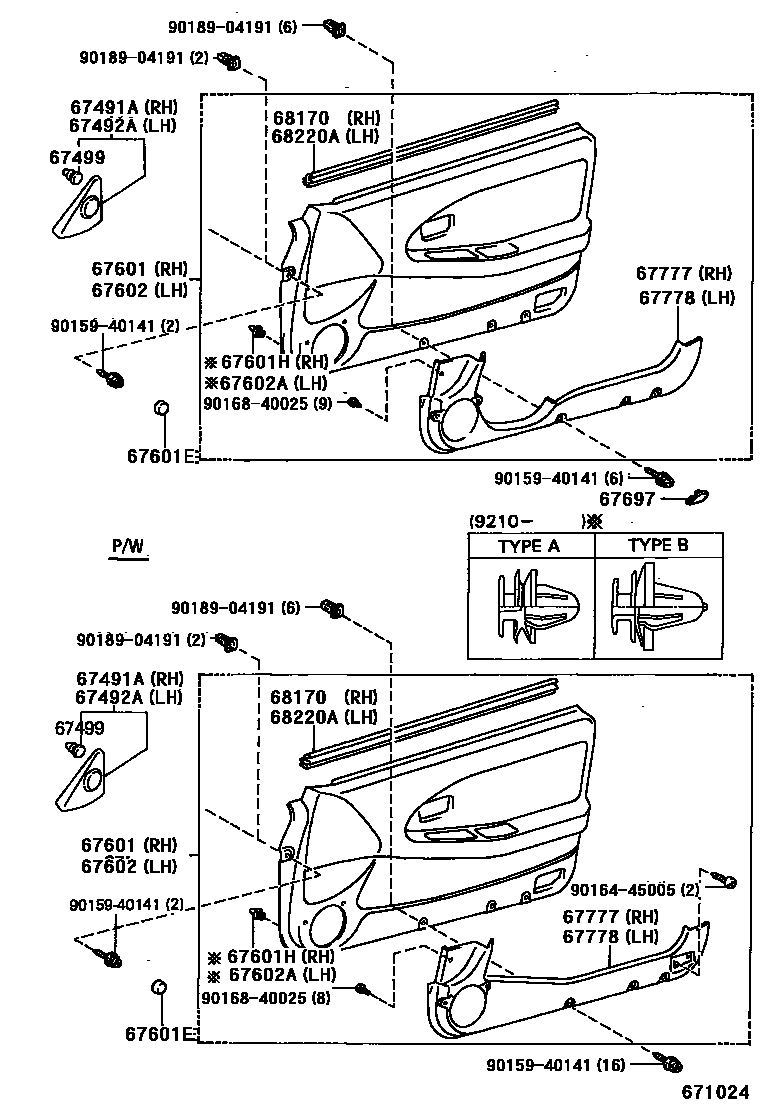

Parts diagram
67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
main67491-17040i198912-199112
main67491-17041i199112
67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
main67492-17040i198912-199112
main67492-17041i199112
67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
main67499-32010i198912
67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH
main67610-17360-01i199112-199311
BLACK,TRIM2#
main67610-17360-01i199001-199112
W(POWER WINDOW),BLACK,TRIM2#
main67610-17360-04i199112-199311
DARK BLUE,TRIM8#
main67610-17360-04i199001-199112
W(POWER WINDOW),DARK BLUE,TRIM8#
main67610-17361-C0i199311-199501
BLACK,TRIM2#
main67610-17362-C0i199501-199712
BLACK,TRIM2#
sub67610-17432
main67610-17363-C0i199712
BLACK,TRIM2#
sub67610-17433
main67610-17370-01i199001-199311
LEATHER PACKAGE-*104,BLACK,TRIM2#
main67610-17370-C2i199311-199501
LEATHER PACKAGE-*104,BLACK,TRIM2#
main67610-17371-C2i199501
LEATHER PACKAGE-*104,BLACK,TRIM2#
sub67610-17450
main67610-17390-01i198912-199112
BLACK,TRIM2#
main67610-17390-04i198912-199112
DARK BLUE,TRIM8#
main67610-17400-01i198912-199112
BLACK,TRIM2#
main67610-17400-04i198912-199112
DARK BLUE,TRIM8#
main67610-17430-C0i199206-199311
BLACK,TRIM2#
main67610-17430-J0i199206-199311
DARK BLUE,TRIM8#
main67610-17431-C1i199311-199501
BLACK,TRIM2#
main67610-17432-C1i199501-199712
BLACK,TRIM2#
main67610-17433-C1i199712
BLACK,TRIM2#
main67610-17440-C1i199206-199311
LEATHER PACKAGE-*104,BLACK,TRIM2#
main67610-17440-C2i199311
LEATHER PACKAGE-*104,BLACK,TRIM2#
main67610-17450-C0i199501
LEATHER TYPE-*104,NEEDLE PUNCH,BLACK,TRIM2#
67601ECAP(FOR FRONT DOOR TRIM BOARD)
main90339-10002-01i198912-199311
BLACK,TRIM2#
sub90339-10002
main90339-10002-C0i199311
BLACK,TRIM2#
sub90339-10002
main90339-10002-J1i198912-199311
DARK BLUE,TRIM8#
sub90339-10002
67601HRETAINER, DOOR TRIM, RH
main67771-12040i198912-199112
FOR BOARD
main67771-12040i199112-199210
main67771-17020i199210
TYPE A
main67771-33020i199210
TYPE B
main67771-89104i198912-199112
FOR POCKET
67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH
main67620-17320-01i199001-199112
W(POWER WINDOW),BLACK,TRIM2#
main67620-17320-01i199112-199311
BLACK,TRIM2#
main67620-17320-04i199001-199112
W(POWER WINDOW),DARK BLUE,TRIM8#
main67620-17320-04i199112-199311
DARK BLUE,TRIM8#
main67620-17321-C0i199311-199501
BLACK,TRIM2#
main67620-17322-C0i199501-199712
BLACK,TRIM2#
main67620-17323-C0i199712
BLACK,TRIM2#
main67620-17330-01i199001-199311
LEATHER PACKAGE-*104,BLACK,TRIM2#
main67620-17330-C2i199311-199501
LEATHER PACKAGE-*104,BLACK,TRIM2#
main67620-17331-C2i199501
LEATHER PACKAGE-*104,BLACK,TRIM2#
main67620-17340-01i198912-199112
BLACK,TRIM2#
main67620-17340-04i198912-199112
DARK BLUE,TRIM8#
main67620-17360-01i198912-199112
BLACK,TRIM2#
main67620-17360-04i198912-199112
DARK BLUE,TRIM8#
main67620-17390-C0i199206-199311
BLACK,TRIM2#
sub67620-17320
main67620-17390-J0i199206-199311
DARK BLUE,TRIM8#
sub67620-17320
main67620-17391-C1i199311-199501
BLACK,TRIM2#
main67620-17392-C1i199501-199712
BLACK,TRIM2#
sub67620-17322
main67620-17393-C1i199712
BLACK,TRIM2#
sub67620-17323
main67620-17400-C1i199206-199311
LEATHER PACKAGE-*104,BLACK,TRIM2#
main67620-17400-C2i199311
LEATHER PACKAGE-*104,BLACK,TRIM2#
main67620-17410-C0i199501
LEATHER TYPE-*104,NEEDLE PUNCH,BLACK,TRIM2#
sub67620-17331
67602ARETAINER, DOOR TRIM, LH
main67771-12040i198912-199112
FOR BOARD
main67771-12040i199112-199210
main67771-17020i199210
TYPE A
main67771-33020i199210
TYPE B
main67771-89104i198912-199112
FOR POCKET
67697COVER, FRONT DOOR TRIM POCKET
main67697-17010-01i198912-199112
BLACK,TRIM2#
sub67697-17010
main67697-17010-04i198912-199112
DARK BLUE,TRIM8#
sub67697-17010
67777POCKET, FRONT DOOR TRIM, RH
main67770-17030-01i199001-199112
W(POWER WINDOW),BLACK,TRIM2#
main67770-17030-01i199112-199311
BLACK,TRIM2#
main67770-17030-04i199001-199112
W(POWER WINDOW),DARK BLUE,TRIM8#
main67770-17030-04i199112-199311
DARK BLUE,TRIM8#
main67770-17030-C0i199311-199501
BLACK,TRIM2#
main67770-17030-C1i199501
LEATHER TYPE-*104,CUT PILE,BLACK,TRIM2#
main67770-17040-C1i199501
BLACK,TRIM2#
main67777-17040-01i198912-199112
BLACK,TRIM2#
sub67777-17040
main67777-17040-04i198912-199112
DARK BLUE,TRIM8#
sub67777-17040
67778POCKET, FRONT DOOR TRIM, LH
main67778-17040-01i198912-199112
BLACK,TRIM2#
sub67778-17040
main67778-17040-04i198912-199112
DARK BLUE,TRIM8#
sub67778-17040
main67780-17030-01i199112-199311
BLACK,TRIM2#
sub67780-17030
main67780-17030-01i199001-199112
W(POWER WINDOW),BLACK,TRIM2#
sub67780-17030
main67780-17030-04i199001-199112
W(POWER WINDOW),DARK BLUE,TRIM8#
sub67780-17030
main67780-17030-04i199112-199311
DARK BLUE,TRIM8#
sub67780-17030
main67780-17030-C0i199311-199501
BLACK,TRIM2#
sub67780-17030
main67780-17030-C1i199501
LEATHER TYPE-*104,CUT PILE,BLACK,TRIM2#
sub67780-17030
main67780-17050-C1i199501
BLACK,TRIM2#
68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
main68170-17020i198912
68220AWEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER LH
main68220-17020i198912
9015940141
main90159-40141
9016445005
main90164-45005
9016840025
main90168-40025
9018904191
main90189-04191

17 parts on this diagram · 5 diagrams in section
