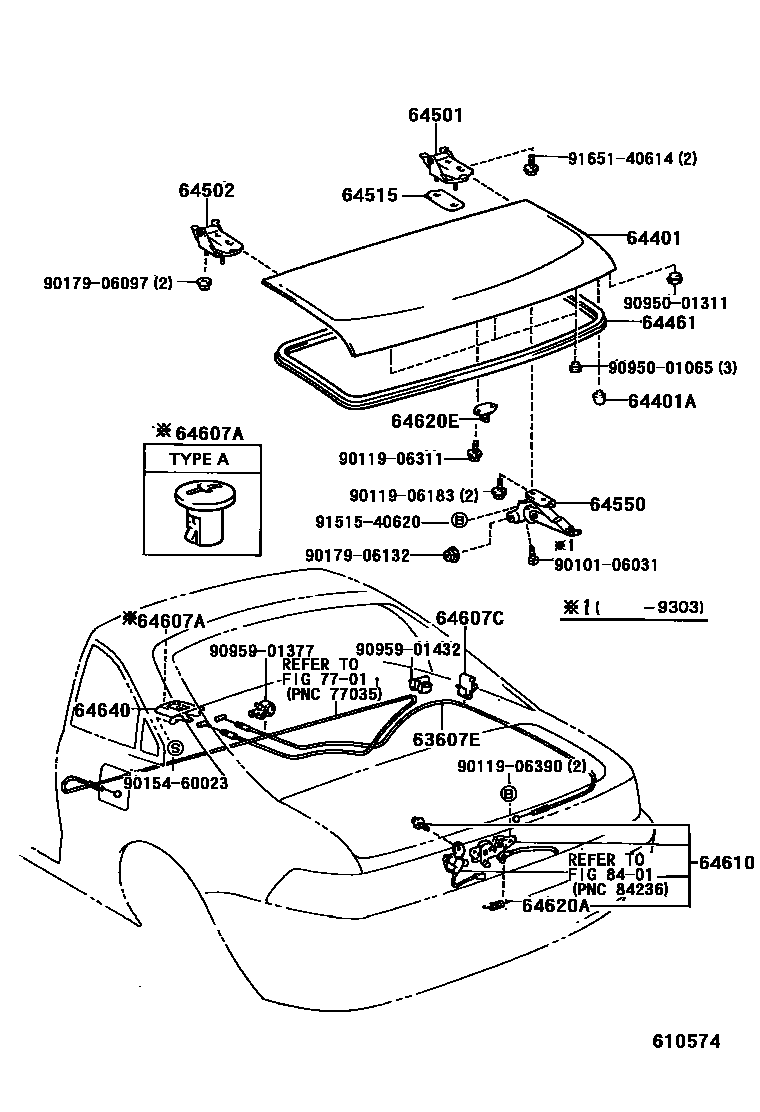

LUGGAGE COMPARTMENT DOOR & LOCK
63607ECABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
W(REAR SPOILER)
64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64501HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, RH
64502HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, LH
64515PAD, LUGGAGE DOOR HINGE
64550BALANCER ASSY, LUGGAGE COMPARTMENT DOOR
W(REAR SPOILER)
64607ACLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE)
64607CCLAMP, NO.3(FOR LUGGAGE DOOR LOCK CONTROL CABLE)
64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64620ASPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)
64620ESTRIKER ASSY, LUGGAGE COMPARTMENT DOOR
64640OPENER ASSY, LUGGAGE DOOR LOCK
7701
8401
9010106031
main90101-06031
9011906183
main90119-06183
9011906311
main90119-06311
9011906390
main90119-06390
9015460023
main90154-60023
9017906097
main90179-06097
9017906132
main90179-06132
9095001065
main90950-01065
9095001311
main90950-01311
9095901377
main90959-01377
9095901432
main90959-01432
9151540620
main91515-40620
9165140614
main91651-40614
29 parts on this diagram · 1 diagram in section
