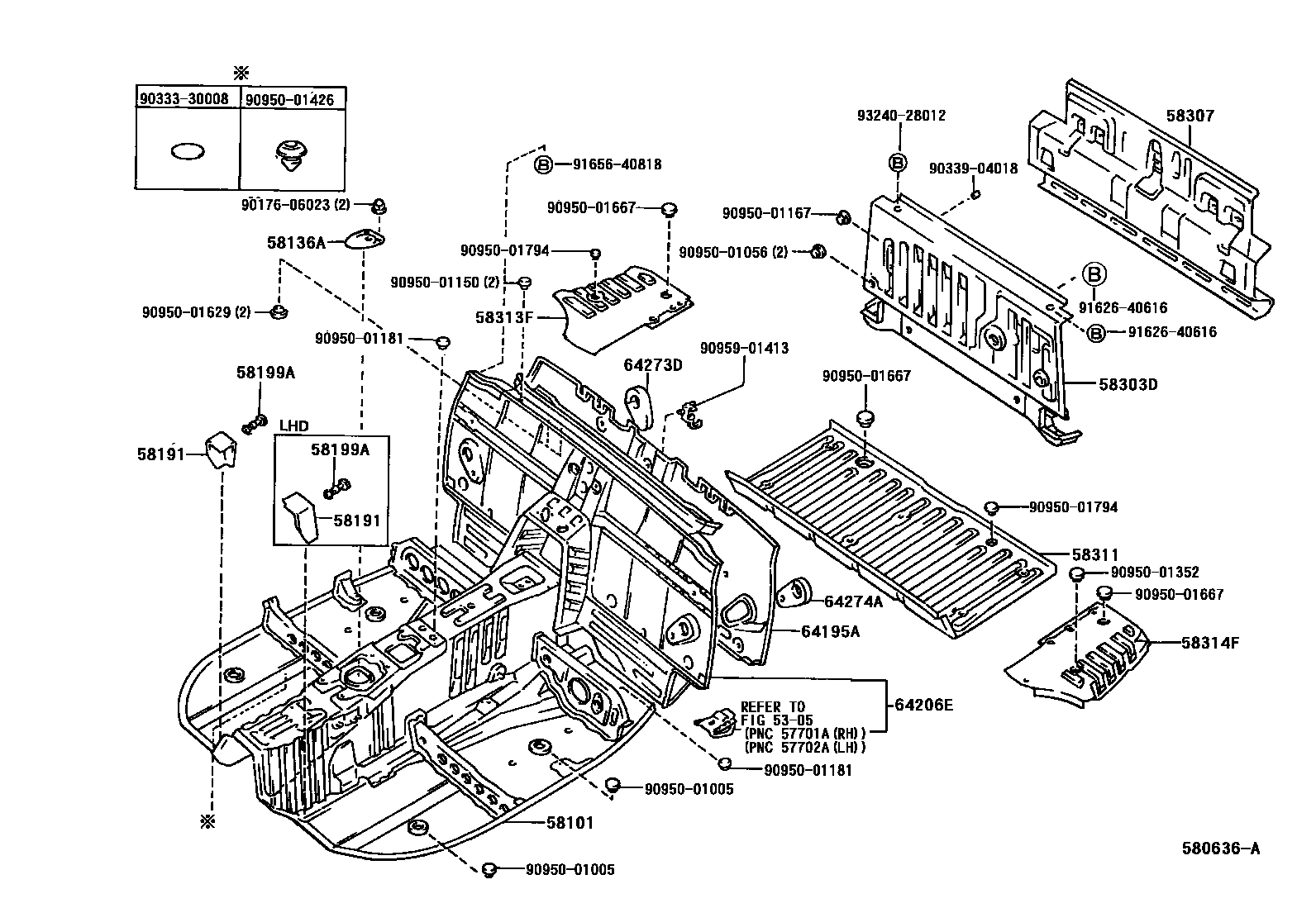

FLOOR PAN & LOWER BACK PANEL

5305

58101PAN SUB-ASSY, FRONT FLOOR

main58101-17906iSW20..RHD¥62,700198912-199311

main58101-17907iSW20..LHD¥62,700198912-199311

58136ACOVER, FRONT FLOOR SERVICE HOLE

main58136-17020iSW20¥750198912

58191FOOTREST, FRONT FLOOR

main58191-17020iSW20..RHD¥2,570198912-199112

main58191-17030iSW20..RHD¥2,690199112

main58192-17020iSW20..LHD¥2,190198912

58199ACLIP, FOOTREST, NO.2

main58198-12030iSW20..RHD¥390199112

main58199-22020iSW20..LHD¥180198912-199112

58303DPANEL SUB-ASSY, REAR FLOOR PARTITION

main58303-17050iSW20¥15,100198912

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-17070iSW20¥20,800198912-199311

sub58307-17071¥20,800

sub90333-25001¥140

main58307-17071iSW20¥20,800199311

58311PAN, REAR FLOOR

main58311-17020iSW20¥18,600198912

58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH

main58313-17030iSW20¥3,790198912

58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH

main58314-17030iSW20¥3,790198912

64195AINSULATOR, ROOM PARTITION PANEL

main64195-17030iSW20¥11,200198912

64206EPANEL SUB-ASSY, ROOM PARTITION

main64206-17090iSW20¥78,800198912

64273DPAD, ROOM PARTITION, NO.1

main64273-17010iSW20¥1,320198912

64274APAD, ROOM PARTITION, NO.2

main64274-17010iSW20¥1,550198912

9017606023

main90176-06023¥80

9033330008

main90333-30008¥70

9033904018

main90339-04018¥170

9095001005

main90950-01005¥400

9095001056

main90950-01056¥230

9095001150

main90950-01150¥460

9095001167

main90950-01167¥270

9095001181

main90950-01181¥220

9095001352

main90950-01352¥270

9095001426

main90950-01426¥260

9095001629

main90950-01629¥220

9095001667

main90950-01667¥290

9095001794

main90950-01794¥140

9095901413

main90959-01413¥350

9162640616

main91626-40616¥110

9165640818

main91656-40818¥140

9324028012

main93240-28012¥130

31 parts on this diagram · 1 diagram in section
