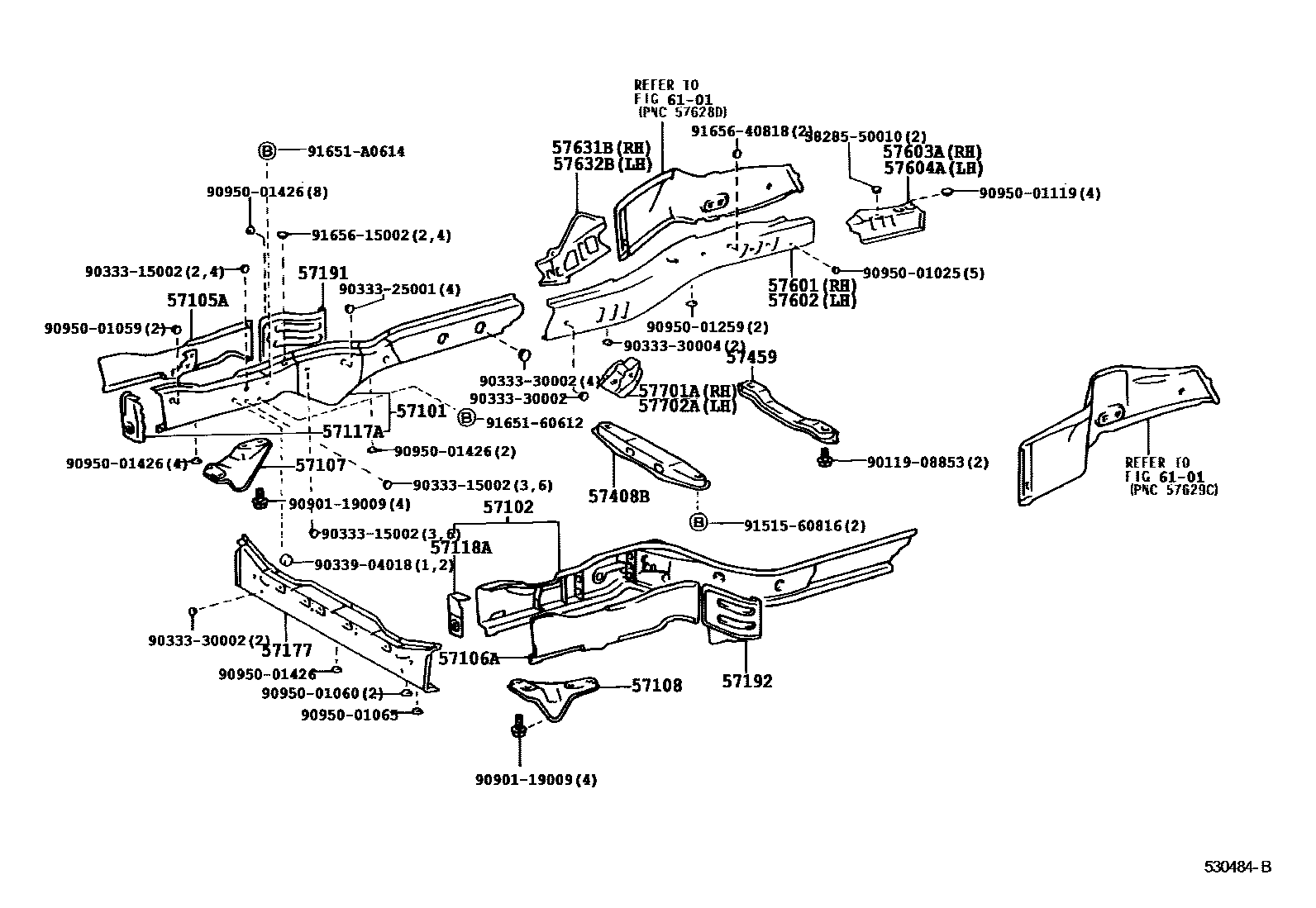

FLOOR SIDE MEMBER

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-17060iSW20198912-199112

sub57101-17061

main57101-17061iSW20199112

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-17100iSW20198912-199112

sub57102-17101

main57102-17101iSW20199112

57105APLATE SUB-ASSY, FRONT SIDE MEMBER, RH

main57105-17900iSW20198912-199311

sub57105-17901

main57105-17901iSW20199311

57106APLATE SUB-ASSY, FRONT SIDE MEMBER, LH

main57106-17900iSW20198912-199311

sub57106-17901

main57106-17901iSW20199311

57107BRACKET SUB-ASSY, STRUT BAR, RH

main57107-17040iSW20198912-199112

main57107-17050iSW20199112

57108BRACKET SUB-ASSY, STRUT BAR, LH

main57108-17040iSW20198912-199112

main57108-17050iSW20199112

57117AREINFORCEMENT, FRONT BUMPER MOUNTING

main57117-17020iSW20198912

57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH

main57118-17010iSW20198912

57177CROSSMEMBER, FRONT SIDE MEMBER TO DASH PANEL

main57103-17020iSW20198912

57191PLATE, FRONT SIDE MEMBER, OUTER REAR RH

main57191-17040iSW20198912

57192PLATE, FRONT SIDE MEMBER, OUTER REAR LH

main57192-17040iSW20198912

57408BMEMBER SUB-ASSY, FRONT FLOOR CROSS

main57408-17020iSW20198912

57459MEMBER, FRONT FLOOR CROSS, NO.2

main57459-17020iSW20198912

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-17050iSW20..CP198912-199112

sub57601-17060

main57601-17060iSW20..TBR198912-199112

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-17080iSW20..CP198912-199112

sub57602-17090

main57602-17090iSW20..TBR198912-199112

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-17030iSW20198912

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57604-17030iSW20198912

57631BREINFORCEMENT, REAR FLOOR SIDE MEMBER, FRONT RH

main57631-17020iSW20198912

57632BREINFORCEMENT, REAR FLOOR SIDE MEMBER, FRONT LH

main57632-17020iSW20198912

57701ABRACKET SUB-ASSY, REAR STRUT BAR, RH

main57701-17010iSW20198912

57702ABRACKET SUB-ASSY, REAR STRUT BAR, LH

main57702-17010iSW20198912

6101

5828550010PLATE, PARKING BRAKE DUST SET

main58285-50010

9011908853

main90119-08853

9033315002

main90333-15002

9033325001

main90333-25001

9033330002

main90333-30002

9033330004

main90333-30004

9033904018

main90339-04018

9090119009

main90901-19009

9095001025

main90950-01025

9095001059

main90950-01059

9095001060

main90950-01060

9095001065

main90950-01065

9095001119

main90950-01119

9095001259

main90950-01259

9095001426

main90950-01426

9151560816

main91515-60816

9165160612

main91651-60612

91651A0614

main91651-A0614

9165615002

main91656-15002

9165640818

main91656-40818

42 parts on this diagram · 1 diagram in section
