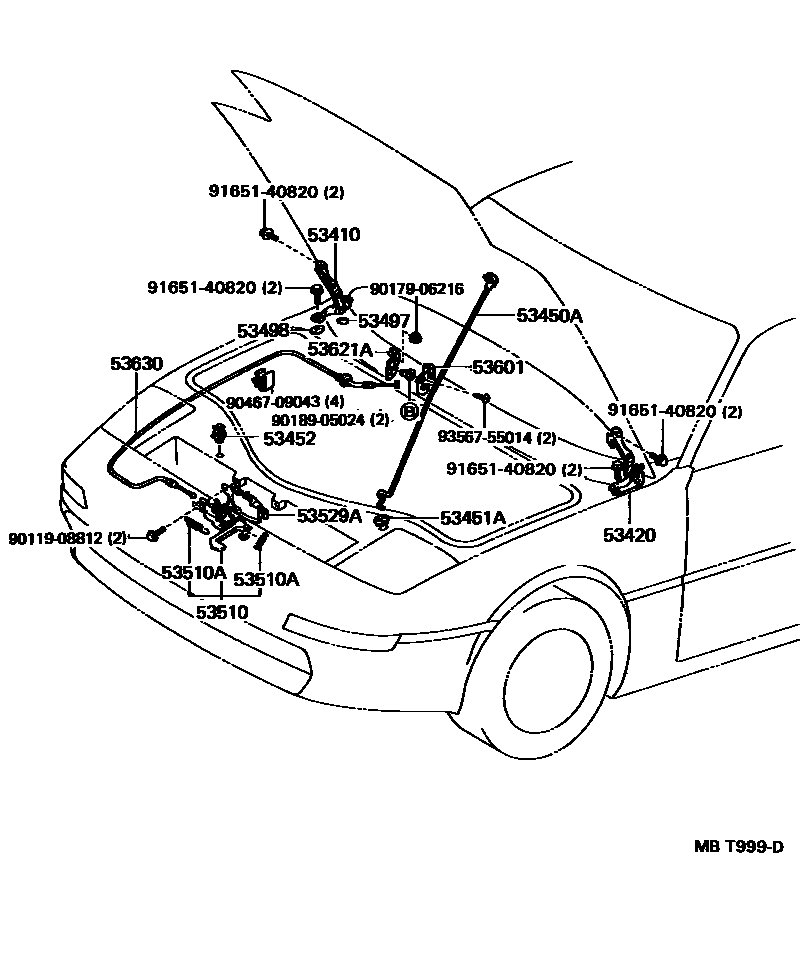

HOOD LOCK & HINGE
53410HINGE ASSY, HOOD, RH
53420HINGE ASSY, HOOD, LH
53450ASUPPORT ASSY, HOOD, LH
53451AGROMMET(FOR HOOD SUPPORT ROD)
53497PAD, HOOD HINGE, NO.1
T=1.0
53498PAD, HOOD HINGE, NO.2
T=1.0
53510LOCK ASSY, HOOD
W(THEFT-DETERRENT SYSTEM)
W(THEFT-DETERRENT SYSTEM)
53510ASPRING, TENSION(FOR HOOD LOCK)
WD=0.9,WD=0.9
WD=0.9,CW=20.75,WD=0.9 OD=9.0
WD=0.9,CW=20.75,WD=0.9
WD=2.0,CW=17,WD=2.0
WD=2.0,WD=2.0
WD=2.0,WD=2.0 OD=13.5
53529APLATE, HOOD LOCK PROTECTOR, REAR
53601LEVER SUB-ASSY, HOOD LOCK CONTROL
53630CABLE ASSY, HOOD LOCK CONTROL
9011908812
main90119-08812
9017906216
main90179-06216
9018905024
main90189-05024
9046709043
main90467-09043
9165140820
main91651-40820
9356755014
main93567-55014
19 parts on this diagram · 1 diagram in section
