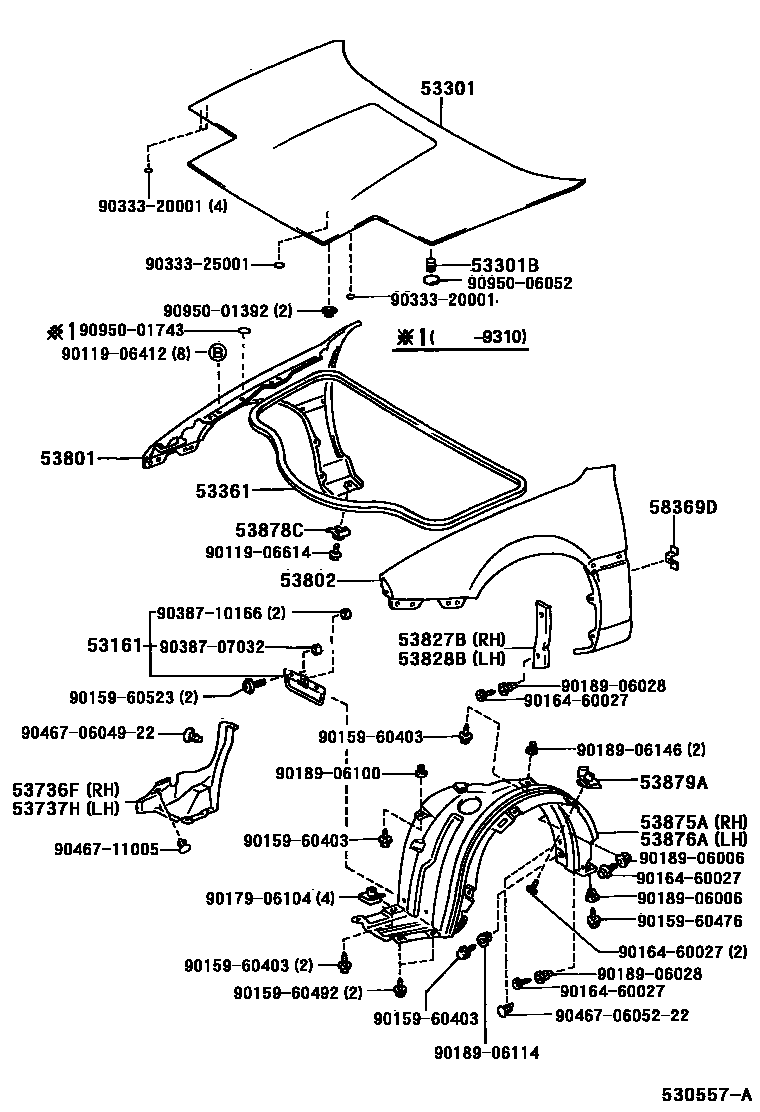

HOOD & FRONT FENDER

53161DEFLECTOR, FRONT BUMPER STONE

main53161-17010iSW20199712

53301HOOD SUB-ASSY

main53301-17060iSW20198912

53301BCUSHION, HOOD BUMPER

main90541-15111iSW20198912

53361WEATHERSTRIP, HOOD

main53361-17010iSW20198912

53736FSEAL, FRONT FENDER APRON, RH

main53736-17010iSW20198912

53737HSEAL, FRONT FENDER APRON, LH

main53737-17010iSW20198912

53801FENDER SUB-ASSY, FRONT RH

main53801-17100iSW20198912-199205

53802FENDER SUB-ASSY, FRONT LH

main53802-17080iSW20198912-199205

53827BPROTECTOR, FRONT FENDER SIDE PANEL

main53827-17020iSW20198912

53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-17020iSW20198912

53875ALINER, FRONT FENDER, RH

main53805-17010iSW20199712

main53875-17020iSW20198912-199507

sub53875-17030

main53875-17030iSW20199507-199712

53876ALINER, FRONT FENDER, LH

main53806-17010iSW20199712

main53876-17020iSW20198912-199507

sub53876-17030

main53876-17030iSW20199507-199712

53878CSPACER, FRONT FENDER

main53878-14020iSW20..TWC198912-199205

53879ARETAINER, FRONT FENDER LINER

main53879-14010iSW20198912

58369DBRACKET, FUEL TUBE, NO.3

main58369-32010iSW20198912-199205

9011906412

main90119-06412

9011906614

main90119-06614

9015960403

main90159-60403

9015960476

main90159-60476

9015960492

main90159-60492

9015960523

main90159-60523

9016460027

main90164-60027

9017906104

main90179-06104

9018906006

main90189-06006

9018906028

main90189-06028

9018906100

main90189-06100

9018906114

main90189-06114

9018906146

main90189-06146

9033320001

main90333-20001

9033325001

main90333-25001

9038707032

main90387-07032

9038710166

main90387-10166

904670604922

main90467-0604922

904670605222

main90467-0605222

9046711005

main90467-11005

9095001392

main90950-01392

9095001743

main90950-01743

9095006052

main90950-06052

38 parts on this diagram · 1 diagram in section
