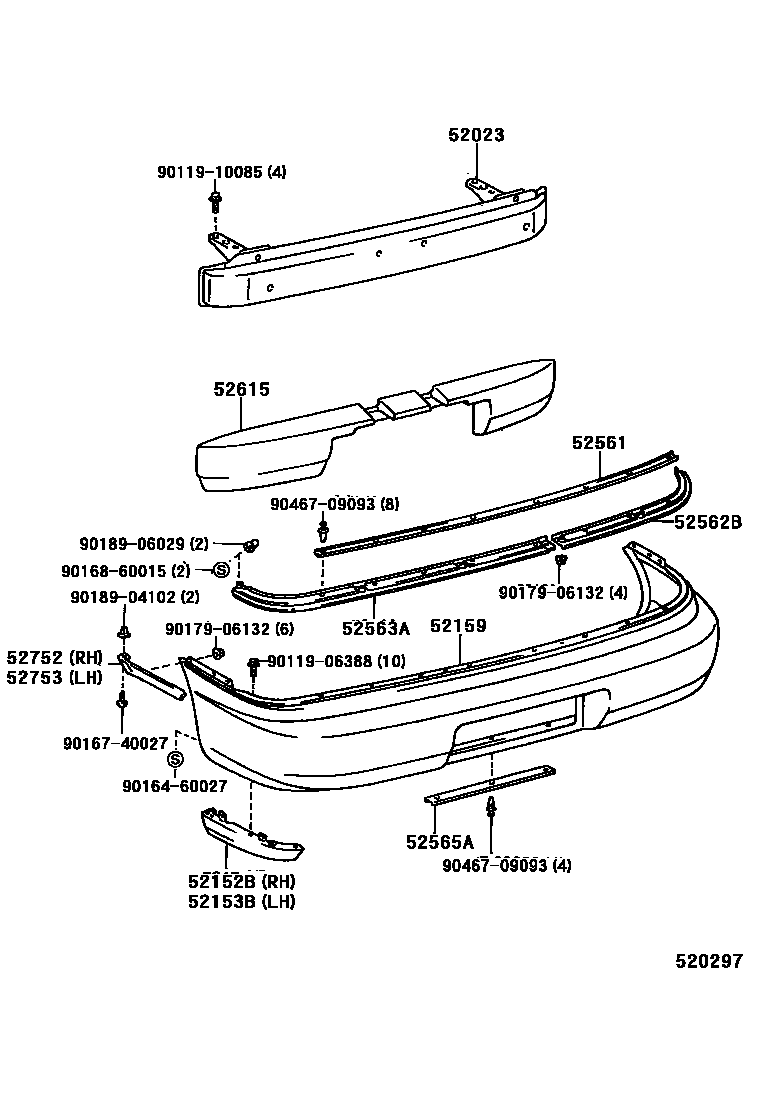

REAR BUMPER & BUMPER STAY

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-17030iSW20199001

52152BEXTENSION, REAR BUMPER, RH

main52152-17010iSW20198912-199311

main52152-17011-A0iSW20199311

SUPER WHITE 2,040

sub52152-17010

main52152-17011-B0iSW20199311-199606

BL.GRAY AMC,187

sub52152-17010

main52152-17011-B1iSW20199606-199712

SILVER ME,199 ,2CE

sub52152-17010

main52152-17011-B1iSW20199712

SILVER ME,2CE

sub52152-17010

main52152-17011-C0iSW20199311

BLACK,202

sub52152-17010

main52152-17011-D0iSW20199311

SUPER RED 2,3E5

sub52152-17010

main52152-17011-D1iSW20199712

ORANGE M.M.,3L1

sub52152-17010

main52152-17011-E0iSW20199712

BEIGE M.M.,4N3

sub52152-17010

main52152-17011-F0iSW20199311-199712

SUPER BRIGHT YELLOW,576

sub52152-17010

main52152-17011-G0iSW20199311-199712

DK.GREEN MICA,6M1

sub52152-17010

main52152-17011-J0iSW20199311-199606

STRONG BLUE M,8B6

sub52152-17010

main52152-17011-J1iSW20199606-199712

PURPLISH BLUE M.M.,8K9

sub52152-17010

main52152-17011-K0iSW20199712

DK.PURPLE MC.,943

sub52152-17010

52153BEXTENSION, REAR BUMPER, LH

main52153-17010iSW20198912-199311

main52153-17011-A0iSW20199311

SUPER WHITE 2,040

sub52153-17010

main52153-17011-B0iSW20199311-199606

BL.GRAY AMC,187

sub52153-17010

main52153-17011-B1iSW20199712

SILVER ME,2CE

sub52153-17010

main52153-17011-B1iSW20199606-199712

SILVER ME,199 ,2CE

sub52153-17010

main52153-17011-C0iSW20199311

BLACK,202

sub52153-17010

main52153-17011-D0iSW20199311

SUPER RED 2,3E5

sub52153-17010

main52153-17011-D1iSW20199712

ORANGE M.M.,3L1

sub52153-17010

main52153-17011-E0iSW20199712

BEIGE M.M.,4N3

sub52153-17010

main52153-17011-F0iSW20199311-199712

SUPER BRIGHT YELLOW,576

sub52153-17010

main52153-17011-G0iSW20199311-199712

DK.GREEN MICA,6M1

sub52153-17010

main52153-17011-J0iSW20199311-199606

STRONG BLUE M,8B6

sub52153-17010

main52153-17011-J1iSW20199606-199712

PURPLISH BLUE M.M.,8K9

sub52153-17010

main52153-17011-K0iSW20199712

DK.PURPLE MC.,943

sub52153-17010

52159COVER, REAR BUMPER

main52159-17904iSW20198912

52561RETAINER, REAR BUMPER, UPPER CENTER

main52561-17020iSW20198912

52562BRETAINER, REAR BUMPER, UPPER RH

main52562-17010iSW20198912

52563ARETAINER, REAR BUMPER, UPPER LH

main52563-17010iSW20198912

52565ARETAINER, REAR BUMPER, LOWER

main52565-17020iSW20198912-199704

52615ABSORBER, REAR BUMPER ENERGY

main52615-17030iSW20198912

52752MOULDING, REAR BUMPER SIDE, RH

main52752-17010iSW20198912-199311

main52752-17020-02iSW20..TWC..(G,W)198912-199112

DARK RED M,3J6

sub52752-17020

main52752-17020-03iSW20..G199112-199311

LIGHT SILVER M.,040

sub52752-17020

main52752-17020-03iSW20..TWC..(G,W)198912-199112

LIGHT SILVER M.,043

sub52752-17020

main52752-17020-04iSW20..TWC..(G,W)198912-199112

BLUE. M,8H3

sub52752-17020

main52752-17020-07iSW20..TWC..(G,W)198912-199112

DARK GREEN, M,742

sub52752-17020

main52752-17020-13iSW20..TWC..(G,W)198912-199311

DARK GRAY M,187 ,202

sub52752-17020

main52752-17020-A0iSW20..G199311

SUPER WHITE 2,040

sub52752-17020

main52752-17020-B2iSW20..G199311-199606

BL.GRAY AMC,187

sub52752-17020

main52752-17020-B3iSW20..G199606-199712

SILVER ME,199

sub52752-17020

main52752-17020-C0iSW20..G199606

BLACK,2CE ,202

sub52752-17020

main52752-17020-C0iSW20..G199311-199606

BLACK,202

sub52752-17020

main52752-17020-D0iSW20..G199112-199311

MAROON M.,3E5

sub52752-17020

main52752-17020-D1iSW20..G199311

SUPER RED 2,3E5

sub52752-17020

main52752-17020-D2iSW20..G199712

ORANGE M.M.,3L1

sub52752-17020

main52752-17020-E0iSW20..G199208-199311

GOLD MICA M.,567

sub52752-17020

main52752-17020-E1iSW20..G199712

BEIGE M.M.,4N3

sub52752-17020

main52752-17020-F0iSW20..G199311-199712

SUPER BRIGHT YELLOW,576

sub52752-17020

main52752-17020-G0iSW20..G199311-199712

DK.GREEN MICA,6M1

sub52752-17020

main52752-17020-H0iSW20..G199112-199311

TURQUOISE MICA M.,746

sub52752-17020

main52752-17020-J0iSW20..G199112-199311

BLUE M,8J2

sub52752-17020

main52752-17020-J1iSW20..G199311-199606

STRONG BLUE M,8B6

sub52752-17020

main52752-17020-J2iSW20..G199606-199712

PURPLISH BLUE M.M.,8K9

sub52752-17020

main52752-17020-K0iSW20..G199712

DK.PURPLE MC.,943

sub52752-17020

52753MOULDING, REAR BUMPER SIDE, LH

main52753-17010iSW20..ARL;SW20..HTWC198912-199311

main52753-17020-02iSW20..TWC..(G,W)198912-199112

SUPER RED 3,3J6

sub52753-17020

main52753-17020-03iSW20..G199112-199311

LIGHT SILVER M.,040

sub52753-17020

main52753-17020-03iSW20..TWC..(G,W)198912-199112

LIGHT SILVER M.,043

sub52753-17020

main52753-17020-04iSW20..TWC..(G,W)198912-199112

BLUE,M,8H3

sub52753-17020

main52753-17020-07iSW20..TWC..(G,W)198912-199112

DARK TURQUOISE MICA,742

sub52753-17020

main52753-17020-13iSW20..TWC..(G,W)198912-199311

DARK GRAY M,187 ,202

sub52753-17020

main52753-17020-A0iSW20..G199311

SUPER WHITE 2,040

sub52753-17020

main52753-17020-B2iSW20..G199311-199606

BL.GRAY AMC,187

sub52753-17020

main52753-17020-B3iSW20..G199606-199712

SILVER ME,199

sub52753-17020

main52753-17020-C0iSW20..G199606

BLACK,2CE ,202

sub52753-17020

main52753-17020-C0iSW20..G199311-199606

BLACK,202

sub52753-17020

main52753-17020-D0iSW20..G199112-199311

MAROON M.,3E5

sub52753-17020

main52753-17020-D1iSW20..G199311

SUPER RED 2,3E5

sub52753-17020

main52753-17020-D2iSW20..G199712

ORANGE M.M.,3L1

sub52753-17020

main52753-17020-E0iSW20..G199208-199311

GOLD MICA M.,567

sub52753-17020

main52753-17020-E1iSW20..G199712

BEIGE M.M.,4N3

sub52753-17020

main52753-17020-F0iSW20..G199311-199712

SUPER BRIGHT YELLOW,576

sub52753-17020

main52753-17020-G0iSW20..G199311-199712

DK.GREEN MICA,6M1

sub52753-17020

main52753-17020-H0iSW20..G199112-199311

TURQUOISE MICA M.,746

sub52753-17020

main52753-17020-J0iSW20..G199112-199311

BLUE M.,8J2

sub52753-17020

main52753-17020-J1iSW20..G199311-199606

STRONG BLUE M,8B6

sub52753-17020

main52753-17020-J2iSW20..G199606-199712

PURPLISH BLUE M.M.,8K9

sub52753-17020

main52753-17020-K0iSW20..G199712

DK.PURPLE MC.,943

sub52753-17020

9011906388

main90119-06388

9011910085

main90119-10085

9016460027

main90164-60027

9016740027

main90167-40027

9016860015

main90168-60015

9017906132

main90179-06132

9018904102

main90189-04102

9018906029

main90189-06029

9046709093

main90467-09093

20 parts on this diagram · 1 diagram in section
