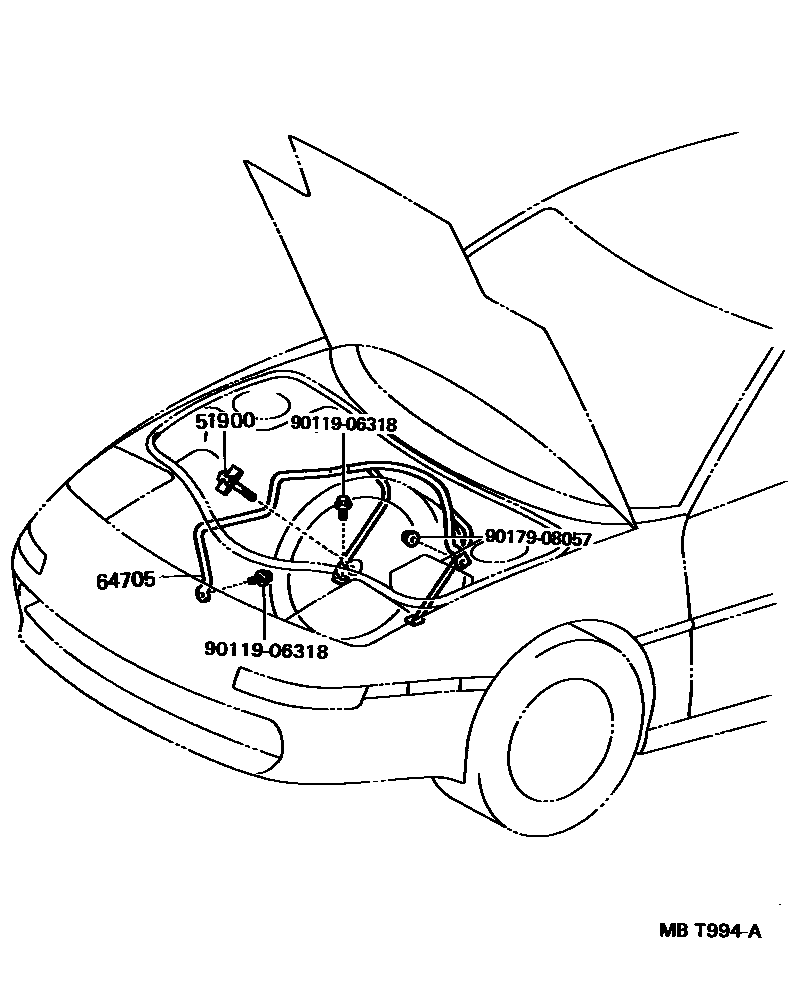

SPARE WHEEL CARRIER

0001 1 0002 1

51900CARRIER ASSY, SPARE WHEEL

main51900-17020iSW20198912-199111

main51900-17021iSW20..RHD..G199112-199311

HONGKONG PACKAGE

main51900-17021iSW20..LHD..G;SW20..TWC..(ARL,W)199111-199311

main51900-17021iSW20..LHD199311

*FRG

main51900-17021iSW20..RHD199712

HONG KONG SPEC

main51900-17030iSW20..RHD..TWC..W199106-199112

UNITED KINGDOM SPEC

main51900-17030iSW20..RHD..TWC..W199106-199112

L=93

main51900-17030iSW20..LHD199112

W(SPARE TIRE)

64705GUARD SUB-ASSY, SPARE WHEEL

main64705-17010iSW20..RHD198912-199112

main64705-17020iSW20..LHD198912-199112

main64705-17030iSW20..RHD199112

main64705-17040iSW20..LHD199112

9011906318

main90119-06318

9017908057

main90179-08057

4 parts on this diagram · 2 diagrams in section
