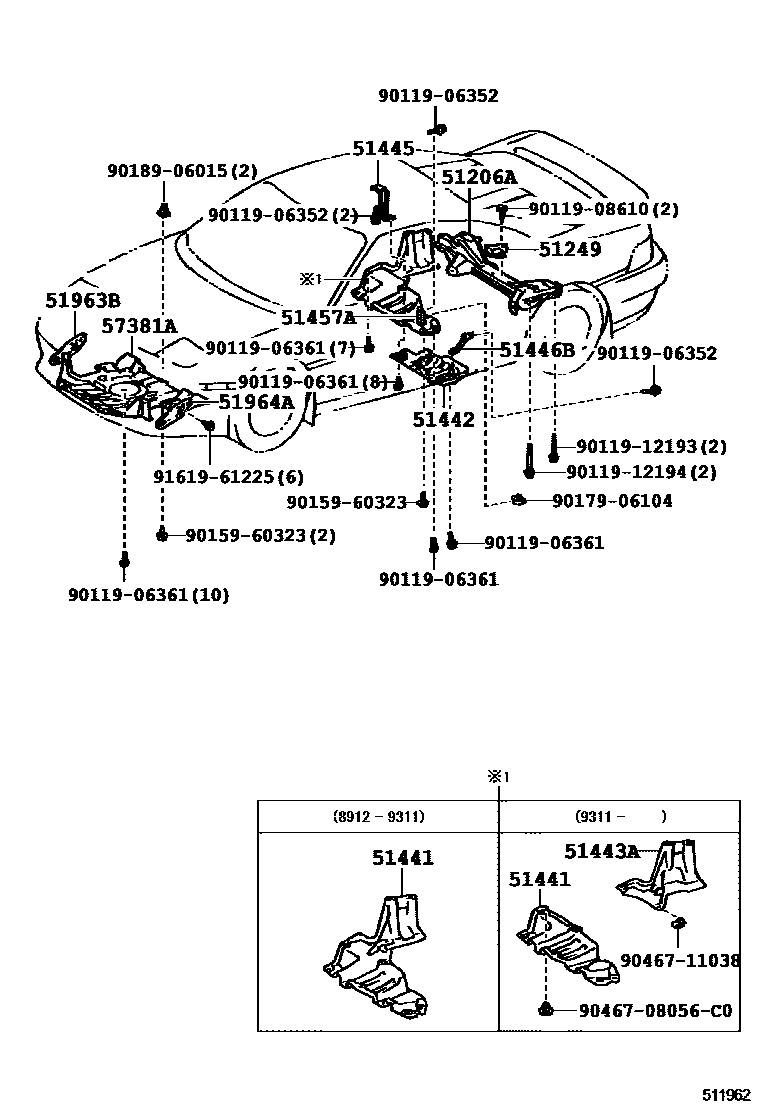

SUSPENSION CROSSMEMBER & UNDER COVER

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-17010iSW20198912-199112

main51206-17020iSW20199112

51249DAMPER, REAR SUSPENSION MEMBER

main51249-17010iSW20198912

51441COVER, ENGINE UNDER, NO.1

main51441-17030iSW20198912-199311

main51441-17040iSW20199311

51442COVER, ENGINE UNDER, NO.2

main51442-17010iSW20..5F198912

main51442-17020iSW20..4FC198912-199112

sub51442-17010

51443ACOVER, ENGINE UNDER, REAR

main51443-17020iSW20199311

51445BRACKET, ENGINE UNDER COVER

main51445-17010iSW20198912

51446BBRACKET, ENGINE UNDER COVER, NO.2

main51446-17010iSW20198912

51457ABRACKET, ENGINE UNDER COVER, NO.3

main51457-17010iSW20198912

51963BHOOK, TRANSPORT, FRONT RH

main51963-17030iSW20198912

51964AHOOK, TRANSPORT, FRONT LH

main51964-17020iSW20198912

57381ACOVER, FRONT LUGGAGE UNDER

main57381-17010iSW20198912

9011906352

main90119-06352

9011906361

main90119-06361

9011908610

main90119-08610

9011912193

main90119-12193

9011912194

main90119-12194

9015960323

main90159-60323

9017906104

main90179-06104

9018906015

main90189-06015

9046708056C0

main90467-08056C0

9046711038

main90467-11038

9161961225

main91619-61225

22 parts on this diagram · 1 diagram in section
