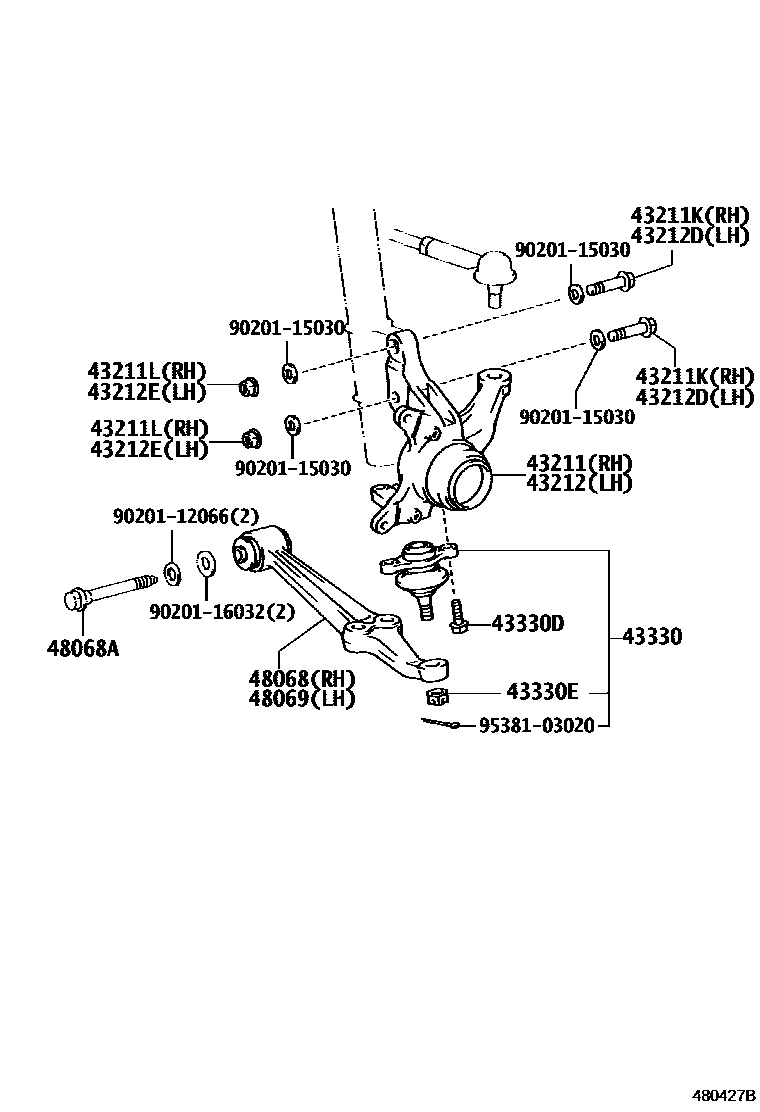

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-17030iSW20198912-199112

main43211-17040iSW20198912-199112

W(ABS)

main43211-17070iSW20199112-199712

main43211-17080iSW20199112

W(ABS)

main43211-17090iSW20199112-199712

W(POWER STEERING)

main43211-17100iSW20..G,W199112-199201

W(ABS & POWER STEERING)

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-15001iSW20..ARL198912-199311

OD=15.0

main90901-05001iSW20199311

OD=15.0

43211LNUT (FOR STEERING KNUCKLE RH)

main90179-15001iSW20198912-199112

main90179-15005iSW20199112

sub90179-15006

43212KNUCKLE, STEERING, LH

main43212-17030iSW20198912-199112

main43212-17040iSW20198912-199112

W(ABS)

main43212-17070iSW20199112-199712

main43212-17080iSW20199112

W(ABS)

main43212-17090iSW20199112-199712

W(POWER STEERING)

main43212-17100iSW20..G,W199112-199201

W(ABS & POWER STEERING)

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-15001iSW20198912-199311

OD=15.0

main90901-05001iSW20199311

OD=15.0

43212ENUT (FOR STEERING KNUCKLE LH)

main90179-15001iSW20198912-199112

main90179-15005iSW20199112

sub90179-15006

43330JOINT ASSY, LOWER BALL, FRONT

main43330-19025iSW20198912

43330DBOLT (FOR FRONT LOWER BALL JOINT)

main90105-10129iSW20198912

43330ENUT, CASTLE (FOR FRONT LOWER BALL JOINT SETTING)

main94146-71200iSW20198912

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-17020iSW20198912-199112

main48068-17030iSW20199112

48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)

main90101-12168iSW20198912

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48068-17030iSW20199112

main48069-17020iSW20198912-199112

9020112066

main90201-12066

9020115030

main90201-15030

9020116032

main90201-16032

9538103020

main95381-03020

16 parts on this diagram · 1 diagram in section
