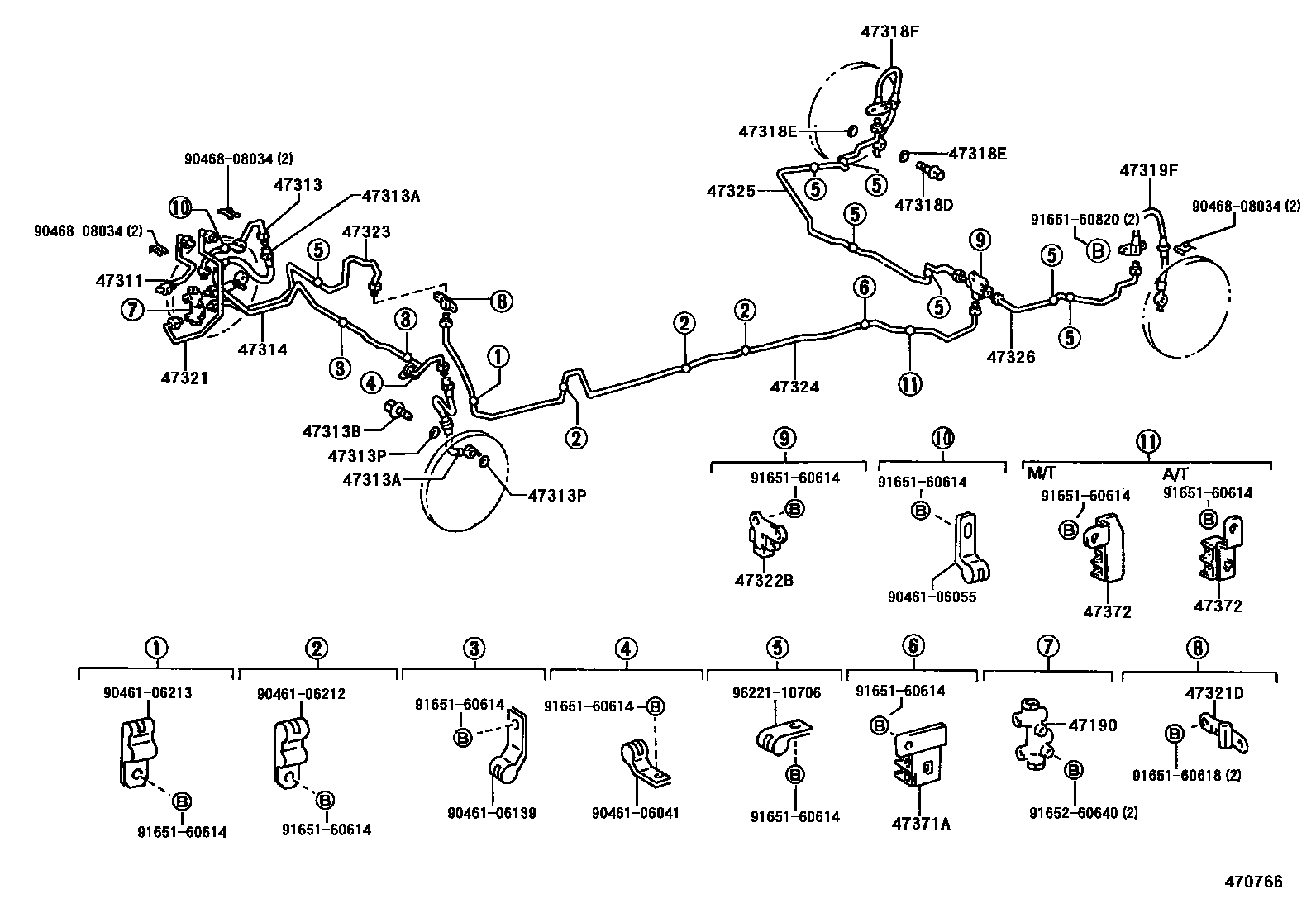

BRAKE TUBE & CLAMP

0001 1 0002 1W(ABS) 0003 1 0004 1W(ABS) 0005 1 0006 1 0007 1W(ABS) 0008 1W(ABS) 0009 1 0010 1

47190VALVE ASSY, PROPORTIONING & BY-PASS

main47190-14060iSW20..ARL199203-199311

W(ABS)

main47190-17020iSW20..ARL199203-199311

main47190-17030iSW20..G,W198912-199712

main47190-17040iSW20..ARL198912-199112

main47190-17050iSW20..G,W198912-199908

W(ABS)

main47190-17060iSW20..ARL198912-199112

W(ABS)

main47190-17100iSW20..ARL199311-199908

W(ABS)

main47190-17110iSW20..ARL199311-199712

47311TUBE, FRONT BRAKE, NO.1

main47311-17080iSW20..RHD198912-199712

main47311-17090iSW20..LHD198912-199712

main47311-17100iSW20..LHD199112-199311

main47311-17110iSW20..RHD199112-199311

main47311-17120iSW20..RHD198912-199311

W(ABS)

main47311-17130iSW20..LHD198912-199908

W(ABS)

main47311-17140iSW20..RHD199311-199908

W(ABS)

47313TUBE, FRONT BRAKE, NO.3

main47313-17050iSW20..RHD198912-199712

main47313-17060iSW20..LHD198912-199712

main47313-17070iSW20..RHD198912-199712

W(ABS)

main47313-17080iSW20..LHD198912-199712

W(ABS)

main47313-17130iSW20..RHD199712

main47313-17140iSW20..LHD199712

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02609iSW20198912-199112

main90947-02692iSW20199112-199311

sub90947-02885

main90947-02791iSW20199311-199606

sub90947-02885

main90947-02885iSW20199606

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015iSW20198912

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main90430-10074iSW20198912

47314TUBE, FRONT BRAKE, NO.4

main47314-17060iSW20..RHD198912-199712

main47314-17070iSW20..LHD198912-199712

main47314-17080iSW20..RHD198912-199712

W(ABS)

main47314-17090iSW20..LHD198912-199712

W(ABS)

main47314-17140iSW20..RHD199712

main47314-17150iSW20..LHD199712

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10015iSW20198912

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main90430-10074iSW20198912

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02610iSW20198912-199112

sub90947-02886

main90947-02693iSW20199112-199606

sub90947-02886

main90947-02886iSW20199606

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02610iSW20198912-199112

sub90947-02886

main90947-02693iSW20199112-199606

sub90947-02886

main90947-02886iSW20199606

47321TUBE, REAR BRAKE, NO.1

main47321-17080iSW20..RHD198912-199712

main47321-17090iSW20..LHD198912-199712

main47321-17100iSW20..LHD199112-199311

main47321-17110iSW20..RHD199112-199311

main47321-17120iSW20..RHD198912-199311

W(ABS)

main47321-17130iSW20..LHD198912-199908

W(ABS)

main47321-17150iSW20..RHD199311-199908

W(ABS)

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90412-12033iSW20198912

47322TUBE, REAR BRAKE, NO.2

main47322-17050iSW20..RHD198912-199712

main47322-17060iSW20..LHD198912-199712

main47322-17070iSW20..RHD199112-199311

main47322-17080iSW20..LHD199112-199311

main47322-17110iSW20..RHD199712

main47322-17120iSW20..LHD199712

47322BWAY, NO.2(FOR REAR BRAKE TUBE)

main90412-10195iSW20199712

main90413-10250iSW20198912-199712

47323TUBE, REAR BRAKE, NO.3

main47323-17020iSW20..RHD198912-199712

main47323-17030iSW20..LHD198912-199712

main47323-17040iSW20..RHD198912-199712

W(ABS)

main47323-17050iSW20..LHD198912-199712

W(ABS)

main47323-17080iSW20..RHD199712

main47323-17090iSW20..LHD199712

47324TUBE, REAR BRAKE, NO.4

main47324-17020iSW20198912-199112

main47324-17030iSW20199112

47325TUBE, REAR BRAKE, NO.5

main47325-17020iSW20198912

47326TUBE, REAR BRAKE, NO.6

main47326-17010iSW20198912-199712

main47326-17020iSW20199712

47371ACLAMP, BRAKE TUBE, NO.1

main47371-17010iSW20199112

main47371-30090iSW20198912-199112

47372CLAMP, BRAKE TUBE, NO.2

main47371-17020iSW20..RHD199712

FRONT

main47371-17040iSW20199112

REAR

9046106041

main90461-06041

9046106055

main90461-06055

9046106139

main90461-06139

9046106212

main90461-06212

9046106213

main90461-06213

9046808034

main90468-08034

9165160614

main91651-60614

9165160618

main91651-60618

9165160820

main91651-60820

9165260640

main91652-60640

9622110706

main96221-10706
