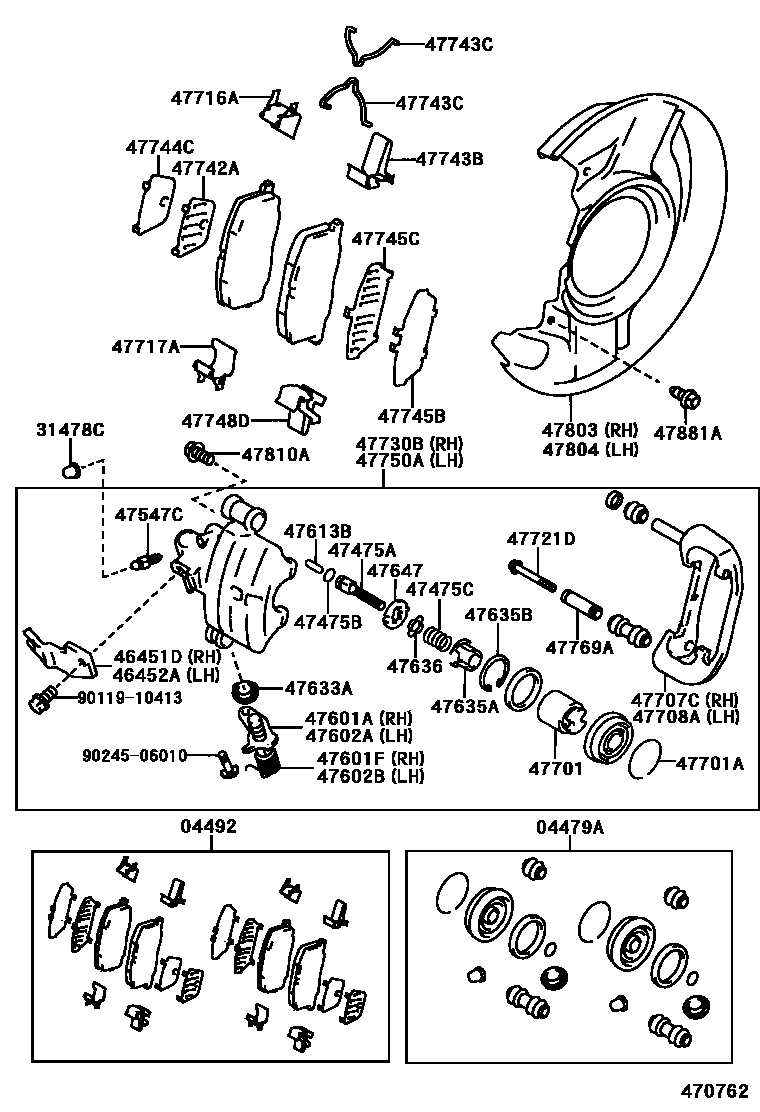

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-17030iSW20198912-199112

main04479-17040iSW20199112

04492PAD KIT, DISC BRAKE, REAR

main04492-17040iSW20198912-199112

sub04466-17030

main04492-17050iSW20199112-199304

sub04492-17051

main04492-17051iSW20199304-199505

sub04466-17040

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iSW20198912

46451DBRACKET, PARKING BRAKE CABLE SUPPORT, RH

main46451-17040iSW20198912-199112

sub46451-17050

main46451-17050iSW20199112

46452ABRACKET, PARKING BRAKE CABLE SUPPORT, LH

main46452-17040iSW20198912-199112

sub46452-17050

main46452-17050iSW20199112

47475ABOLT, PAD ADJUSTING(FOR REAR DISC BRAKE)

main47475-12030iSW20198912

47475BRING, O(FOR REAR DISC BRAKE PAD ADJUSTING BOLT)

main90301-09007iSW20198912

47475CSPRING, COMPRESSION(FOR PAD ADJUSTING BOLT)

main90501-23051iSW20198912

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iSW20198912-199112

main47547-22020iSW20199112

47601ACRANK SUB-ASSY, PARKING BRAKE, RH

main47601-17011iSW20198912

47601FSPRING, TORSION(FOR PARKING BRAKE CRANK RH)

main90508-32020iSW20198912

47602ACRANK SUB-ASSY, PARKING BRAKE, LH

main47602-17011iSW20198912

47602BSPRING, TORSION(FOR PARKING BRAKE CRANK LH)

main90508-32021iSW20198912

47613BSTRUT, PARKING BRAKE(FOR REAR BRAKE)

main47613-12020iSW20198912

47633ABOOT, PARKING BRAKE CRANK

main47633-12010iSW20198912

47635ARETAINER, ADJUSTING BOLT SPRING(FOR REAR DISC BRAKE)

main47635-12010iSW20198912

47635BRING(FOR REAR BRAKE ADJUSTING BOLT SPRING RETAINER)

main90521-37006iSW20198912

47636PLATE, ADJUSTING BOLT SPRING(FOR REAR DISC BRAKE)

main47636-12010iSW20198912

47647STOPPER, AUTOMATIC ADJUST BOLT(FOR REAR DISC BRAKE)

main47647-12010iSW20198912

47701PISTON SUB-ASSY, REAR DISC BRAKE

main47701-17020iSW20198912-199112

main47701-17030iSW20199112

47701ARING, SET(FOR DISC BRAKE PISTON, REAR)

main90520-52005iSW20199506

main90522-49001iSW20198912-199506

47707CPLATE SUB-ASSY, DISC BRAKE TORQUE, REAR RH

main47707-17030iSW20198912-199112

main47707-17040iSW20199112

47708APLATE SUB-ASSY, DISC BRAKE TORQUE, REAR LH

main47708-17030iSW20198912-199112

main47708-17040iSW20199112

47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47716-17030iSW20198912

47717APLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)

main47717-17020iSW20198912

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90119-08431iSW20198912

*8-1.25PX62-20

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-17100iSW20198912-199112

main47730-17130iSW20199112

47742ASHIM, ANTI-SQUEAL, NO.3(FOR REAR DISC BRAKE)

main47742-17030iSW20198912

47743BSPRING, ANTI-RATTLE, NO.2(FOR REAR DISC BRAKE)

main47743-14040iSW20198912

47743CSPRING, ANTI-SQUEAL(FOR REAR DISC BRAKE)

main47743-17030iSW20199304

47744CSHIM, ANTI-SQUEAL, NO.1(FOR REAR DISC BRAKE)

main47745-17040iSW20198912

47745BSHIM, ANTI-SQUEAL, NO.2(FOR REAR DISC BRAKE)

main47745-17050iSW20198912

47745CSHIM, ANTI-SQUEAL, NO.3(FOR REAR DISC BRAKE)

main47742-17040iSW20198912

47748DSPRING, ANTI-RATTLE, NO.1(FOR REAR DISC BRAKE)

main47748-14050iSW20198912

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-17100iSW20198912-199112

main47750-17130iSW20199112

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-28010iSW20198912

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47881-17040iSW20198912-199112

main47881-17050iSW20199112

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47881-17040iSW20198912-199112

main47882-17050iSW20199112

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main91619-B1225iSW20198912

47881ABOLT(FOR DUST COVER)

main90119-06227iSW20198912

9011910413

main90119-10413

9024506010

main90245-06010

42 parts on this diagram · 2 diagrams in section
