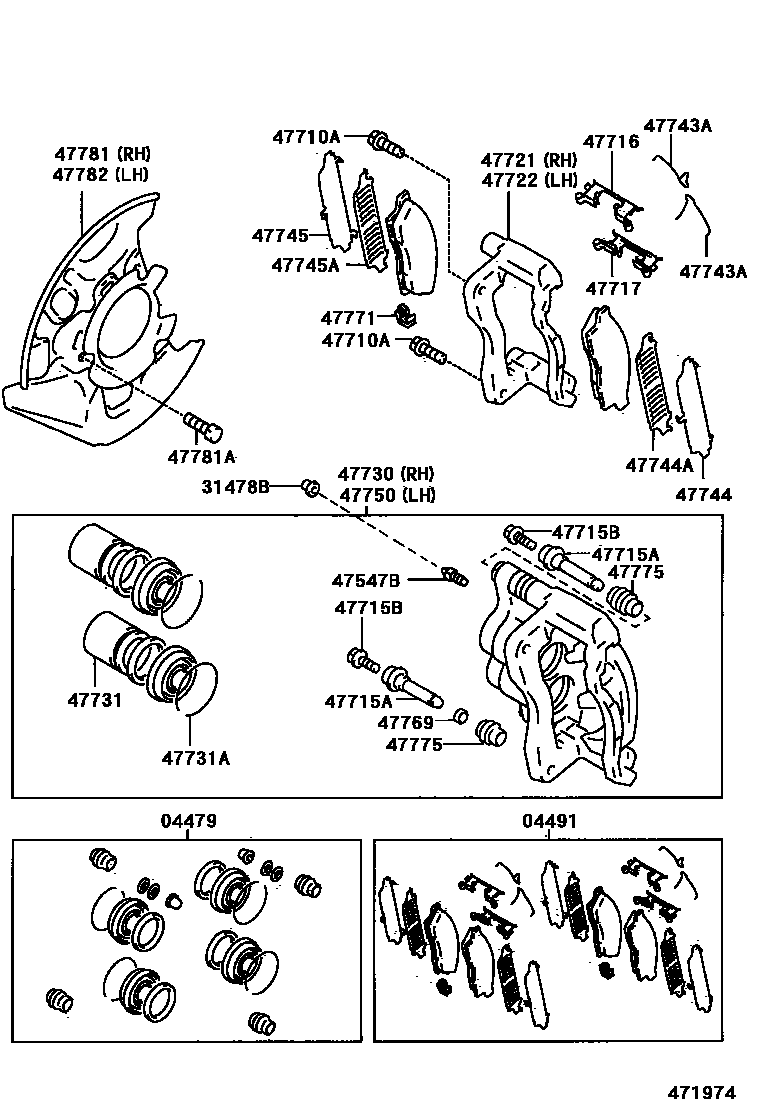

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-17020iSW20198912-199908

04491PAD KIT, DISC BRAKE, FRONT

main04491-17110iSW20..G,W198912-199112

sub04465-17030

main04491-17120iSW20..ARL198912-199112

sub04465-17060

main04491-17160iSW20..ARL199112-199505

sub04465-12160

main04491-17170iSW20..G,W199112-199505

sub04465-17050

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iSW20198912-199908

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iSW20198912-199908

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12040iSW20198912-199908

*12-1.25PX25.8-19.5

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-50010iSW20198912-199208

main47715-50010iSW20199208-199908

SUB PIN SIDE

main47715-50030iSW20199208-199908

MAIN PIN SIDE

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90105-08164iSW20198912-199908

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-17020iSW20198912-199112

main47716-33010iSW20199112-199908

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47716-17020iSW20198912-199112

main47716-33020iSW20199112-199908

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-17040iSW20198912-199112

main47721-17050iSW20199112-199908

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-17010iSW20198912-199112

main47722-17020iSW20199112-199908

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-17090iSW20198912-199112

main47730-17140iSW20199112-199908

47731PISTON, FRONT DISC BRAKE

main47731-17020iSW20198912-199908

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-43003iSW20198912-199908

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-17010iSW20198912-199010

sub47743-32030

main47743-17020iSW20199112-199908

main47743-32030iSW20199010-199112

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47745-12060iSW20199112-199908

main47745-17030iSW20198912-199112

47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)

main47742-12030iSW20199112-199908

main47742-17020iSW20198912-199112

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-12060iSW20199112-199908

main47745-17030iSW20198912-199112

47745ASHIM, ANTI-SQUEAL, NO.4(FOR FRONT DISC BRAKE)

main47742-12030iSW20199112-199908

main47742-17020iSW20198912-199112

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-17090iSW20198912-199112

main47750-17140iSW20199112-199908

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010iSW20198912-199908

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-50010iSW20198912-199908

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-50010iSW20198912-199908

47781COVER, DISC BRAKE DUST, FRONT RH

main47703-17020iSW20199112

main47781-17030iSW20198912-199112

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06227iSW20198912

47782COVER, DISC BRAKE DUST, FRONT LH

main47704-17020iSW20199112

main47782-17010iSW20198912-199112

26 parts on this diagram · 3 diagrams in section
