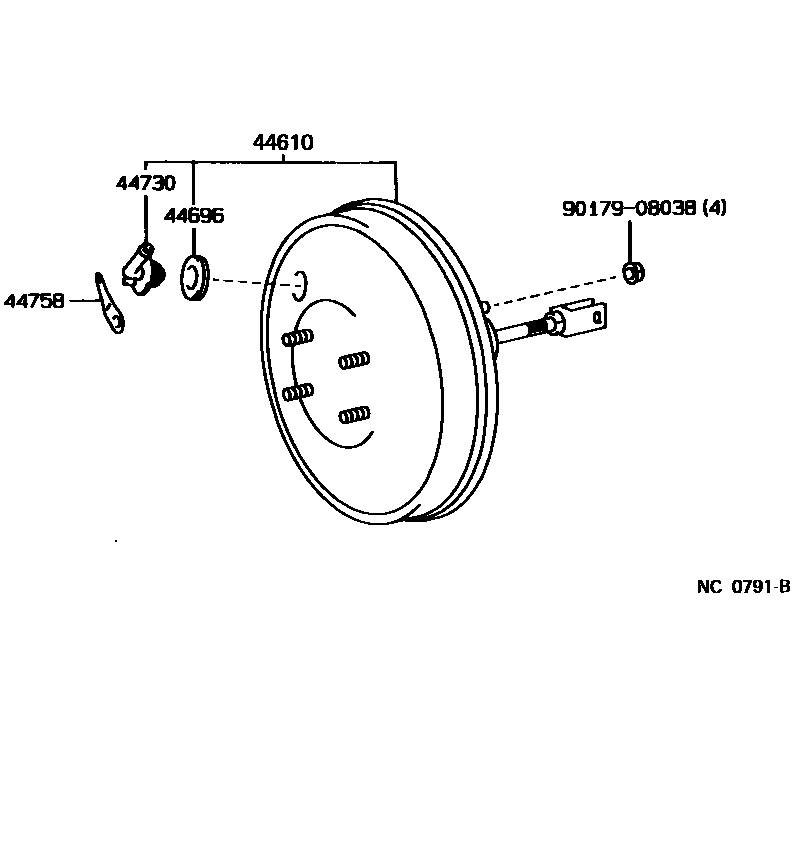

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1

44610BOOSTER ASSY, BRAKE

main44610-17180iSW20..RHD¥46,700198912-199112

main44610-17200iSW20..LHD¥46,700198912-199112

main44610-17230iSW20..RHD¥62,400199112-199311

W(*66)

main44610-17250iSW20..LHD¥62,400199112-199311

W(*66)

main44610-17280iSW20..RHD¥62,400199112-199311

main44610-17290iSW20..LHD¥62,400199112-199311

main44610-17300iSW20..RHD¥45,300199311-199712

main44610-17310iSW20..LHD¥45,300199311-199712

main44610-17320iSW20..RHD¥45,300199712-199908

main44610-17330iSW20..LHD¥45,300199712-199908

44696GROMMET, CHECK VALVE

main90480-24439iSW20..LHD¥390198912-199112

main90480-24517iSW20..RHD¥580198912-199112

sub90480-24015¥130

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-14050iSW20..LHD¥1,380198912-199112

main44730-14060iSW20..RHD¥2,190198912-199112

sub44730-28010¥1,360

sub90480-24015¥130

main44730-22120iSW20¥1,360199112

44758BRACKET, VACUUM CHECK VALVE

main44758-17060iSW20¥300198912-199112

9017908038

main90179-08038¥130

5 parts on this diagram · 5 diagrams in section
