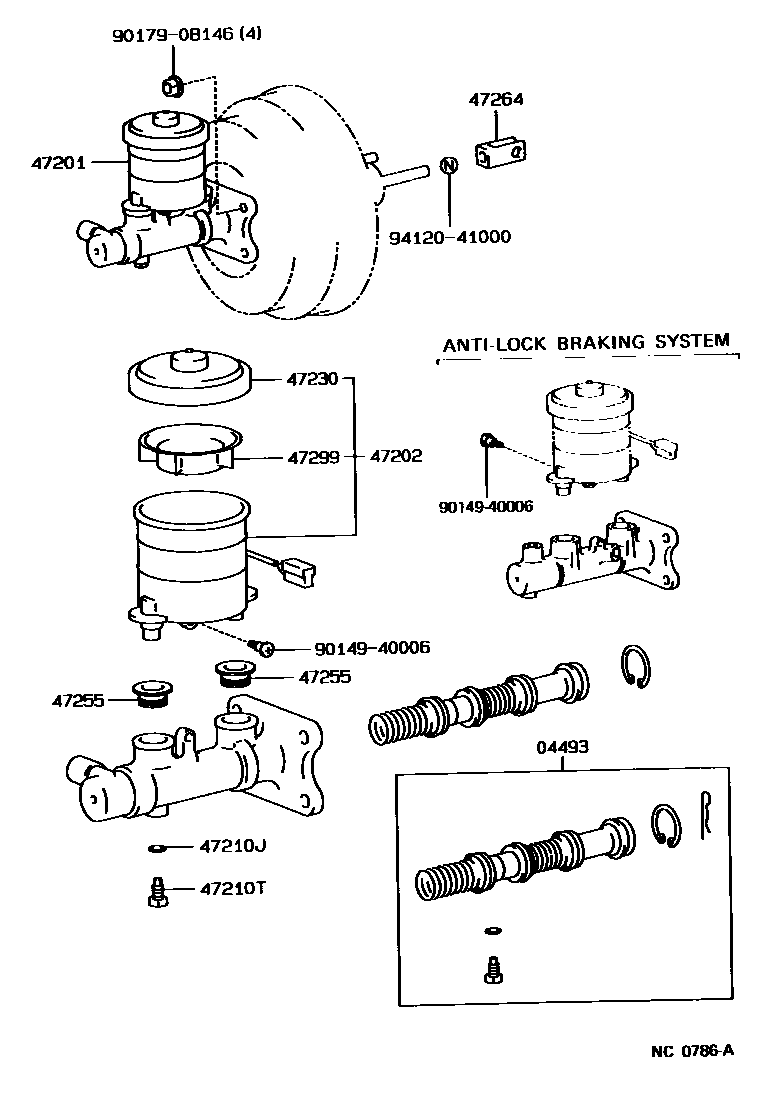

BRAKE MASTER CYLINDER

0001 1 0002 1 0003 1 0004 1

04493CYLINDER KIT, BRAKE MASTER

main04493-17030iSW20198912-199111

main04493-17040iSW20198912-199112

W(*66)

main04493-17050iSW20199111-199112

main04493-17060iSW20199112-199712

main04493-17070iSW20199112-199908

W(*66)

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-17050iSW20..RHD198912-199112

main47201-17070iSW20..LHD198912-199112

main47201-17080iSW20..RHD198912-199112

W(*66)

main47201-17090iSW20..LHD198912-199112

W(*66)

main47201-17130iSW20..RHD199112-199311

main47201-17140iSW20..LHD199112-199311

main47201-17160iSW20..LHD199112-199311

W(*66)

main47201-17180iSW20..RHD199112-199311

W(*66)

main47201-17190iSW20..RHD..G199311-199908

W(*66)

main47201-17200iSW20..LHD199311-199908

W(*66)

main47201-17210iSW20..RHD..G199311-199712

main47201-17220iSW20..LHD199311-199712

main47201-17230iSW20..ARL199311-199712

main47201-17250iSW20..ARL199311-199908

W(*66)

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47202-12390iSW20..ARL199311-199506

sub47220-32060

main47202-17040iSW20..LHD198912-199112

main47220-16010iSW20..RHD198912-199112

main47220-17020iSW20..RHD199112-199311

main47220-17030iSW20..LHD199112-199311

main47220-17050iSW20..RHD..G199311

main47220-32060iSW20..ARL199506

sub47220-12180

main47220-33040iSW20..LHD199311

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iSW20198912

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iSW20198912

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-12040iSW20..ARL199311-199712

main47230-16010iSW20..RHD198912-199112

main47230-20100iSW20199112-199311

sub47230-47090

main47230-20140iSW20..G199311-199506

main47230-20140iSW20..RHD..G199506

W(*66)

main84460-12070iSW20..LHD198912-199112

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iSW20..ARL;SW20..LHD198912-199712

main47255-16010iSW20..RHD..G199506

W(*66)

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-16020iSW20199112

main47264-20040iSW20198912-199112

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-16010iSW20..RHD198912-199112

main47299-24010iSW20199112

main47299-32010iSW20..LHD198912-199112

9014940006

main90149-40006

9017908146

main90179-08146

9412041000

main94120-41000

12 parts on this diagram · 4 diagrams in section
