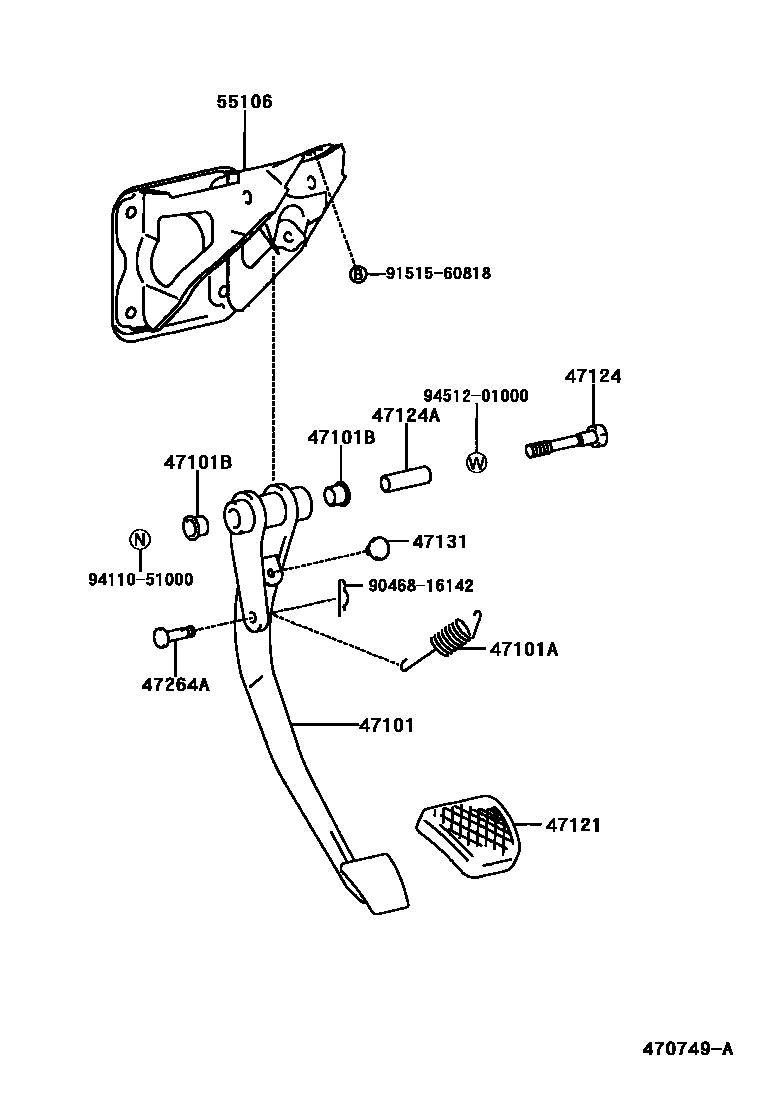

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-17070iSW20..LHD198912

main47101-17090iSW20..RHD..5F198912-199311

sub47101-17091

main47101-17091iSW20..RHD199311

main47101-17100iSW20..4FC198912-199112

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-12011iSW20198912

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iSW20198912

47121PAD, BRAKE PEDAL

main31321-12030iSW20..5F198912

main47121-12020iSW20..4FC198912-199112

47124SHAFT, BRAKE PEDAL

main90101-10015iSW20..LHD198912

main91121-51085iSW20..RHD198912

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iSW20..LHD198912

main90387-10082iSW20..RHD198912

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06032iSW20198912-199112

sub90541-06036

main90541-06036iSW20199112

47264APIN(FOR PUSH ROD)

main90249-08051iSW20198912

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-17030iSW20..RHD198912

main55106-17040iSW20..LHD198912

9046816142

main90468-16142

9151560818

main91515-60818

9411051000

main94110-51000

9451201000

main94512-01000

13 parts on this diagram · 1 diagram in section
