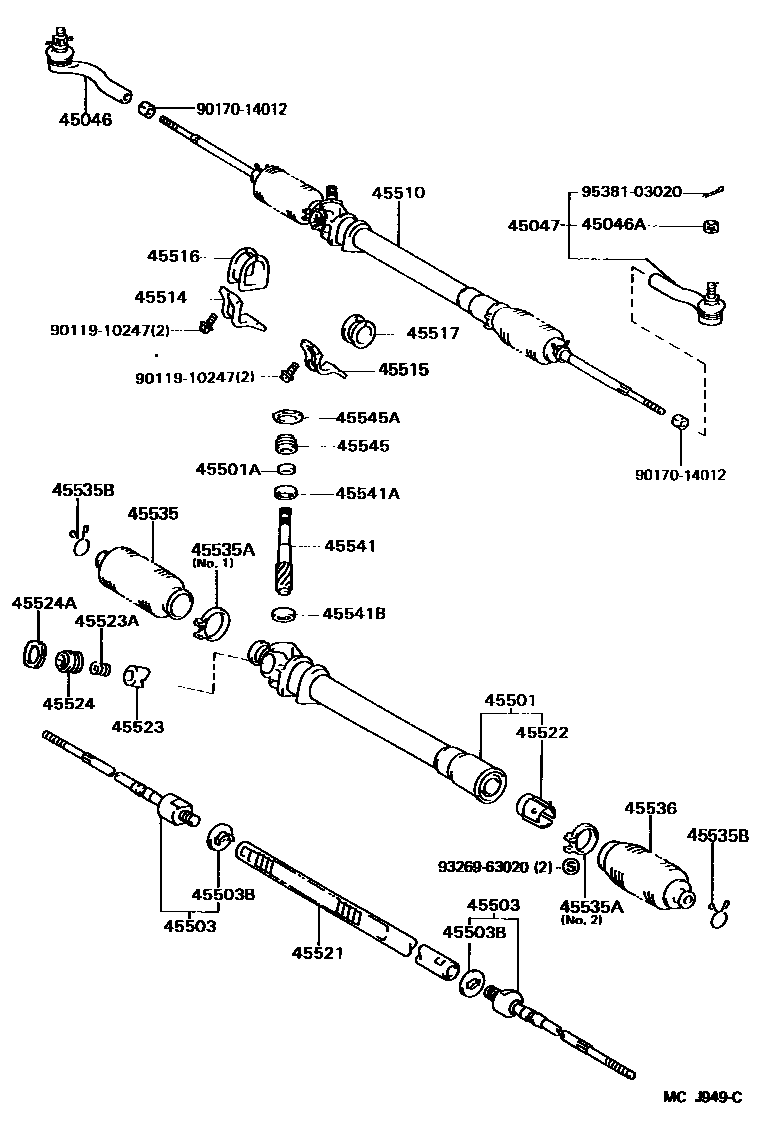

FRONT STEERING GEAR & LINK
45046END SUB-ASSY, TIE ROD, RH
45046ANUT, CASTLE(FOR TIE ROD END)
45047END SUB-ASSY, TIE ROD, LH
45501HOUSING SUB-ASSY, STEERING RACK
45501ASEAL, TYPE T OIL(FOR STEERING RACK HOUSING)
45503END SUB-ASSY, STEERING RACK
W(POWER STEERING)
45503BWASHER, CLAW(FOR STEERING RACK END)
OD=33.7-34.0,W(POWER STEERING)
45510GEAR ASSY, STEERING
45514BRACKET, STEERING RACK HOUSING, NO.1
45515BRACKET, STEERING RACK HOUSING, NO.2
45516GROMMET, STEERING RACK HOUSING, NO.1
45517GROMMET, STEERING RACK HOUSING, NO.2
45521RACK, STEERING
45523GUIDE, RACK(FOR STEERING GEAR)
W(POWER STEERING)
45523ASPRING(FOR STEERING GEAR RACK GUIDE)
W(POWER STEERING)
45524CAP, STEERING RACK GUIDE SPRING
45524ANUT(FOR STEERING RACK GUIDE SPRING CAP)
45535BOOT, STEERING RACK, NO.1
W(POWER STEERING)
45535ACLAMP(FOR STEERING RACK BOOT)
NO.2
W(POWER STEERING)
NO.1
45535BCLIP(FOR STEERING RACK BOOT)
45536BOOT, STEERING RACK, NO.2
45541PINION, STEERING
45541ABEARING, RADIAL BALL(FOR STEERING PINION UPPER)
45541BBEARING, RADIAL BALL(FOR STEERING PINION LOWER)
45545SCREW, PINION BEARING ADJUSTING
45545ANUT(FOR PINION BEARING ADJUSTING SCREW)
9011910247
main90119-10247
9017014012
main90170-14012
9326963020
main93269-63020
9538103020
main95381-03020
31 parts on this diagram · 8 diagrams in section
