POWER STEERING TUBE

0001 1 0002 1

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iSW20..TWC199112

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-17010iSW20..RHD..TWC199112

main44348-17020iSW20..LHD199112

44410TUBE ASSY, PRESSURE FEED

main44410-17010iSW20..RHD..TWC199112

main44410-17020iSW20..LHD199112

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16008iSW20..TWC199112

44411HOSE, PRESSURE FEED

main44411-17010iSW20..RHD..TWC199112

main44411-17020iSW20..LHD199112

44412HOSE, RETURN

main44412-17010iSW20..TWC199112

44417TUBE, RETURN, NO.2

main44417-17010iSW20..RHD..TWC199112

main44417-17020iSW20..LHD199112

44420ATUBE ASSY, RETURN

main44420-17010iSW20..TWC199112

44428HOSE, RETURN, NO.2

main44428-17010iSW20..TWC199112

44444STAY, PUMP, REAR

main44444-17010iSW20..RHD..TWC199112

main44444-17020iSW20..LHD199112

9011906089

main90119-06089

9011910631

main90119-10631

9030107009

main90301-07009

9038510024

main90385-10024

9038513005

main90385-13005

9046716008

main90467-16008

9046721005

main90467-21005

9056010069

main90560-10069

9056108041

main90561-08041

9165160835

main91651-60835

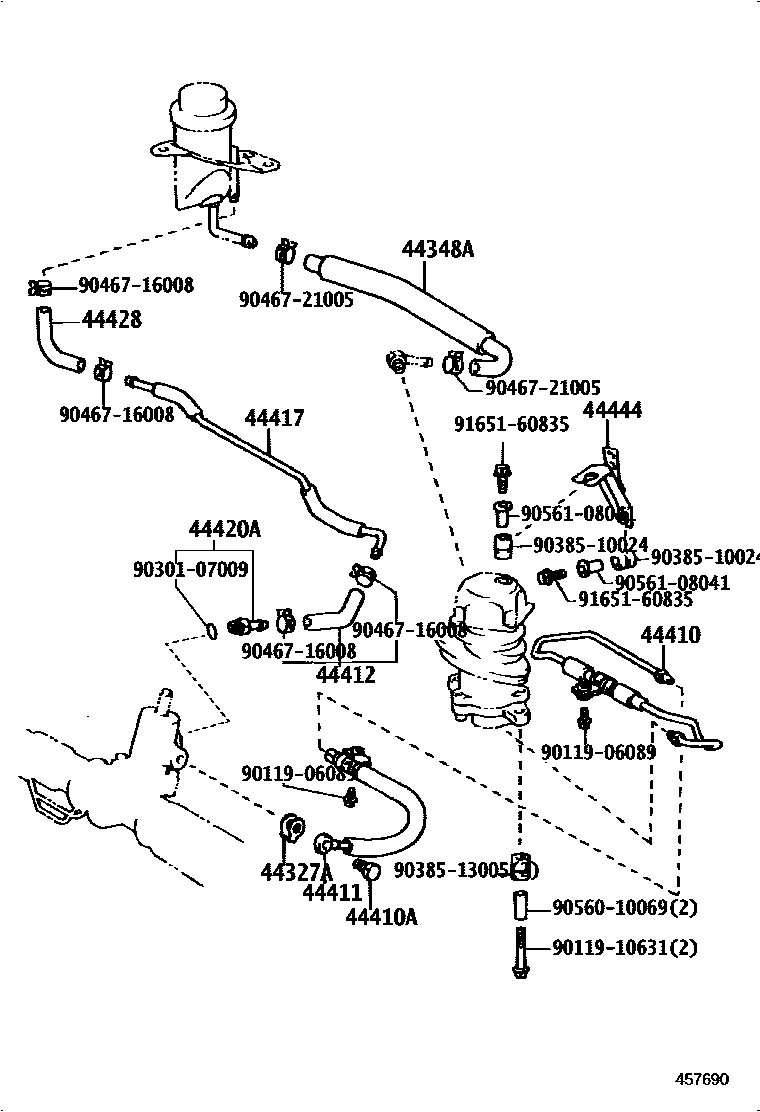

20 parts on this diagram · 2 diagrams in section
